Setting Up IP Multicast Forwarding

This chapter covers these topics:
Configuring multicast forwarding
Forwarding from a MBONE router on a WAN link
Administering multicast interfaces

Configuring multicast forwarding

The multicast backbone (MBONE) is a virtual network layered on top of the Internet to support IP multicast routing across point-to-point links. It is used for transmitting audio and video on the Internet in real-time, because multicasting is a much cheaper and faster way to communicate the same information to multiple hosts.

When using the MBONE, the MAX looks like a multicast client. It responds as a client to IGMP (Internet Group Membership Protocol) packets it receives from MBONE routers, which may be IGMP version-1 or version-2, including IGMP MTRACE (multicast trace) packets.

To multicast clients on a WAN or Ethernet interface, the MAX looks like a multicast router. Like a router, it sends those clients IGMP queries, receives responses, and forwards multicast traffic. In this implementation, multicast clients are not allowed to source multicast packets-if they do, the MAX discards the packets.

These are the parameters for configuring multicast forwarding:

Understanding the multicast parameters

 This section provides some background information about multicast parameters. For more information on each parameter, see the MAX Reference Guide.

Enabling multicast forwarding

The Forwarding parameter turns on multicast forwarding in the MAX.

When you change the Forwarding parameter from No to Yes, the multicast subsystem reads the values in the Ethernet profile and initiates the forwarding function. If you modify a multicast value in the Ethernet profile, you must set this parameter to No and then set it to Yes again to force a read of the new value.

Setting the Membership Timeout value

When the Ascend unit is configured as a multicast forwarder, it forwards polling messages generated by the multicast router and keeps track of active memberships from its client interfaces. You can configure the timeout value by specifying a value between 60 seconds and 65535 seconds. The factory default is still six minutes.

Specifying the MBONE interface

The MBONE interface is where the multicast router resides. If it resides across the WAN, the Mbone Profile parameter must specify the name of a resident Connection profile to that router. If the Mbone Profile name is null and Multicast Forwarding is turned on, the MAX assumes that its Ethernet is the MBONE interface.

Monitoring the multicast heartbeat

When it is running as a multicast forwarder, the MAX is continually receiving multicast traffic. The heartbeat-monitoring feature enables the administrator to monitor possible connectivity problems by continuously polling for this traffic and generating an SNMP alarm trap if there is a traffic breakdown. This is the SNMP alarm trap:

Note: Heartbeat monitoring is optional. It is not required for multicast forwarding.

To set up heartbeat monitoring, you configure several parameters that define what packets will be monitored, how often and for how long to poll for multicast packets, and the threshold for generating an alarm. Following are the parameters you use to specify these settings:

Setting

Parameters
Which packets will be monitored

 HeartBeat Address specifies a multicast address. If the parameter is specified, the MAX listens for packets to and from this group.
HeartBeat UDP Port specifies a UDP port number. If it is specified, the MAX listens only to packets received through that port.
Source Addr and Source Mask specify an IP address and subnet mask. If they are specified, the MAX ignores packets from that source for monitoring purposes.

How often and for how long to poll for multicast packets

 HeartBeat Slot Time specifies an interval (in seconds). The MAX polls for multicast traffic, waits for the duration of the interval, and then polls again.
HeartBeat Slot Count specifies how many times to poll before comparing the number of heartbeat packets received to the Alarm Threshold.

The threshold for generating an alarm

 Heartbeat Alarm Threshold specifies a number. If the number of monitored packets falls below this number, the SNMP alarm trap is sent.

Configuring multicast forwarding on a client interface

Each local or WAN interface that supports multicast clients must set the Client (or Multicast Client) parameter to Yes. With this setting, the MAX begins handling IGMP requests and responses on the interface. It does not begin forwarding multicast traffic until the rate limit is set.

The Rate Limit specifies the rate at which the MAX accepts multicast packets from its clients. It does not affect the MBONE interface. By default, the Rate Limit parameter is set to 100. This disables multicast forwarding on the interface. The forwarder handles IGMP packets, but does not accept packets from clients or forward multicast packets from the MBONE router.

To begin forwarding multicast traffic on the interface, you must set the Rate Limit parameter to a number less than 100. For example if you set it to 5, the MAX accepts a packet from multicast clients on the interface every 5 seconds. Any subsequent packets received in that 5-second window are discarded.

An implicit priority setting for dropping multicast packets

For high-bandwidth data, voice, and audio multicast applications, the MAX supports both multicast rate limiting (described immediately above) and prioritized packet dropping. If the MAX is the receiving device under extremely high loads, it drops packets according to a priority ranking, which is determined by these UDP port ranges:

Multicast interfaces

 The MAX creates the following multicast interfaces at system startup:

Forwarding from a MBONE router on Ethernet

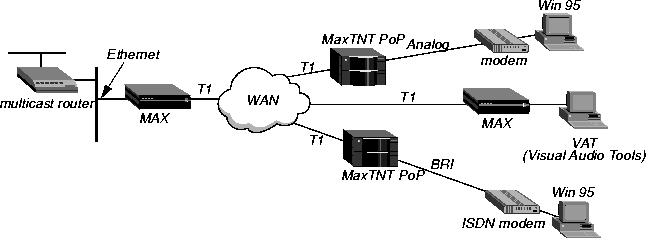

 Figure 12-1 shows a local multicast router on one of the MAX unit's Ethernet interfaces and dial-in multicast clients.

Figure 12-1. MAX forwarding multicast traffic to dial-in multicast clients

Note: Heartbeat monitoring is an optional feature. You can operate multicast forwarding without it if you prefer.

This sample profile specifies the MBONE interface as the Ethernet port, and uses the heartbeat group address of 224.1.1.1:

  1. Open Ethernet > Mod Config > Multicast.

  2. Enable multicast forwarding, and leave the default values for the Mbone profile, Client, and Rate Limit parameters.

  3. Specify a heartbeat group address and UDP port for monitoring heartbeat packets.

  4. Specify the time, count, and alarm threshold parameters.

  5. Close the Ethernet profile.

To enable multicasting on WAN interfaces:

  1. Open the Connection profile for a multicast client site.

  2. Open the IP options subprofile and set Multicast Client to Yes. If appropriate, specify a rate limit other than the default 5.

  3. Close the Connection profile.

Forwarding from a MBONE router on a WAN link

Figure 12-2 shows a multicast router on the WAN with local and dial-in multicast clients.

Figure 12-2. MAX acting as a multicast forwarder on Ethernet and WAN interfaces

Note: This example does not use heartbeat monitoring. If you want to configure the MAX for heartbeat monitoring, see the example settings in Forwarding from a MBONE router on Ethernet.

This sample profile specifies the MBONE interface as a WAN link accessed through a Connection profile #20.

Configuring the MAX for to respond to multicast clients

To configure the MAX to respond to multicast clients on the Ethernet:

  1. Open Ethernet > Mod Config > Multicast.

  2. Enable multicast forwarding, specify the number of the Connection profile for the MBONE interface, and set Client to Yes.

  3. Set Multicast Rate Limit to a number lower than the default 100.

  4. Close the Ethernet profile.

Configuring the MBONE interface

 To configure the MBONE interface:

  1. Open the Connection profile for a MBONE interface (in this example, profile #20).

  2. Open the IP options subprofile and set Multicast Rate Limit to a number lower than the default 100.

  3. Close the Connection profile.

Configuring multicasting on WAN interfaces

 To enable multicasting on WAN interfaces:

  1. Open the Connection profile for a multicast client site.

  2. Open the IP options subprofile and set Multicast Client to Yes.

  3. Set Multicast Rate Limit to a number lower than the default 100.

  4. Close the Connection profile.

Administering multicast interfaces

The terminal server command-line interface provides commands to support IP multicast functionality. To see the options, invoke the terminal server interface (System > Sys Diag > Term Serv) and type:

ascend% show igmp ?

show igmp ?         Display help information

show igmp stats     Display IGMP Statistics

show igmp groups    Display IGMP groups Table

show igmp clients   Display IGMP clients
and:

ascend% show mrouting ?

show mrouting ?     Display help information

show mrouting stats Display MROUTING Statistics

Displaying the multicast forwarding table

 To display active multicast group addresses and clients (interfaces) registered for each group:

ascend% show igmp groups

IGMP Group address Routing Table Up Time: 0:0:22:17

Hash      Group Address    Members    Expire time   Counts

N/A      Default route      *(Mbone)    ......     2224862

10       224.0.2.250

                             2           0:3:24       3211 :: 0 S5

                             1           0:3:21       145 :: 0 S5

                             0(Mbone)    ......       31901 :: 0 S5
The output contains these fields:

Listing multicast clients

 To display a list of multicast clients, type:

ascend% show igmp clients

IGMP Clients



Client      Version  RecvCount  CLU      ALU

  0(Mbone)      1       0          0       0

  2             1      39         68       67

  1             1   33310         65       65
The output contains these fields:
Client

 indicates the interface ID on which the client resides. 0 represents the Ethernet. Other numbers are WAN interfaces, numbered according to when they became active. The interface labeled Mbone is the interface on which the multicast router resides.

Version

 indicates the version of IGMP being used.

RecvCount

 indicates the number of IGMP messages received on that interface.

CLU (current line utilization) and ALU (average line utilization)

 show the percentage of bandwidth utilized across this interface. If bandwidth utilization is high, some IGMP packet types will not be forwarded.

Displaying multicast activity

To display the number of IGMP packet types sent and received:

ascend% show igmp stats

              46 packets received.

        0 bad checksum packets received.

        0 bad version packets received.

        0 query packets received.

       46 response packets received.

        0 leave packets received.

       51 packets transmitted.

       47 query packets sent.

        4 response packets sent.

        0 leave packets sent.
To display the number of multicast packets received and forwarded:

ascend% show mrouting stats

34988 packets received.

    57040 packets forwarded.

        0 packets in error.

       91 packets dropped.

        0 packets transmitted.
In many cases, the number of packets forwarded will be greater than the number of packets received, because packets may be duplicated and forwarded across multiple links.
