MAX Alphabetic Parameter Reference


The MAX supports a variety of software loads which are customized to particular purposes. The installed software may not support all of the parameters described in this reference.

A B C D E F G H I K L M N O P Q R S T U V W X Z

Numeric

1st Line

Description: Enables or disables the first T1 or E1 line. If the line is disabled, the MAX drops existing connections and brings down the line.

Usage: Specify one of the following values:

Example: 1st Line=Trunk

Dependencies: If you specify Quiesced, 2nd line cannot be D&I.

Location: Net/T1 > Line Config, Net/E1 > Line Config

See Also: Sig Mode

2nd Adrs

Description: Assigns a second IP address to the Ethernet interface. It gives the MAX a logical interface on two networks or subnets on the same backbone, a feature called dual IP.

Usage: Specify a valid IP address on the remote subnet. The default value is 0.0.0.0/0.

Example: 2nd Adrs=10.65.212.56/24

Location: Ethernet > Mod Config > Ether Options

See Also: IP Adrs

2nd Line

Description: Enables or disables the second T1 or E1 line and specifies whether it will support trunk calls or drop-and-insert applications only. Drop-and-insert applications are used to accept calls on line #1 and drop them through to line #2. It is typically used to drop voice calls through from line #1 to a PBX on line #2.

Usage: Specify one of the following values:

Example: 2nd Line=Trunk

Dependencies: If you specify D&I, some channels on line 1 must also be set up for drop-and- insert. To support a PBX, the signaling mode must specify PBX. If you specify D&I, Line 1 cannot be set to Quiesced.

Location: Net/T1 > Line Config, Net/E1 > Line Config

See Also: Sig Mode, Ch N (N=1-24, 1-32)

3rd Prompt

Description: Specifies an optional third prompt for a terminal server login. If this value is null, no third prompt is displayed. If the connection is RADIUS-authenticated, the information entered by the user at the third prompt (up to 80 characters) is passed to the server as the value of the Ascend-Third-Prompt attribute. What the RADIUS server does with this information depends upon how the server is configured.

Usage: Specify up to 20 characters. The default is null.

Example: 3rd Prompt=Password2 > >

With this example setting, the terminal server displays these prompts:

Dependencies: This parameter is not applicable when terminal services are disabled or if the Auth parameter is set to a value other than RADIUS or RADIUS/LOGOUT.

Location: Ethernet > Mod Config > TServ Options

See Also: TS Enabled, Auth

3rd Prompt Seq

Description: Specifies whether the 3rd Prompt appears before or after the login and password prompts.

Usage: Specify one of the following values:

Example: 3rd Prompt Seq=Last

Dependencies: This parameter is not applicable when terminal services are disabled or if the Auth parameter is set to a value other than RADIUS or RADIUS/LOGOUT.

Location: Ethernet > Mod Config > TServ Options

See Also: TS Enabled, Auth

7-Even

Description: Specifies whether the MAX uses 7-bit even parity on data it sends toward a dial- in terminal server user.

In 7-bit communication, each device sends only the first 128 characters in the ASCII character set, because each of these characters can be represented by seven bits or fewer. Parity is a way for a device to determine whether it has received data exactly as the sending device transmitted it. Each device must determine whether it will use even parity, odd parity, or no parity.

The sending device adds the 1s in each string it sends and determines whether the sum is even or odd. Then, it adds an extra bit, called a parity bit, to the string. If even parity is in use, the parity bit makes the sum of the bits even; if odd parity is in use, the parity bit makes the sum of the bits odd. For example, if a device sends the binary number 1010101 under even parity, it adds a 0 (zero) to the end of the byte, because the sum of the 1s is already even. However, if it sends the same number under odd parity, it adds a 1 to the end of the byte in order to make the sum of the 1s an odd number.

The receiving device checks whether the sum of the 1s in a character is even or odd. If the device is using even parity, the sum of the 1s in a character should be even; if the device is using odd parity, the sums of the 1s in a character should be odd. If the sum of the 1s does not equal the parity setting, the receiving device knows that an error has occurred during the transmission of the data.

For special ASCII characters (128-256), eight bits are necessary to represent the data. In 8-bit communication, no parity bit is used.

Usage: Specify Yes or No. No is the default and should be used for most applications.

Example: 7-Even=No

Dependencies: This parameter is not applicable if terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

See Also: TS Enabled

A

Acct

Description: Specifies the type of accounting service to use for incoming and outgoing bridging/routing calls, and for incoming terminal server calls. When you enable accounting using RADIUS or TACACS+, you must specify the address of the server using the Acct Host parameter.

Usage: Specify one of the following values:

Example: Acct=RADIUS

Dependencies: RADIUS accounting is disabled if you set Auth=RADIUS/LOGOUT.

Location: Ethernet > Mod Config > Accounting

See Also: Acct Host #N, Auth

Acct Checkpoint

Description: Specifies the interval, in minutes, that RADIUS Accounting checkpoint records should be sent for all users. The Checkpoint message contains the same attributes as the Stop message, except that the value for Acct-Status-Type is 3 (Checkpoint).

Usage: Press Enter to open the text field. Type a number from 0 to 60. The default setting is 0, which disables this feature.

Dependencies: The Acct Checkpoint parameter does not apply (Acct Checkpoint=N/A) if the RADIUS Accounting is not used.

Location: Ethernet > Mod Config > Accounting

Acct Host

Description: Specifies the IP address of a connection-specific accounting server to use for information related to this link.

Usage: Specify the IP address of an accounting server.

Example: Acct Host=10.2.3.4/24

Dependencies: This parameter does not apply unless the Acct Type parameter specifies that a connection-specific server will be used.

Location: Ethernet > Connections > Accounting

See Also: Acct Type

Acct Host #N (N=1-3)

Description: Each of these parameters specifies the IP address of an external accounting server. The MAX first tries to connect to server #1. If it receives no response, it tries to connect to server #2. If it receives no response, it tries server #3. If the MAX connects to a server other than the server #1, it continues to use that server until it fails to service requests, even if the first server has come online again.


Note: The addresses must all point to servers of the same type, as specified in the Acct parameter (either TACACS+ or RADIUS).

Usage: Specify an IP address in dotted-decimal format, separating the optional netmask with a slash character. The default value is 0.0.0.0; this setting indicates that no authentication server exists.

Dependencies: The Acct Host #N parameter does not apply when Acct=None.

Location: Ethernet > Mod Config > Accounting

See Also: Acct

Acct-ID Base

Description: Specifies whether the numeric base of the RADIUS Acct-Session-ID attribute is 10 or 16. It controls how the Acct-Session-ID attribute is presented to the accounting server; for example, a base-10 session ID is presented as 1234567890, and a base-16 ID as 499602D2. You can set this parameter globally and for each connection.

The Acct-Session-ID attribute is defined in section 5.5 of the RADIUS accounting specification. See the MAX RADIUS Configuration Guide for more information.


Note: Changing the value of this parameter while accounting sessions are active results in inconsistent reporting between the Start and Stop records.

Usage: Specify one of the following values:

Example: Acct-ID Base=10

Dependencies: This parameter is applies only to RADIUS accounting. (It does not apply to TACACS+.) Also, this parameter applies in a Connection profile only if the Acct Type parameter specifies that connection-specific accounting information will be used.

Location: Ethernet > Mod Config > Accounting, Ethernet > Connections > Accounting

See Also: Acct, Acct Type

Acct Key

Description: Specifies a RADIUS or TACACS+ shared secret. A shared secret acts like a password between the MAX and the accounting server.

Usage: Specify the text of the shared secret. The value you specify must match the value assigned in the RADIUS clients file or the TACACS+ configuration file.

Example: Acct Key=Ascend

Dependencies: This parameter applies in a Connection profile only if the Acct Type parameter specifies that connection-specific accounting information will be used.

Location: Ethernet > Mod Config > Accounting, Ethernet > Connections > Accounting

See Also: Acct, Acct Host #N, Acct Type

Acct Max Retry

Description: The Acct Max Retry parameter addresses the situation where the RADIUS accounting server is not responding to the MAX unit's Accounting Request packets. This parameter sets the number of times the MAX sends an Accounting Request before it gives up. If the RADIUS accounting backoff queue overflows, the MAX discards Accounting Requests whether or not they have reached the maximum number of retries.

Usage: Enter an integer to specify the maximum number of retries allowed. Enter 0 to disable this feature and remove the retry limit.

Dependencies: This parameter applies only when the Acct parameter = RADIUS and the other required RADIUS accounting parameters have been configured.

Location: Ethernet > Mod Config > Accounting

See Also: Acct Checkpoint, Acct Timeout, Acct, Acct Host, Acct Port, Acct Src Port, Acct Key, Sess Timer, Acct Reset Terminal, Allow Stop Only

Acct Port

Description: Specifies the UDP port number that the Ascend unit uses in accounting requests.

Usage: Specify e a UDP port number that matches the port number the accounting daemon uses. For RADIUS, the default value is 1646. For TACACS+, the default value is 49.

Example: Acct Port=1545

Dependencies: This parameter applies in a Connection profile only if the Acct Type parameter specifies that connection-specific accounting information will be used.

Location: Ethernet > Mod Config > Accounting, Ethernet > Connections > Accounting

See Also: Acct, Acct Host #N, Acct Type

Acct Reset Timeout

Description: This parameter forces the MAX to try to return to the primary RADIUS accounting server; specifically, the server defined by the parameter Acct Host #1.

If a timeout occurs while the MAX was waiting for a reply to an accounting request to the primary RADIUS server; the MAX sends the accounting request to secondary RADIUS server defined by Acct Host #2 and if that fails, Acct Host #3. If either of the secondary servers acknowledges the request, the MAX continues to use that server instead of the primary. The Acct Reset Timeout parameter sets the period of time the MAX uses the secondary RADIUS server. At the end of this period of time, the next accounting request the MAX sends to Acct Host #1.

Usage: Enter the period in seconds. Any value from 0 to 86400 is allowed. To disable this feature enter 0 which is equivalent to an infinite number of seconds; that is, the MAX does not return to the primary server as long as the secondary server is replying to requests.

Location: Ethernet Profile: Ethernet > Mod Config > Acct

See Also: Acct Host #N

Acct Src Port

Description: Specifies the source port used to send a RADIUS or TACACS+ accounting request. You can specify the same source port for authentication and accounting requests.

Usage: Specify a port number between 0 and 65535. The default value is 0 (zero); if you accept this value, the MAX can use any port number between 1024 and 2000.

Location: Ethernet > Mod Config > Accounting

See Also: Auth Src Port

Acct Timeout

Description: Sets the amount of time the MAX waits for a response to a RADIUS accounting request. You can set this parameter globally and for each connection.

If it does not receive a response within that time, the MAX sends the accounting request to the next server's address (for example, server #2). If all RADIUS accounting servers are busy, the MAX stores the accounting request and tries again at a later time. It can queue up to 154 requests.

Usage: Specify a number from 1 to 10. The default global value is 0. The default in a Connection profile is 1.

Example: Acct Timeout=3

Dependencies: This parameter applies only to RADIUS accounting. Because TACACS+ uses TCP, it has its own timeout method. Also, this parameter applies in a Connection profile only if the Acct Type parameter specifies that connection-specific accounting information will be used.

Location: Ethernet > Mod Config > Accounting, Ethernet > Connections > Accounting

See Also: Acct, Acct Type

Acct Type

Description: Specifies whether to use a connection-specific accounting server for accounting related to this link.

Usage: Specify one of the following values:

Example: Acct Type=User

Dependencies: Connection-specific accounting options rely on the setup in the Accounting subprofile of the Ethernet profile.

Location: Ethernet > Connections > Accounting

ACK Suppression

Description: For DTE-initiated calls, this specifies whether the PAD sends an acknowledgment when it receives an opening frame from the DTE and also when it establishes a virtual call with the host.

Usage: Specify one of the following values:

Dependencies: Keep the following information in mind.

Location: Ethernet > Connections > any Connection profile > Encaps options
Etherne > Answer > T3POS options

Activ

Description: Activates a call management time period for an AIM call. You can divide an AIM call that specifies Dynamic call management into time periods, each characterized by separate Activ, Beg Time, Max Ch Cnt, Min Ch Cnt, and Target Util parameters.

Usage: Specify one of the following values:

Example: Activ=Enabled

Dependencies: This parameter is not applicable unless Call Mgm is set to Dynamic.

Location: Host/Dual (Host/6) > PortN Menu > Directory > Time Period N

See Also: Beg Time, Call Mgm, Target Util, Time Period submenu

Activation

Description: Selects the signals at the serial WAN port that indicate that the DCE (Data Circuit-Terminating Equipment) is ready to connect. Flow control is always handled by the CTS (Clear To Send) signal.

Usage: Specify one of the following values:

Example: Activation=Static

Location: Serial WAN > Mod Config

Active

Description: Activates a profile (making it available for use) or a route (adding it to the routing table). A dash appears before each deactivated profile or route.

Usage: Specify Yes or No. No is the default.

Example: Active=Yes

Location: Ethernet > Connections, Ethernet > Frame Relay, Ethernet > Names / Passwords, Ethernet > Static Rtes, Ethernet > X.25

Add Number

Description: Specifies a series of digits to add to the beginning of the dialout phone number after removing the digits specified by Delete Digits. The device connected to line #2 (typically a PBX) dials this phone number.

Usage: Specify the digits you want the MAX to add to the beginning of the phone number. You can specify any digit string that the PRI switch requires. The default is null.

Example: Add Number=923

Dependencies: This parameter applies only to T1 lines using PBX-T1 conversion.

Location: Net/T1 > Line Config > Line N

See Also: Dial #, Delete Digits, Sig Mode

Add Pers

Description: Specifies the number of seconds that average line utilization (ALU) must persist beyond the target utilization threshold before the MAX adds bandwidth from available channels. When adding bandwidth, the MAX adds the number of channels specified in the Inc Ch Count parameter.

Usage: Specify a number between 1 and 300. The factory default value is 5 for MP+ calls and 20 for AIM calls with dynamic call management.

Example: Add Pers=10

Dependencies: This parameter is not applicable in a Call profile unless Call Mgm=Dynamic. It is not applicable in a Connection profile unless Encaps=MPP.

Location: Ethernet > Answer > PPP Options, Host/Dual (Host/6) > PortN Menu > Directory, Ethernet > Connections > Encaps Options

See Also: Call Mgm, Encaps

Adv Dialout Routes

Description: Specifies whether the MAX should stop advertising (poison) its IP dialout routes if no trunks are available.


Note: This parameter is intended for use when two or more Ascend units on the same network are configured with redundant profiles and routes. It solves a problem that occurred when two or more Ascend units on the same network were configured with redundant profiles and routes. If one of the redundant MAX units lost its trunks temporarily, it continued to receive outbound packets that should have been forwarded to the redundant MAX.

Usage: Specify one of the following values:

Example: Adv Dialout Routes=Always

Dependencies: This parameter is not applicable unless the MAX is being used in a redundant configuration.

Location: Ethernet > Mod Config

Alarm

Description: Specifies whether the MAX traps alarm events and sends a traps-PDU (Protocol Data Units) to the SNMP manager. The following alarm events defined in the Ascend Enterprise MIB. (See the Ascend Enterprise MIB for the most up-to-date information.)

Usage: Specify Yes or No. Yes is the default.

Example: Alarm=Yes

Location: Ethernet > SNMP Traps

Alarm Threshold

Description: Specifies a number to use as a threshold for generating an SNMP alarm trap as part of the heartbeat monitoring feature. If the number of monitored packets falls below this number, the following SNMP alarm trap is sent:

When it is running as a multicast forwarder, the MAX is continually receiving multicast traffic. The heartbeat-monitoring feature enables the administrator to monitor possible connectivity problems by continuously polling for this traffic and generating an SNMP alarm trap if there is a traffic breakdown.


Note: Heartbeat monitoring is optional. It is not required for multicast forwarding.

Usage: Specify a number.

Example: Alarm Threshold=3

Dependencies: To set up heartbeat monitoring, you must configure several parameters that define what packets will be monitored, how often and for how long to poll for multicast packets, and the threshold for generating an alarm. These parameters do not apply if multicast forwarding is not in use.

Location: Ethernet > Mod Config > Multicast

See Also: HeartBeat Addr, HeartBeat Udp Port, Source Addr, Source Mask, HeartBeat Slot Time, HeartBeat Slot Count

All Port Diag

Description: Enables or disables a permission that allows an operator to perform all port diagnostic commands listed in the Port Diag menu.

Usage: Specify Yes or No. Yes is the default.

Dependencies: This parameter is not applicable if the Operations permission is disabled.

Example: All Port Diag=No

Location: System > Security

See Also: Own Port Diag

Allow as Client DNS

Description: Specifies whether the local DNS servers should be made accessible to PPP connections if the client DNS servers are unavailable.

Client DNS configurations define DNS server addresses that will be presented to WAN connections during IPCP negotiation. They provide a way to protect your local DNS information from WAN users. Client DNS has two levels: a global configuration that applies to all PPP connections, and a connection-specific configuration that applies to that connection only. The global client addresses are used only if none are specified in the Connection profile.

This parameter acts as a flag to enable the MAX to present the local DNS servers to the WAN connection when all client DNS servers are not defined or available.

Usage: Specify Yes or No. No is the default.

Example: Allow as Client DNS=No

Location: Ethernet > Mod Config > DNS

See Also: Client Assign DNS, Client Pri DNS, Client Sec DNS

Allow Stop Only

Description: Specifies whether the MAX can send accounting Stop packets that do not contain a username to the RADIUS server. Typically, when RADIUS is turned on, the MAX sends both a Start and a Stop packet to the RADIUS accounting server to record a connection. User authentication is required before a Start packet is sent, so when the connection is terminated before authentication occurs, or when the name and password supplied by the user is rejected, the Start packet is not sent and the Stop packet contains no username.

Usage: Specify one of the following values:

Dependencies: Allow Stop Only applies only when the Acct parameter is set to RADIUS and the other required RADIUS accounting parameters have been configured.

Location: Ethernet > Mod Config > Accounting

Example: Acct Checkpoint, Acct Timeout, Acct, Acct Host, Acct Port, Acct Src Port, Acct Key, Sess Timer, Acct Reset Terminal, Allow Stop Only

Analog Encoding

Description: Specifies the encoding standard for digitized analog data. Its value is used for all codecs on the MAX.

If an encoding standard other than the default is selected, modem dialout does not work; choosing a non-default encoding method works only for incoming analog data. To arrive at the proper default, you must clear NVRAM. If a System profile already exists on the MAX and NVRAM is not cleared, the value of Analog Encoding always defaults to u-Law, even if you are using E1.

Usage: Specify one of the following values:

Example: Analog Encoding=u-Law

Location: System > Sys Config

Ans #

Description: Specifies a phone number to be used for routing calls received on the first T1 line to the second line. This may be an add-on number.

Usage: Specify a phone number. The default is null. You can enter up to 18 characters, and you must limit your specification to these characters: 1234567890()[]!z-*#|

Example: Ans #=555

Dependencies: This parameter applies only to T1 lines using PBX-T1 conversion.

Location: Net/T1 > Line Config > Line N

See Also: Sig Mode

Ans N# (N=1-4)

Description: Specifies a phone number to be used for call-routing purposes. It appears in a number of profiles. In each case, it indicates "route calls received on this number to me." For example, answer numbers specified in the Ethernet profile indicate that calls received on that number should be routed to the bridge/router. In a Modem profile, the answer number indicates that calls received on that number should be routed to an available digital modem.


Note: Only two Answer numbers appear in the Host/BRI line profile.

Usage: Specify the phone number for each Ans N# parameter. You can enter up to 24 characters, which may include a subaddress. You must limit your specification to these characters: 1234567890()[]!z-*#|

Example: Ans 1 #=1212

Dependencies: Call routing using the Answer number works only when the network conveys the number dialed to the answering device. This service is commonly called DNIS (Dialed Number Information Service). Under most circumstances, the Answer number specifies the number of the device being called (the MAX); however, if the switch type is GloBanD, it specifies the number of the calling device. Routing calls by Answer number with EAZ service in Europe requires that you include the EAZ subaddress in the parameter.

Location: Ethernet > Mod Config > WAN Options, V.34 Modem > Mod Config, Host/BRI > Line Config > Line N, BRI/LT > Line Config > Line N, Host/Dual (Host/6) > PortN Menu > Port Config, V.110 > Mod Config

See Also: Switch Type, Sub-Adr

AnsOrig

Description: Specifies whether the MAX will enable incoming calls, outgoing calls, or both, for this connection.

Usage: Specify one of the following values:

Example: AnsOrig=Both

Dependencies: This parameter is not applicable for leased connections.

Location: Ethernet > Connections > Telco Options

See Also: LAN Adrs, Station

Ans Service

Description: Causes the MAX to route an incoming call from line #1 to line #2 (the PBX) if the data service of the call matches the data service specified by Ans Service. It provides an alternative way to indicate which calls received on line 1 should be forwarded to line 2. If you set both Ans # and Ans Service to null, the MAX does not route incoming calls to line #2.

Usage: Specify one of the following values:

Example: Ans Service=Voice

Dependencies: This parameter applies only to T1 lines using PBX-T1 conversion.

Location: Net/T1 > Line Config > Line N

See Also: Ans #, PBX Type, Sig Mode

Answer

Description: Specifies how the control-line state determines the way that the MAX answers a call at the port associated with the Port profile.


Note: The Answer parameter setting does not prevent you from answering manually.

Usage: Specify one of the following values:

Example: Answer=Auto

Dependencies: The Answer parameter does not prevent you from answering manually.

Location: Host/Dual (Host/6) > PortN Menu > Port Config

Answer X.121 Addr

Description: Specifies the X.121 address of the remote X.25 host to which this profile connects. The remote host is assumed to also support RFC1356 encapsulation of IP packets.


Note: This field cannot be left empty if Call Mode is set to Both or Incoming.

Usage: Specify the X.121 address of the remote X.25 host. An X.121 address contains between 1 and 15 decimal digits, such as 031344159782738.

Example: Answer X.121 Addr=031344159782111

Dependencies: This parameter applies only to X.25/IP connections.

Location: Ethernet > Connections > Encaps Options

See Also: Call Mode

APP Host

Description: Specifies the IP address of the host that runs the APP Server Utility. Enigma Logic SafeWord AS and Security Dynamics ACE authentication servers are examples of APP servers.

Usage: Specify the IP address of the authentication server.

The address consists of four numbers between 0 and 255, separated by periods. Separate the optional netmask from the address using a slash. The default value is 0.0.0.0/0. The default setting specifies that no APP server is available.

Example: APP Host=200.65.207.63/29

Dependencies: This parameter applies only to outgoing calls using security card authentication. You must set Send Auth=PAP-Token and APP Server=Yes for the APP Host parameter to have any effect.The APP Server utility must be running on a UNIX or Windows workstation on the local network.

Location: Ethernet > Mod Config > Auth

See Also: APP Server, Send Auth

APP Port

Description: Specifies the UDP port number monitored by the APP server identified in the APP Host parameter.

Usage: Specify a UDP port number. Valid port numbers range from 0 to 65535. The default value is 0, which indicates that no UDP port is being monitored by the APP server.

Example: APP Port=35

Dependencies: This parameter applies only to outgoing calls using security card authentication. You must set Send Auth=PAP-Token and APP Server=Yes for the APP Port parameter to have any effect.The APP Server utility must be running on a UNIX or Windows workstation on the local network.

Location: Ethernet > Mod Config > Auth

See Also: APP Server, Send Auth

APP Server

Description: Enables responses to security card password challenges by using the APP Server utility on a UNIX or Windows workstation.

Usage: Specify Yes or No. No is the default.

Example: APP Server=Yes

Dependencies: This parameter applies only to outgoing calls using security card authentication. You must set Send Auth=PAP-Token and APP Server=Yes for the APP Port parameter to have any effect.The APP Server utility must be running on a UNIX or Windows workstation on the local network.

Location: Ethernet > Mod Config > Auth

See Also: Send Auth

AppleTalk

Description: Specifies whether the MAX enables an AppleTalk stack to support AppleTalk routing and ARA (AppleTalk Remote Access) connections.

Usage: Specify Yes or No. No is the default.

Example: AppleTalk=Yes

Location: Ethernet > Mod Config

See Also: ARA, Encaps, Route AppleTalk, AppleTalk Router

AppleTalk Router

Description: Determines whether the MAX is a seed or non-seed router. A routed AppleTalk network must include at least one seed router. Other routers on the network can have a network range of 0, which means that they acquire the network-number range from RTMP packets sent by the seed router. If you specify Non-Seed, the router learns network number and zone information from other routers. You can set up more than one router on a network to be a seed router, but all seed routers must have the same value for both the start and end of the network number range.

Usage: Specify one of the following:

Location: Ethernet > Mod Config > AppleTalk Options

See Also: Route AppleTalk, AppleTalk, Net Start, Net End, Peer (Appletalk Options), Default Zone, Zone Name #n.

ARA

Description: Specifies whether the MAX allows incoming ARA (AppleTalk Remote Access) calls.

Usage: Specify Yes or No. Yes is the default.

Example: ARA=Yes

Dependencies: This parameter is not applicable if AppleTalk is not enabled.

Location: Ethernet > Answer > Encaps

See Also: AppleTalk, Encaps

Area

Description: Specifies the OSPF area that this interface belongs to.

Usage: Specify an area ID in dotted-decimal format. The default 0.0.0.0 represents the backbone network.

Example: Area=0.0.0.1

Dependencies: At this release, we recommend that you configure the local and WAN interfaces in the same area.

Location: Ethernet > Connections > OSPF Options, Ethernet > Mod Config > OSPF Options

AreaType

Description: Specifies the type of OSPF area this interface belongs to. If a network is large, the size of the database, time required for route computation, and related network traffic become excessive. An administrator can partition an AS into areas to provide hierarchical routing connected by a backbone.

The backbone area is special and always has the area number 0.0.0.0. Other areas are assigned area numbers that are unique within the autonomous system.


Note: You must set the area-type parameter consistently on all OSPF routers within the area.

Usage: Specify one of the following values:

Example: AreaType=Normal

Dependencies: You must set the AreaType parameter consistently on all OSPF routers within the area.

Location: Ethernet > Connections > OSPF Options, Ethernet > Mod Config > OSPF Options

Ascend-Shared-Profile-Enable

Description: Enables or disables sharing of a RADIUS user file for multiple incoming users.


Note: To apply Shared Profiles on a per RADIUS user profile basis, you have to disable profile sharing on a system-wide basis by setting Ethernet > Mod Config > Shared Prof = No on the MAX

Usage: You can specify one of the following settings:

Dependencies: For the Ascend-Shared-Profile-Enable attribute to apply, you must disable shared profiles for the MAX as a whole with Ethernet > Mod Config > Shared Prof = No.

ASE-tag

Description: Specifies the OSPF ASE tag of this link. The tag is a 32-bit hexadecimal number attached to each external route. This field is not used by the OSPF protocol itself. It may be used by border routers to filter this record.

Usage: Specify a 32-bit hexadecimal number. The factory default is c0:00:00:00.

Example: ASE-tag=c8:ff:00:00

Location: Ethernet > Connections > OSPF Options, Ethernet > Mod Config > OSPF Options, Ethernet > Static Rtes

Assign Adrs

Description: Enables or disables dynamic IP address assignment for incoming calls.

Usage: Specify Yes or No. No is the default.

Example: Assign Adrs=Yes

Dependencies: The MAX must have at least one configured pool of IP addresses, either locally or on a RADIUS server.

Location: Ethernet > Answer

See Also: Encaps, LAN Adrs, Pool # Count, Pool # Start, Recv Auth, WAN Alias

ATMP Gateway

Description: Instructs the MAX to send data it receives back from the home network on this connection to the mobile node.

Usage: Specify Yes or No. No is the default.

Example: ATMP Gateway=Yes

Dependencies: This parameter is not applicable unless the MAX is configured as an ATMP home agent in gateway mode.

Location: Ethernet > Connections > Session Options

See Also: ATMP Mode, Password, Type, UDP Port

ATMP Mode

Description: Specifies whether ATMP (Ascend Tunnel Management Protocol) is enabled and, if so, whether this unit is a home agent, a foreign agent, or both.

Usage: Specify one of the following values:

Example: ATMP Mode=Home

Dependencies: If you set ATMP Mode=Disabled, all other fields in the ATMP Options menu are not applicable.

Location: Ethernet > Mod Config > ATMP Options

See Also: ATMP Gateway, Password, Type, UDP Port

Attributes

Description: Specifies which RADIUS attributes will be required to identify a session when Session Key is enabled.

Usage: Specify one of the following values:

Example: Attributes=Any

Dependencies: This parameter does not apply if Session Key is disabled.

Location: Ethernet > Mod Config > RADIUS Server

See Also: Session Key

Auth

Description: Specifies the type of external authentication server to access for incoming connections. For details on RADIUS, see the MAX RADIUS Configuration Guide. See the MAX Security Supplement for details on other authentication servers.

Usage: Specify one of the following values:


Note: If the MAX is configured to use SecurID ACE authentication, all authenticated users are given service only according to the parameters of the TServ Options submenu for the Ethernet profile. There currently is no way to get user-specific configuration information from the SecurID ACE server, except by using RADIUS.

Example: Auth=RADIUS (for authentication using RADIUS), Auth=RADIUS/LOGOUT (for authentication using RADIUS and a SecurID server).

Dependencies: This parameter requires a server address in an Auth Host # parameter.

Location: Ethernet > Mod Config > Auth

See Also: Auth Host, Auth Key, Auth Port, Auth Timeout, Encaps

Auth Boot Host #1

Description: Specifies the IP address of the first RADIUS bootup server the MAX contacts, at startup, to obtain ZGR subaddresses or answer numbers.

Usage: Specify an IP address in dotted decimal notation. The default value is 0.0.0.0. If you accept the default, the MAX does not use a RADIUS server for ZGR subaddresses or answer numbers.

Dependencies: You can use the ZGR subaddress and answer number feature without specifying a special bootup server. If you do not specify a special bootup server, the MAX uses the authentication server specified by Auth Host in the Ethernet > Mod Config menu to store the ZGR subaddresses and answer numbers.

If you set the Auth Boot Host #1 parameter, you must also specify a value for the Auth Key and Auth Src Port parameters in the Ethernet > Mod Config > Auth menu.

Location: Ethernet > Mod Config > Auth

See Also: Auth Boot Host #2, Auth Boot Port

Auth Boot Host #2

Description: Specifies the IP address of the RADIUS server the MAX contacts if the server specified by Auth Boot Host #1 fails to respond.

Usage: Specify an IP address in dotted decimal notation. The default value is 0.0.0.0. If you accept the default, the MAX does not use a secondary RADIUS server for ZGR subaddresses or answer numbers.

Dependencies: You can use the ZGR subaddress and answer number feature without specifying a special bootup server. If you do not specify a special bootup server, the MAX uses the authentication server specified by Auth Host in the Ethernet > Mod Config menu to store the ZGR subaddresses and answer numbers.

If you set the Auth Boot Host #2 parameter, you must also specify a value for the Auth Key and Auth Src Port parameters in the Ethernet > Mod Config > Auth menu.

Location: Ethernet > Mod Config > Auth

See Also: Auth Boot Host #1, Auth Boot Port

Auth Boot Port

Description: Specifies the port number to use when contacting the RADIUS server specified by Auth Boot Host #1 or Auth Boot Host #2.

Usage: Specify a value between 0 and 1024. The default value is 0 (zero), which disables the RADIUS bootup-server feature.

Location: Ethernet > Mod Config > Auth

Auth Boot Host #1, Auth Boot Host #2

Auth Host #N (N=1-3)

Description: Each of these parameters specifies the IP address of an external authentication server. The MAX first tries to connect to server #1. If it receives no response, it tries to connect to server #2. If it receives no response, it tries server #3. If the MAX connects to a server other than the server #1, it continues to use that server until it fails to service requests, even if the first server has come online again.


Note: The addresses must all point to servers of the same type, as specified in the Auth parameter (RADIUS, TACACS, or TACACS+). If you are using Defender or SecurID authentication, only Auth Host #1 is applicable, because the MAX can access only one of those servers.

Usage: Specify an IP address in dotted-decimal format, separating the optional netmask with a slash character. The default value is 0.0.0.0; this setting indicates that no authentication server exists.

Example: Auth Host #1=10.207.23.6

Dependencies: This parameter does not apply if authentication services are disabled.

Location: Ethernet > Mod Config > Auth

See Also: Auth, Auth Key, Auth Port, Auth Timeout

Auth Key

Description: Specifies an authentication key, which is typically a shared secret with the authentication server.

Usage: Specify the authentication key.

Example: Auth Key=Ascend

Dependencies: This value of this parameter depends on the setting of the Auth parameter. If Auth is set to SECURID, this parameter is not applicable.

Location: Ethernet > Mod Config > Auth

See Also: Auth, Auth Host, Auth Port, Auth Timeout, SecurID DES Encryption, SecurID Node Secret

Auth Pool

Description: Enables or disables dynamic address assignment for RADIUS-authenticated IP routing connections. The RADIUS server must be configured with at least one pool of addresses for assignment, and must be running the Ascend daemon. See the MAX RADIUS Configuration Guide for details.

Usage: Specify Yes or No. No is the default.

Example: Auth Pool=Yes

Location: Ethernet > Mod Config > Auth

See Also: Auth

Auth Port

Description: Specifies the UDP or TCP port to use to communicate with the external authentication server. It must match the port specified for use in the server's configuration.


Note: Make sure that the number you specify matches what is actually in use by the authentication server daemon.

Usage: Specify the port number used by the server.

Example: Auth Port=1565

Location: Ethernet > Mod Config > Auth

See Also: Auth, Auth Host, Auth Key, Auth Timeout

Auth Req

Description: Specifies how the MAX acts if an authentication request times out after a call has been CLID-authenticated. If set to Yes, calls that have passed CLID-authentication are dropped if the external authentication request times out. If set to No, CLID-authentication connections are allowed even if there is no response form the external server.

Usage: Specify Yes or No. Yes is the default.

Example: Auth Req=Yes

Dependencies: This parameter is not applicable unless CLID authentication is required.

Location: Ethernet > Mod Config > Auth

See Also: Auth, Auth Host # Auth Key, Auth Pool, Auth Port, Auth Timeout

Auth Reset Timeout

Description: This parameter forces the MAX to try to return to the primary RADIUS authentication server; specifically, the server defined by the parameter Auth Host #1.

If a timeout occurs while the MAX was waiting for a reply to an authentication request to the primary RADIUS server; the MAX sends the authentication request to secondary RADIUS server defined by Auth Host #2 and if that fails, Auth Host #3. If either of the secondary servers acknowledges the request, the MAX continues to use that server instead of the primary. Auth Reset Timeout parameter sets the period of time the MAX uses the secondary RADIUS server. At the end of this period of time, the next authentication request the MAX sends to Auth Host #1.

Usage: Enter the period in seconds. Any value from 0 to 86400 is allowed. To disable this feature enter 0 which is equivalent to an infinite number of seconds; that is, the MAX does not return to the primary server as long as the secondary server is replying to requests.

Dependencies: This parameter will be N/A if Auth=None or Auth=TACACS+ in the this profile.

Location: Ethernet Profile: Ethernet > Mod Config > Auth

See Also: Auth Host #N

Auth Send Attr 6,7

Description: Specifies whether the MAX sends values for RADIUS attributes 6 and 7. Typically, it generates appropriate values for RADIUS attribute 6 (user-service) and 7 (framed- protocol) and includes them in authentication requests for incoming calls. To support RADIUS servers that should not receive that information, you can disable this behavior.


Note: When this parameter is set to No, the system cannot differentiate between terminal server users, async PPP users that authenticate via the terminal server, and SLIP users that authenticate via the terminal server.

Usage: Specify Yes or No. Yes is the default.

Example: Auth Send Attr 6,7=Yes

Dependencies: This parameter applies only to RADIUS authentication.

Location: Ethernet > Mod Config > Auth

Auth Src Port

Description: Specifies the source port used to send a remote authentication requests. You can define a source port for all the external authentication services the MAX supports. You can specify the same source port for authentication and accounting requests.

Usage: Specify a port number between 0 and 65535. The default value is 0 (zero); if you accept this value, the MAX can use any port number between 1024 and 2000.

Example: Auth Src Port=0

Dependencies: This parameter does not apply if external authentication is not in use.

Location: Ethernet > Mod Config > Auth

See Also: Acct Src Port

Auth Timeout

Description: Specifies the number of seconds between retries to the external authentication server.


Note: Because remote authentication is tried first if the Local Profiles First parameter set to No, the MAX waits for the remote authentication to time out before attempting to authenticate locally. This timeout may take longer than the timeout specified for the connection and could cause all connection attempts to fail. To prevent this, set the authentication timeout value low enough to not cause the line to be dropped, but still high enough to permit the unit to respond if it is able to. The recommended time is 3 seconds.

Usage: Specify a number from 1 to 10. The default is 1.

Example: Auth Timeout=20

Dependencies: This parameter applies only when using an external authentication server.

Location: Ethernet > Mod Config > Auth

See Also: Auth, Auth Host, Auth Key, Auth Port, SecurID Host Retires.

Auth TS Secure

Description: Specifies whether remote dialin users will be dropped if the immediate login service is TCP-Clear or Telnet and a host is not specified in the RADIUS user profile.

Usage: Specify Yes or No. Yes is the default.

Example: Auth TS Secure=Yes

Dependencies: This parameter does not apply if terminal services are disabled or if RADIUS authentication is not in use.

Location: Ethernet > Mod Config > Auth

See Also: Auth, TS Enabled

AuthKey

Description: Specifies an authentication key (a password). for OSPF routing. The value of this parameter is a 64-bit clear password inserted into the OSPF packet header. It is used by OSPF routers to allow or exclude packets from an area. The default value for OSPF is ascend0.

Usage: Specify a string up to 9 characters for an OSPF auth-key.

Example: AuthKey=Ascend

Dependencies: This parameter is not used if AuthType is None.

Location: Ethernet > Connections > OSPF Options, Ethernet > Mod Config > OSPF Options

See Also: AuthType

AuthType

Description: Specifies the type of authentication in use for validating OSPF packet exchanges: Simple (the default) or None. Simple authentication is designed to prevent configuration errors from affecting the OSPF routing database. It is not designed for firewall protection.

Usage: Specify one of the following values:

Example: AuthType=Simple

Location: Ethernet > Connections > OSPF Options, Ethernet > Mod Config > OSPF Options

See Also: AuthKey

Auto-BERT

Description: Specifies that an automatic byte-error test (Auto-BERT) begins as soon as a call connects and runs for the number of seconds you specify for Auto-BERT.

During the test, the MAX monitors the entire data stream between codecs. At the end of the time period, if any channels have failed, the MAX clears the bad channels, redials, and repeats the test. The Call Status window displays BERT MAST at the dialing end of the call, and BERT SLAVE at the answering end of the call. These status windows display the results of the Auto-BERT:

The maximum number of errors that can accumulate per channel is approximately 65,000. Note that the MAX reports the total number of errors for each channel during the current call, not the error rate.

The MAX resets the error display for the current call to 0 (zero) when the call disconnects, or if the MAX disconnects a channel during the Auto-BERT or during the call itself. You can abort the Auto-BERT at any time by choosing the command DO Beg/End BERT.

Usage: Specify 15, 30, 60, 90, or 120 seconds, or Off. The default setting is Off., which disables the Auto-BERT.

Example: Auto-BERT=Off

Dependencies: You increase call setup time by at least the amount of time you specify for the Auto-BERT parameter.

Location: Host/Dual (Host/6) > PortN Menu > Directory

Auto-Call X.121 Addr

Description: Specifies the X.25 host to call immediately when an X.25/PAD session is established via this Connection profile. If Auto-Call X.121 Addr specifies an address, the PAD session can begin automatically; otherwise, the MAX displays the terminal-server prompt, where the user can issue the "pad" command to begin a session.

Usage: Specify the information needed to call the X.25, up to 48 characters. Use this format:

Example: Auto-Call X.121 Addr=031344159782111 *Dpassword

Dependencies: This parameter applies only to X.25/PAD connections.

Location: Ethernet > Connections > Encaps Options

See Also: Immed Service

Auto Logout

Description: Specifies whether the MAX automatically logs a user out when a device disconnects from the MAX unit's control port or when the MAX loses power.

Usage: Specify Yes or No. No is the default.

Example: Auto Logout=Yes

Location: System > Sys Config

Aux Send PW

Description: Specifies the password the MAX sends when it adds channels to a multichannel PPP call that uses PAP-TOKEN-CHAP authentication. The MAX obtains authentication of the first channel of this call from the user's hand-held security card.

Usage: Specify a password. This password must match the one set up for your MAX in the RADIUS users file on the NAS (network authentication server).

Example: Aux Send PW=Ascend

Dependencies: This parameter applies only to multichannel PPP calls.

Location: Ethernet > Connections > Encaps Options

See Also: Send Auth

B

B&O Restore

Description: Specifies how many seconds the MAX waits before restoring a nailed-up channel to an FT1-B&O call-that is, a call for which Call Type=FT1-B&O.

When the quality of a nailed-up channel falls to Marginal or Poor in an FT1-B&O call, the MAX drops all the nailed-up channels. It then attempts to replace dropped nailed-up channels with switched channels. It also monitors dropped nailed-up channels; when the quality of all dropped channels changes to Fair or Good, the MAX reinstates them. The B&O Restore parameter specifies how long the MAX waits before reinstating the channels.

Usage: Specify the number of seconds you want the MAX to wait before restoring a nailed-up channel. You can enter a number between 30 and 30000. The default is 300.

Example: B&O Restore=50

Location: Host/Dual (Host/6) > PortN Menu > Directory

See Also: Call Mgm, Call Type

BN Prt/Grp (N=1-2)

Description: BN Prt/Grp has two meanings, depending on a channel's configured usage. For switched channels, it specifies a port number to be used with the B N Slot parameter for call routing purposes. In effect, it reserves the channel for calls to and from that port. For nailed channels, it assigns a group number, which will be referenced from Call or Connection profiles to use the nailed channels for a connection.

Usage: Specify a number.

Dependencies: When specifying a port number for call routing purposes, you must also specify the slot number using B N Slot.

Example: B1 Prt/Grp=5

Location: Net/BRI > Line Config > Line N, BRI/LT > Line Config > Line N

See Also: BN Slot, Group

BN Slot (N=1-2)

Description: Specifies a slot number to be used for call routing purposes. In effect, it reserves the channel for calls to and from that slot. Note that there is no way to tell whether a call will come in on the first or second B channel of a BRI line, so both B1 Slot and B2 Slot should specify the same slot number.

Usage: Specify one of the following values:

Dependencies: This parameter is applicable only for switched channels.

Example: B1 Slot=7

Location: Net/BRI > Line Config > Line N

See Also: BN Prt/Grp

BN Trnk Grp(N=1-2)

Description: Assigns a B channel to a trunk group, making it available for outbound calls. Note that you cannot specify the same trunk group number for channels that belong to a BRI and PRI line.

Usage: Specify a number between 4 and 9 for each trunk group. The default is 9.

Example: B1 Trnk Grp=8

Dependencies: This parameter applies only if trunk groups are enabled in the System profile.

Location: Net/BRI > Line Config > Line N, BRI/LT > Line Config > Line N

See Also: B2 Trnk Grp, Ch N Trnk Grp, Dial #

BN Usage(N=1-2)

Description: Specifies the B channel's usage.

Usage: Specify one of the following values:

Example: B1 Usage=Switched

Location: Net/BRI > Line Config > Line N, BRI/LT > Line Config > Line N

See Also: B2 Usage

Back-to-back

Description: Enables you to set up DASS-2 and DPNSS lines in a back-to-back connection. A crossover cable connects an E1 port of one MAX to an E1 port of another MAX. No switch is required, and the connection is entirely local. One MAX should be set up for DTE operation, and the other for DCE operation.

Usage: Specify Yes or No. No is the default.

Dependencies: This parameter applies only to E1 lines whose signaling mode is DPNSS.

Location: Net/E1 > Line Config

See Also: Sig Mode

Backup

Description: Specifies the number of a backup Connection profile for a nailed connection. It is intended as a backup if the far-end device goes out of service, in which case the backup call is made. It is not intended to provide alternative lines for getting to a single destination.


Note: A Connection profile's number is the unique portion of the number preceding the profile's name in the Connections menu.

Usage: Specify the Connection profile number. The default value is null.

Example: Backup=22

Location: Ethernet > Connections > Session Options

See Also: Name

BACP

Description: Enables or disables the Bandwidth Allocation Control Protocol (BACP). If enabled, connections encapsulated in MP (RFC 1990) use BACP to manage dynamic bandwidth on demand. Both sides of the connection must support BACP.


Note: BACP uses the same criteria as MP+ connections for managing bandwidth dynamically.

Usage: Specify Yes to enable BACP. No is the default.

Example: BACP=Yes

Dependencies: This parameter applies only to connections encapsulated in MP.

Location: Ethernet > Answer > PPP Options, Ethernet > Connections > Encaps Options

See Also: Encaps, Dyn Alg, Sec History, Target Util, Add Pers, Sub Pers, Base Ch Count, Min Ch Count, Max Ch Count, Inc Ch Count, Dec Ch Count

Banner

Description: Specifies the text to be used as the terminal server login banner.

Usage: Specify the banner text. You can enter up to 84 alphanumeric characters. The default is ** Ascend MAX Terminal Server **.

Example: Banner="Welcome to ABC Corporation"

Dependencies: This parameter is not applicable if terminal-services are disabled or if the terminal-server obtains its login setup from RADIUS.

Location: Ethernet > Mod Config

See Also: Remote Conf, TS Enabled

Base Ch Count

Description: Specifies the number of channels to use to set up a session initially. If it is a fixed session using MP, Base Ch Count specifies the total number of channels to be used for the call. For an AIM, BONDING, or multichannel PPP call, the channel count may be augmented.

A BONDING Mode 1 call cannot exceed 12 channels. For an MP+ call, the number is limited by the number of available channels. For a Combinet link, you can specify up to two channels. No matter what type of link you use, the amount you specify cannot exceed the maximum channel count set by the Max Ch Count parameter.

If the data service is MultiRate or GloBanD, and the data service you select is a multiple of 64 kbps, specify a value for Base Ch Count that is a multiple of 6. If the data service is 384K/H0, 384KR, or GloBanD, the value you specify for Base Ch Count should be divisible by 6. In this case, specify a value of 6, 12, 18, 24, or 30.

Usage: Specify a number from 1 to 32. The default is 1.

Example: Base Ch Count=2

Dependencies: This parameter does not apply for leased connections.

Location: Host/Dual (Host/6) > PortN Menu > Directory, Ethernet > Connections > Encaps Options

See Also: Call Mgm, Data Svc, Max Ch Count, Parallel Dialing

Beg Time

Description: Specifies the start-time of a dynamic AIM call's time period. You do not need to specify an ending time; the starting time specified by the Beg Time parameter of the next time period is the implicit ending time.

Usage: Specify the time of day you want the time period to begin. The setting you specify must have the format <hour > :<minutes > :<seconds > . The default is 00:00:00.

Example: Beg Time=13:59:59

Dependencies: This parameter applies only when Call Mgm=Dynamic.

Location: Host/Dual (Host/6) > PortN Menu > Directory > Time Period N

See Also: Time Period

Bill #

Description: Specifies a telephone number to be used for billing purposes. If a number is specified, it is used either as a billing suffix or the calling party number. For robbed-bit lines, the MAX uses the billing-number as a suffix that is appended to each phone number it dials for the call.

For PRI lines, the MAX uses the billing-number parameter rather than the phone number ID to identify itself to the answering party.

If the calling party uses the billing-number parameter instead of its phone number as its ID, the CLID used by the answering side is not the true phone number of the caller. This situation presents a security breach if you use CLID authentication. Further, be aware that if you specify a value for the billing-number parameter, there is no guarantee that the phone company will send it to the answering device.


Note: For outgoing calls on a PRI line, the value of the Bill # parameter in the Dial Plan profile overrides the value of the Bill # parameter in the Call profile and Connection profile.

Usage: Specify the billing number provided by the carrier. You can enter up to 24 characters. The default value is null.

Example: Bill #=666

Location: Host/Dual (Host/6) > PortN Menu > Directory, Ethernet > Connections > Telco Options, System > Dial Plan, Ethernet > Frame Relay, Ethernet > X.25

See Also: Calling #, Clid Auth

Bit Inversion

Description: Specifies whether the MAX performs bit inversion when it sends or receives data over the WAN. Bit Inversion applies only to calls between codecs; it turns data 1s into 0s and data 0s into 1s. In some connections, you need to invert the data to avoid transmitting a pattern that the connection cannot handle. If you apply bit inversion, you should do so on both sides of the connection.


Note: If you are not certain about the requirements of bit inversion, contact your carrier.

Usage: Specify Yes or No. No is the default.

Example: Bit Inversion=No

Dependencies: You must set Bit Inversion to the same value on the calling and answering unit.

Location: Host/Dual (Host/6) > PortN Menu > Directory

Block calls after

Description: Specifies how many unsuccessful attempts the Ascend unit will make before beginning to block outgoing calls.

Usage: Enter the number of connection attempts permitted before the Ascend unit blocks calls for the connection. The maximum number you can enter is 65535 (65535 attempts). The default is 0.

Location: Session Options submenu of the Connection Profile.

See Also: Blocked duration

Blocked duration

Description: Specifies the length of time in seconds during which the Ascend unit will block outgoing calls.

Usage: Enter the number of seconds for the Ascend unit to block all calls made to the connection. When this period has elapsed, the unit will again allows calls to this connection.

Location: Session Options submenu of the Connection Profile.

See Also: Block calls after

See Also:

BOOTP Relay Enable

Description: Specifies whether Bootstrap Protocol (BOOTP) requests are relayed to other networks. If you enable BOOTP relay, you must also specify the address of at least one BOOTP server in the Server parameter.

Usage: Specify Yes or No. No is the default.

Example: BOOTP Relay Enable=Yes

Dependencies: For the BOOTP relay feature to work, DHCP Spoofing and SLIP BOOTP must be disabled.

Location: Ethernet > Mod Config > BOOTP Relay

See Also: Server

Bridge

Description: Enables or disables link-level packet bridging for this connection. If you disable bridging, you must enable routing. Enabling bridging in the Answer profile enables the MAX to answer a call that contains packets other than the routed protocols (IP or IPX).

Usage: Specify Yes or No. No is the default.

Example: Bridge=Yes

Dependencies: This parameter does not apply unless Bridging is enabled in the Ethernet profile. If you have a MAX running Multiband Simulation, Bridge is disabled.

Location: Ethernet > Answer > PPP Options, Ethernet > Connections

See Also: Bridging, Encaps, Route IP, Route IPX

Bridging

Description: Enables or disables packet-bridging system-wide. It causes the MAX unit's Ethernet controller to run in promiscuous mode. In promiscuous mode, the Ethernet driver accepts all packets regardless of address or packet type and passes them up the protocol stack for a higher-layer decision on whether to route, bridge, or reject the packets.


Note: Running in promiscuous mode incurs greater processor and memory overhead than the standard mode of operation for the Ethernet controller. On heavily loaded networks, this increased overhead can result in slower performance, even if no packets are actually bridged.

Usage: Specify Yes or No. No is the default.

Example: Bridging=Yes

Dependencies: If you have a MAX running Multiband Simulation, Bridging is disabled.

Location: Ethernet > Mod Config

See Also: Bridge

Buffer Chars

Description: Specifies whether to buffer characters in a terminal server session or to process each character as it is received. If enabled, this feature causes the MAX to buffer input characters for 100 milliseconds.

Usage: Specify Yes or No. Yes is the default.

Example: Buffer Chars=Yes

Dependencies: This parameter is not applicable when terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

See Also: Immed Telnet, TS Enabled

Buildout

Description: Specifies the line buildout value for T1 lines with an internal CSU (Channel Service Unit). The buildout value is the amount of attenuation the MAX should apply to the line's network interface in order to match the cable length from the MAX to the next repeater.

Attenuation is a measure of the power lost on a transmission line or on a portion of that line. When you specify a build-out value, the MAX applies an attenuator to the T1 line, causing the line to lose power when the received signal is too strong. Repeaters boost the signal on a T1 line. If the MAX is too close to a repeater, you need to add some attenuation.

Usage: Check with your carrier to determine the correct value for this parameter. Specify one of the following values (db stands for decibels):

Example: Buildout=0

Dependencies: This parameter is not applicable if the T1 line does not have an internal CSU to connect to the local digital telephone system.

Location: Net/T1 > Line Config > Line N

C

Callback

Description: Enables or disables the callback feature. When you enable the callback feature, the MAX hangs up after receiving an incoming call that matches the one specified in the Connection profile. The MAX then calls back the device at the remote end of the link using the Dial # specified in the Connection profile.

You can use the Callback parameter to tighten security, as it ensures that the MAX always makes a connection with a known destination.

Usage: Specify Yes or No. No is the default.

Example: Callback=Yes

Dependencies: This parameter does not apply to leased connections. If it is enabled on a switched connection, the Connection profile must both answer the call and call back the device requesting access. By the same token, any device calling into a Connection profile set for callback must be configured to both dial calls and answer them.

Location: Ethernet > Connections > Telco Options

See Also: AnsOrig, Call Type, Dial #, Calling #

Call-by-Call

Description: In a T1 Line profile, specifies the call-by-call signaling value to set for routing calls from a local device through the MAX to the network. When it is set in another profile, it specifies the PRI service to use when placing a call using that profile.


Note: The Call-by-Call setting in the Dial Plan profile overrides the Call-by-Call setting in the Call profile and the Connection profile.

These are the call-by-call services available if the service provider is AT&T:

These are the VPN and GVPN call-by-call services available if the service provider is Sprint:

These are the call-by-call services available if the service provider is MCI:

Usage: Specify a number between 0 and 65535, corresponding to the type of call-by-call service in use. The factory default is 0, which disables call-by-call service.

Example: Call-by-Call=6

Location: Ethernet > Connections > Telco Options, System > Dial Plan, Ethernet > Frame Relay, Net/T1 > Line Config > Line N, Ethernet > X.25

See Also: Call-by-Call N

Call-by-Call N (N=1-6)

Description: In a Destination profile, specifies the PRI service to use when placing a call using the associated Dial #. For example, when the MAX dials the number specified by Dial 5#, the MAX uses the services specified by Call-by-Call 5.


Note: The setting of the Call-by-Call N parameter in the Destination profile overrides the setting of the Call-by-Call parameter in the Call profile or Connection profile.

These are the call-by-call services available if the service provider is AT&T:

These are the VPN and GVPN call-by-call services available if the service provider is Sprint:

These are the call-by-call services available if the service provider is MCI:

Usage: Specify a number between 0 and 65535, corresponding to the type of call-by-call service in use. The factory default is 0, which disables call-by-call service.

Example: Call-By-Call 1=4

Location: System > Destinations

See Also: Call-by-Call, Option

Call Filter

Description: Specifies the number of a filter used to determine if a packet should cause the idle timer to be reset or a call to be placed. If both a call filter and data filter are applied to a connection, the MAX applies a call filter after applying a data filter. (Only those packets that the data filter forwards can reach the call filter.)

Usage: Specify a number between 0 and 199. The number you enter depends on the whether you are applying a filter you created using the vt100 interface, or a firewall you created using Secure Access Manager (SAM).

If you are applying a filter created using the vt100 interface, enter the last 2 digits of the filter number as it appears in the Filters menu.

If you are applying a firewall created with SAM, add 100 to the last 2 digits of the firewall number as it appears in the Firewalls menu. For example, if the number of your firewall is 90-601, specify 101. Refer to your SAM documentation for information on downloading firewalls to the MAX. The numbering scheme for filters and firewalls is:

Example: Call Filter=7

Location: Ethernet > Answer > Session Options, Ethernet > Connections > Session Options

See Also: Data Filter, Filter

Call Mode

Description: Specifies whether the MAX can initiate a call request on the X.25 IP connection.

Usage: Specify one of the following values:

Example: Call Mode=Both

Dependencies: This parameter applies only to X.25/IP connections. The setting relies on matching an address specified in the Answer X.121 or Remote X.121 address parameters.

Location: Ethernet > Connections > Encaps Options

See Also: Encaps, Answer X.121 Addr, Remote X.121 Addr

Call Mgm

Description: Specifies the way that the MAX manages calls at an AIM port when AIM, FT1- AIM, FT1-B&O, or BONDING is the value for the Call Type parameter.

Depending upon the type of call in use, different call management features are available:

A remote loopback tests the entire connection from host interface to host interface, enabling the MAX to place a call to itself over the WAN and to send a user-specified number of packets over the connection. The data loops at the AIM port interface of the remote MAX, and comes back to the local MAX. The loopback tests the MAX unit's ability to initiate and receive calls, and diagnoses whether the connection over the digital access line and the WAN is sound.

For the call management features available by command, see Chapter 1, DO Command Reference.

Usage: Specify one of the following values:

Dependencies: This parameter is not applicable if the call type is single channel or two-channel. The Dynamic setting is not applicable for Host/6 cards.

Location: Host/Dual (Host/6) > PortN Menu > Directory

See Also: Add Pers, Base Ch Count, Call Type, Dyn Alg, Sec History, Sub Pers

Call Password

Description: Specifies the password for outgoing AIM or BONDING calls. Authentication is used only if the receiving unit has a password defined in the Port profile. If the Port profile in the receiving unit does not have a password defined, the units connect without authentication even though the originating unit may have sent parameters. Note that the MAX only authenticates AIM and BONDING calls; dual-port calls are not authenticated.

Usage: Enter a password of nine characters or less.

Example: Call Password=Ascend

Location: Host/Dual (or Host/6) > Port N Menu > Directory

See Also: Port Password

Call Type

Description: Specifies a type of connection, or in the case of codecs, the architecture of the connection. These two different usages for this parameter are specified in two Usage sections below.

Usage: To specify the type of connection in a Frame Relay, Connection, or X.25 profile, specify one of these values:

Usage: To specify the architecture of an end-to-end connection between codecs (Call profiles), specify one of these values:

Dependencies: A call type of Nailed makes parameters related to switched connections (such as callback) inapplicable, and a call type of Switched makes parameters related to nailed connections (such as the Group parameter) inapplicable. Because a call type of Perm/Switched is always outbound, the following parameters are inapplicable for permanent switched connections: AnsOrig, Callback, Idle, Backup.

The following parameters in the X.25 profile are not applicable when you set Call Type to D-Channel: Nailed Grp, Data Svc, PRI # Type, Dial #, Bill #, Call-by-Call, Transit #, LAPB T1, LAPB T2, LAPB N2, LAPB K, X.25 Seq Number Mode, X.25 Link Setup Mode, X.25 Node Type, X.25 Pkt Size, X.25 Min Pkt Size, X.25 Max Pkt Size

Location: Host/Dual (Host/6) > PortN Menu > Directory, Ethernet > Connections > Telco Options, Ethernet > Frame Relay, Ethernet > X.25

See Also: AnsOrig, Backup, Callback, Call Mgm, Data Svc, DLCI, FR DLCI, Group, Idle, Max Ch Count, Min Ch Count, Nailed Grp

Called #

Description: Specifies the number called to establish this connection, which is typically the number dialed by the far end. It is presented in an ISDN message as part of the call when DNIS (Dial Number Information Service) is in use. In some cases, the phone company may present a modified called number for DNIS. This number is used for authentication and to direct inbound calls to a particular device from a central rotary switch or PBX. See the MAX Security Supplement for details.

Usage: Specify the number to be used for Called Number authentication.

Example: Called #=5551234

Location: Ethernet > Connections, Ethernet > Answer

See Also: Id Auth

Calling #

Description: Specifies the calling number (the far-end device's number). Many carriers include the calling number (the far-end device's number) in each call. Calling # is the caller ID number displayed on some phones and used by the MAX for CLID (Calling Line ID) authentication.

CLID authentication enables you to prevent the MAX from answering a connection unless it originates at the specified phone number. The number you specify in this parameter may also be used for callback security if you configure callback in the per-connection telco options.

Calling # is also used for callback security with CLID. See Callback.

Usage: Specify the called number to be used for authentication purposes.

Example: Calling #=555-6787

Location: Ethernet > Connections, Ethernet > Answer

See Also: Id Auth, Callback

CBCP Enable

Description: Specifies how the MAX responds to caller requests to support CBCP.

Usage: Press Enter to cycle through the choices.

Location: Ethernet > Answer > PPP Options

See Also: CBCP Mode, CBCP Trunk Group

CBCP Mode

Description: Specifies what method of callback the MAX offers the incoming caller.

Usage: Press Enter to cycle through the choices. You can specify one of the following settings:

Setting

Description

No Cback

Applies for Windows NT or Windows 95 clients who must not be called back. Because CBCP has been negotiated initially, the Windows clients must have validation from the MAX that no callback is used for this connection.

User Num

Specifies that the caller will supply the number the MAX uses for the callback.

Prof Num

Specifies the MAX will use the number in Ethernet > Connections > Any Connection profile > Dial # for the callback

User Num or No Cback

Specifies that the caller has the option of either supplying the number to dial or specifying that no callback is used for the call. If no callback is chosen, the call will not be disconnected by the MAX.

Dependencies: CBCP Mode applies only if CBCP is successfully negotiated for a connection. Encaps=PPP or MPP or MP.

Location: Ethernet > Connections > Any Connection Profile > Encaps Options

See Also: CBCP Enable, CBCP Trunk Group

CBCP Trunk Group

Description: Assigns the callback to a MAX trunk group. This parameter is used only when the caller is specifying the phone number the MAX uses for the callback. The value in CBCP Trunk Group is prepended to the caller-supplied number when the MAX calls back.

Usage: Press Enter to open a text field. Then type a number from 4 to 9. The default is 9.

Dependencies: CPCP Trunk Group applies only if CBCP is negotiated for a connection. Encaps=PPP or MPP or MP.

Location: Ethernet > Connections > Any Connection Profile > Encaps Options

See Also: CBCP Enable, CBCP Mode

Cell First

Description: Determines whether the MAX attempts a cellular connection before a land connection. When an incoming call is routed by the MAX to one of its digital modems, the modem answers the call by issuing an AT command string to the selected modem. This answer string contains the following command for support of cellular modems:

where X is the parameter that selects whether the modem negotiates land-based or cellular first, and Y is the modem gain used for cellular communication. For example, if Cell First=No and Cell Level=18 is set in the TServ options menu, the command would be:

Usage: Specify Yes or No. No is the default.

Example: Cell First=No

Dependencies: This parameter is not applicable if terminal services are disabled.

Location: Ethernet > Mod Config > TServ options

See Also: Cell Level

Cell Level

Description: Specifies the modem cellular communications transmit and receive level. Valid values are -10 db through -18 db.

Usage: Specify one of the following values:

Example: Cell Level=18

Dependencies: This parameter is not applicable if terminal services are disabled.

Location: Ethernet > Mod Config > TServ options

See Also: Cell First

Ch N (N=1-24, 1-32)

Description: Specifies the usage for this channel. Channel usage may be different from the usage specified for the line itself. For example, the line may specify switched usage while individual channels within that line specify nailed.

Usage: Specify one of the following values for T1 channels:

Specify one of the following values for E1 channels:

Example: Ch 1=Switched

Location: Net/T1 > Line Config > Line N, Net/E1 > Line Config > Line N

See Also: Sig Mode

Ch N # (N=1-24, 1-32)

Description: You build multichannel calls (MP, MP+, AIM, BONDING) by specifying add- on numbers. A multichannel call begins as a single-channel connection to one phone number. The calling unit then requests additional phone numbers it can dial to connect those channels, and stores the add-on numbers it receives from the answering unit. The calling unit must integrate the add-on numbers with the phone number it dialed initially to add channels to the call. Three parameters specify add-on numbers: Ch N #, PRI Num and Sec Num.


Note: Do not enter phone numbers of the MAX you are calling in the Line Profile. The numbers you are calling belong in the Call and Connection profiles.

Typically, the phone numbers assigned to the channels share a group of leading (leftmost) digits. Enter only the rightmost digits identifying each phone number, excluding the digit(s) that are in common, as in the following example:

The most common reason multichannel calls fail to connect beyond the initial connection is that the answering unit sends the calling unit add-on numbers it cannot use to dial the other channels. The group of channels that make a multichannel call is called a bundle. A 10-channel bundle in which each channel is 64kbps, provides a 640 kbps connection.


Note: AIM and BONDING call bundles should not span dial plans. If you are receiving AIM or BONDING calls and have multiple dial plans, set up each dial plan as a separate trunk group. This also prevents MP and MP+ call bundles from spanning dial plans.

For example, you have two PRI lines from different service providers. You set the ChN Trnk Grp parameters for the first line to 9 and for the second line to 8. Also, enabling trunk groups on your MAX separates the two dial plans, and prevents the formation of bundles with channels from both PRI lines.

The phone numbers that you specify are the ones used to call this unit. There is a one-to-one correspondence between a phone number and a channel, except when you are using GloBanD lines. (When the switch type is GloBanD, the MAX pools the phone numbers and can apply them to any channel of the PRI line.)

Usage: Specify a phone number with a limit of 24 characters, which can include the following characters: 1234567890()[]!z-*#|. The default is null.

Example: Ch 1 #=1212

Dependencies: This parameter is applicable only for switched channels.

Location: Net/T1 > Line Config > Line N, Net/E1 > Line Config > Line N

See Also: Sub-Adr

Ch N Prt/Grp (N=1-24, 1-32)

Description: Ch N Prt/Grp has two meanings, depending on a channel's configured usage. For switched channels, it specifies a port number to be used with the Ch N Slot parameter for call routing purposes. In effect, it reserves the channel for calls to and from that port. For nailed channels, it assigns a group number, which will be referenced from Call or Connection profiles to use the nailed channels for a connection.

Usage: Specify a number.

Dependencies: When specifying a port number for call routing purposes, you must also specify the slot number using Ch N Slot.

Example: Ch 1 Prt/Grp=5

Location: Net/T1 > Line Config > Line N, Net/E1 > Line Config > Line N

See Also: Ch N Slot, Group

Ch N Slot (N=1-24, 1-32)

Description: Specifies a slot number to be used for call routing purposes. In effect, it reserves the channel for calls to and from that slot.

Usage: Specify one of the following values:

Dependencies: This parameter is applicable only for switched channels.

Example: Ch 1 Slot=7

Location: Net/T1 > Line Config > Line N, Net/E1 > Line Config > Line N

See Also: Ch N Prt/Grp

Ch N Trnk Grp (N=1-24, 1-32)

Description: Assigns a channel to a trunk group, making it available for outbound calls. Dial numbers for connections can then be directed to specific channels by specifying the trunk group as a single-digit dialing prefix to the far-end phone number.

Usage: Specify a number between 4 and 9 for each trunk group. The default is 9.

Dependencies: This parameter applies only when trunk groups have been enabled in the System profile.

Location: Net/T1 > Line Config > Line N, Net/E1 > Line Config > Line N

See Also: Use Trunk Grps

Circuit

Description: Specifies an alphanumeric name for a DLCI endpoint. When combined as a circuit, the two DLCI endpoints act as a tunnel-data received on one DLCI bypasses the Ascend router and is sent out on the other DLCI.

A circuit is a permanent virtual circuit (PVC) segment that consists of two DLCI end points and possibly two Frame Relay profiles. It requires two and only two DLCI numbers: data is dropped if the circuit has only one DLCI and if more than two are defined, only two are used. Circuits are defined in two Connection profiles. Data coming in on the DLCI configured in the first Connection profile is switched to the DLCI configured in the second one.

Usage: Specify a name for the circuit, up to 16 characters. The other end-point of the PVC must specify the same name in its Circuit configuration.

Example: Circuit=circuit-1

Dependencies: This parameter applies only to FR_CIR-encapsulated calls.

Location: Ethernet > Connections > Encaps options

See Also: Encaps

Clear

Description: Specifies whether the control-line state determines when the MAX clears a call.

Usage: Specify one of the following values:

Dependencies: If the Answer or Dial parameter is set to RS-366, V.25 bis, or X.21, set Clear to DTR Inactive unless your application requires otherwise. This setting is compatible with the CCITT recommendation for the V.25 bis and X.21 protocols, and with most implementations of RS-366 dialing.

Location: Host/Dual (Host/6) > PortN Menu > Port Config

See Also: Answer, Dial

Clear Call

Description: Specifies whether the dial-in connection is cleared when an interactive Telnet, Rlogin, or TCP session terminates. If set to No, the user is returned to the terminal server menu when the Telnet, Rlogin, or TCP session terminates.

Usage: Specify Yes or No. The default is No.

Example: Clear Call=Yes

Dependencies: This parameter is not applicable when terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

Client

Description: Enables the MAX to respond to multicast clients on the local Ethernet. Clients cannot be support on the MBONE interface, so this means that the multicast router resides across a WAN link.

Usage: Specify Yes or No. No is the default.

Example: Client=Yes

Dependencies: This parameter is not applicable if Multicast Forwarding is disabled or if the local Ethernet is the MBONE interface (supporting a multicast router).

Location: Ethernet > Mod Config > Multicast

See Also: Multicast Forwarding, Mbone profile

Client #N (N=1-9)

Description: Specifies up to nine IP address of clients permitted to make RADIUS requests. Each client address can support a range of addresses instead of a single client IP address, for example:


Note: If no mask bits are supplied, the software supplies a default netmask based on the class of the address.

Usage: Specify an IP address. The default is 0.0.0.0, which disables the associated client field. At least one of the fields must contain an IP address other than 0.0.0.0 for the server to be active.

Dependencies: This parameter does not apply if the on-board RADIUS server is disabled.

Location: Ethernet > Mod Config > RADIUS Server

See Also: Server, Server Key, Server Port, MAX RADIUS Configuration Guide

Client Assign DNS

Description: Specifies whether client DNS server addresses will be presented while this connection is being negotiated.

Usage: Specify Yes (to use client DNS servers) or No. No is the default.

Example: Client Assign DNS = no

Location: Ethernet > Connections > IP Options

See Also: Client Pri DNS, Client Sec DNS

Client Gateway

Description: Specifies a connection-specific default route to be used for forwarding packets received on this connection. The MAX uses this default route instead of the system-wide Default route in its routing table. This route is connection-specific, so it is not added to the routing table.


Note: The MAX must have a direct route to the address you specify.

Usage: Specify the IP address of a next-hop router. The default value is 0.0.0.0; if you accept this value, the Ascend unit routes packets as specified in the routing table, using the system- wide default route if it cannot find a more specific route.

Example: Client Gateway=10.1.2.3

Location: Ethernet > Connections > IP Options

Client Pri DNS

Description: Specifies a primary DNS server address to be sent to any client connecting to the MAX. Client DNS has two levels: a global configuration that applies to all PPP connections, and a connection-specific configuration that applies to that connection only. The global client addresses are used only if none are specified in the Connection profile. You can also choose to present your local DNS servers if no client servers are defined or available.

Usage: Specify the IP address of a DNS server to be used for all connections that do not have a DNS server defined. The default value is 0.0.0.0.

Example: Client Pri DNS=10.9.8.7/24

Location: Ethernet > Mod Config > DNS, Ethernet > Connections > IP Options

Client Sec DNS

Description: Specifies a secondary DNS server address to be sent to any client connecting to the MAX. Client DNS has two levels: a global configuration that applies to all PPP connections, and a connection-specific configuration that applies to that connection only. The global client addresses are used only if none are specified in the Connection profile. You can also choose to present your local DNS servers if no client servers are defined or available.

Usage: Specify the IP address of a secondary DNS server to be used for all connections that do not have a DNS server defined. The default value is 0.0.0.0.

Example: Client Sec DNS=10.9.8.7/24

Location: Ethernet > Mod Config > DNS, Ethernet > Connections > IP Options

Clock Source

Description: Specifies whether the T1 or E1 line may be used as the clock source for timing synchronous transmissions. If it is enabled, the line provides timing as long as it is active and not in Red Alarm mode, and the MAX runs in recovered loop timing mode. If the MAX connects to more than one line, selecting Yes for each one gives the MAX the option of using any of the lines as a source of synchronous timing.

Usage: Specify Yes or No. Yes is the default, and is the proper setting for normal operations.

Example: Clock Source=Yes

Location: Net/T1 > Line Config > Line N, Net/E1 > Line Config > Line N

Clr Scrn

Description: Specifies whether the screen is cleared when a terminal server session begins.

Usage: Specify Yes or No. Yes is the default.

Example: Clr Scrn=Yes

Dependencies: This parameter is not applicable when terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

See Also: TS Enabled

COMB

Description: Specifies whether the MAX accepts or rejects incoming calls that use Combinet encapsulation and meet all other Answer profile criteria. Combinet requires authentication by password and MAC address.

Usage: Specify Yes or No. Yes is the default.

Dependencies: This parameter is not applicable unless bridging is enabled system-wide in the Ethernet profile.

Location: Ethernet > Answer > Encaps

See Also: Bridge, Bridging, Encaps

Comm

Description: Specifies the SNMP community name associated with the SNMP PDU (Protocol Data Units). The string you specify becomes a password that the MAX sends to the SNMP manager when an SNMP trap event occurs. The password authenticates the sender identified by the host address.

Usage: Specify the community name, up to 31 characters. The default is public.

Example: Comm=Ascend

Dependencies: If this parameter and the Dest parameter are null, the MAX does not generate SNMP traps.

Location: Ethernet > SNMP Traps

See Also: Dest

Compare

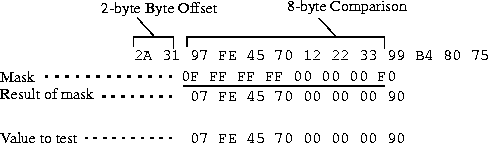

Description: Specifies the type of comparison to make between the specified value in a filter and the specified location in the contents of a packet.

Usage: Specify one of the following values:

Dependencies: This parameter does not apply if the filter is not Valid or if the filter type is IP.

Location: Ethernet > Filters > Input filters > In filter N > Generic, Ethernet > Filters > Output filters > Out filter N > Generic

See Also: Length, Mask, Offset, Value, Valid

Compression

Description: Enables or disables data compression on or off for a Combinet link. Both sides of the link must enable compression for the algorithm to have any effect.

Usage: Specify one of the following values:

Dependencies: This parameter is applicable only for Combinet connections. Both sides of the link must enable compression for the algorithm to have any effect.

Location: Ethernet > Answer > COMB Options, Ethernet > Connections > Encaps Options

See Also: Link Comp

Connection #

Description: Specifies the number of a Connection profile needed to bring up a bridged or routed connection. The MAX uses this number to locate the profile and bring up the connection needed to forward packets whose destination address is not on the local network.

If it receives a packet whose destination MAC address is not on the local Ethernet, it looks in the bridging table for a matching MAC address and uses the specified Connection profile to bring up a bridged connection.

If it receives an IPX packet whose destination address is not on the NetWare LAN, it checks its IPX routing table and uses the specified Connection profile to bring up an IPX connection.


Note: The number of a Connection profile is the unique portion of the number preceding the profile's name in the Connections menu.

Usage: Specify a Connection profile number.

Dependencies: Bridge profiles are not used for connections that enable dial-on-broadcast.

Location: Ethernet > Bridge Adrs, Ethernet > IPX Routes

See Also: Dial Brdcast, Route IPX

Console

Description: Specifies the interface established at the vt100 port labeled Control on the back panel of the MAX.

Usage: Specify one of the following values:

Dependencies: You cannot operate MIF through a hand-held terminal. Only a vt100 terminal or emulator can operate MIF.

Location: System > Sys Config

Contact

Description: Specifies the person or department to contact to report error conditions. This field is SNMP readable and settable.

Usage: Specify the name of the contact person or department. You can enter up to 80 characters.

Example: Contact=rchu

Location: System > Sys Config

See Also: Location

Cost

Description: Specifies the cost of an OSPF link. The cost is a configurable metric that must take into account the speed of the link and other issues. The lower the cost, the more likely the interface will be used to forward data traffic.

With the exception of links to stub networks, the output cost must always be non-zero. A link with a cost of 0xFFFFFF (16777215) is considered non-operational.

In a static route, the interpretation of this cost depends on the type of external metrics set in the ase-type parameter. If the MAX is advertising type 1 metrics, OSPF can use the specified number as the cost of the route. Type 2 external metrics are an order of magnitude larger. Any type 2 metric is considered greater than the cost of any path internal to the AS (autonomous system).

Usage: Specify a number greater than 0 and less than 16777215. The default is 1 on the Ethernet interface and 10 on the WAN links.

Example: Cost=50

Location: Ethernet > Connections > OSPF Options, Ethernet > Mod Config > OSPF Options

CUG Index

Description: Specifies the closed user group (CUG) index/selection facility to use in the next call request. The closed user group selection/index facility is used to indicate to the called switch the closed user group selected for a virtual call.

Usage: Specify the CUG Index to use in the next call request. You can specify up to two digits. The default is null.

Dependencies: Encaps must be set to X25/PAD for CUG Index to be applicable.

Location: Ethernet > Connections > any Connection profile > Encaps options
Ethernet > Answer > PAD options
Ethernet > Answer > T3POS options

D

Data Filter

Description: Specifies the number of a filter used to determine if packets should be forwarded or dropped. If both a call filter and data filter are applied to a connection, the MAX applies a call filter after applying a data filter. (Only those packets that the data filter forwards can reach the call filter.)

Usage: Specify a number between 0 and 199. The number you enter depends on the whether you are applying a filter you created using the vt100 interface, or a firewall you created using Secure Access Manager (SAM).

If you are applying a filter created using the vt100 interface, enter the last 2 digits of the filter number as it appears in the Filters menu.

If you are applying a firewall created with SAM, add 100 to the last 2 digits of the firewall number as it appears in the Firewalls menu. For example, if the number of your firewall is 90-601, specify 101. Refer to your SAM documentation for infomation on downloading firewalls to the MAX. The numbering scheme for filters and firewalls is:

When you set Data Filter to 0 (zero), the MAX forwards all data packets.

Example: Data Filter=7

Location: Ethernet > Answer > Session Options, Ethernet > Connections > Session Options

See Also: Call Filter, Filter

Data Format

Description: Specifies the data format and parity checking/generation behavior of the PAD when it validates opening frames as well as during Local mode data transfer.

Usage: Specify one of the following values:

Dependencies: This parameter is always applicable.

Location: Ethernet > Connections > any Connection profile > Encaps options
Ethernet > Answer > T3POS options

Data Svc

Description: A data service is provided over a WAN line and is characterized by the unit measure of its bandwidth. A data service can transmit either data or digitized voice. In a Call profile, Connection profile, X.25, or Frame Relay profile, Data Svc specifies the type of data service the link uses. In a Dial Plan profile, Data Svc specifies the data service associated with the number the MAX dials under the extended dial plan.


Note: Either party can request a data service that is unavailable. In this case, the MAX cannot connect the call.

Usage: Specify one of the following values:

Dependencies: Because FT1 calls do not include switched services, the Data Svc parameter lists only 56KR and 64K when Call Type=FT1; in this context, the Data Svc setting indicates how much bandwidth the MAX routes to the host for each channel in the connection. When Call Type=FT1-B&O or Call Type=FT1-AIM, the Data Svc parameter refers to the switched channels.

Location: Host/Dual (Host/6) > PortN Menu > Directory, Ethernet > Connections > Telco Options, System > Dial Plan, Ethernet > Frame Relay, Ethernet > X.25

See Also: Call Type

Date

Description: Specifies the month, day, and year. You should set this parameter when installing the MAX.

Usage: Specify the current date in the format <month > /<day > /<year >. The default is 00/ 00/00.

Location: System > Sys Config

DBA Monitor

Description: Specifies how the MAX monitors the traffic over an MP+ connection. Only the initiating side of the call can add or subtract bandwidth. If both sides of the link have DBA Monitor set to None, Dynamic Bandwidth Allocation is disabled.

Usage: Specify one of the following values:

Dependencies: DBA Monitor is only supported on MP+ calls.

Location: Ethernet > Connections > Encaps Options

See Also: Dyn Alg, Encaps, Idle Pct, Target Util

DCE Addr

Description: Specifies the address of the calling unit in the EU-UI header of packets that the calling unit sends.

Usage: Specify the DCE address. Contact your service provider for the correct address.

Dependencies: This parameter applies only to EU-UI connections.

Location: Ethernet > Connections > Encaps Options

See Also: DTE Addr, Encaps

DCE N392

Description: Specifies the number of errors during DCE N393 monitored events which causes the network side to declare the user side procedures inactive.

Usage: Specify a value between 1 and 10 that is less than DCE N393.

Example: DCE N392=5

Dependencies: This parameter is N/A when FR Type is DTE.

Location: Ethernet > Frame Relay

DCE N393

Description: Specifies the DCE monitored event count (between 1 and 10).

Usage: Specify a value between 1 and 10 that is greater than DCE N392.

Example: DCE N393=7

Dependencies: This parameter is N/A when FR Type is DTE.

Location: Ethernet > Frame Relay

DeadInterval

Description: Specifies the number of seconds the MAX will wait before declaring its neighboring routers down after it stops receiving the router's Hello packets.

Usage: Specify a number. In a Connection profile, the default is 120 seconds. In the Ethernet profile, the default is 40 seconds.

Example: DeadInterval=240

Location: Ethernet > Connections > OSPF Options, Ethernet > Mod Config > OSPF Options

See Also: HelloInterval

Dec Ch Count

Description: Specifies the number of channels the MAX removes as a bundle when bandwidth changes either manually or automatically during a call. You cannot clear a call by decrementing channels

If the data service is 384K/H0 or 384KR, this value should be divisible by 6, because 384 kbps is 6x64 kbps. If the data service is MultiRate or GloBanD and the service you select is a multiple of 64 kbps, this value should be a multiple of 6.

Usage: Specify a number between 1 and 32. The default is 1.

Example: Dec Ch Count=1

Dependencies: This parameter does not apply if all channels of a link are nailed up. In a Call profile, this parameter applies only if the Call Type parameter is set to AIM, FT1-AIM, FT1- B&O, or BONDING and if Call Mgm parameter is set to Manual, Dynamic, or Mode 2.

Location: Host/Dual (Host/6) > PortN Menu > Directory, Ethernet > Connections > Encaps Options

See Also: Base Ch Count, Inc Ch Count, Max Ch Count

Default Zone

Description: Specifies the default zone for nodes on an AppleTalk seed router's internet. All AppleTalk nodes on the seceded network use the default zone until a user explicitly selects a different zone name. A zone is a multicast address containing an arbitrary subset of the AppleTalk nodes in an internet. Each node belongs to only one zone, but a particular extended network can contain nodes belonging to any number of zones. Zones provide departmental or other groupings of network entities that a user can easily understand.

Usage: Enter a zone name of up to 33 alphanumeric characters.

In an Ascend AppleTalk router, zone names are not case sensitive. However, some routers regard zone names as case sensitive, and you should be consistent in spelling zone names when you configure multiple connections or routers. Although AppleTalk permits the use of spaces in zone names, it does not consider an underscore to be the same as a space. Since some routers do equate the underscore and the space, or do not recognize a space as a valid character, it is advisable to use only the underscore in a network with routers other than Ascend routers.

Example: Default Zone=SALES

Dependencies: You must select the following:

Location: Ethernet > Mod Config > AppleTalk Options

See Also: AppleTalk, Route AppleTalk, AppleTalk Router, Zone Name #n, Net Start, Net End, Peer (AppleTalk Options)

Def Telnet

Description: Specifies whether the MAX will interpret a command that does not include a keyword as a hostname for a Telnet command. To display the terminal server command keywords, enter help or a question mark (?) from the terminal server command-line interface.

Usage: Specify Yes or No. Yes is the default.

Example: Def Telnet=Yes

Location: Ethernet > Mod Config > TServ Options

Delay Dual

Description: Specifies whether the MAX inserts a ten-second delay between dialing the first and second calls in a dual-port call.

In a dual-port call, a codec performs inverse multiplexing on two channels so that a call can achieve twice the bandwidth of a single channel. Inverse multiplexing is a method of combining individually dialed channels into a single, higher-speed data stream.

The codec provides two ports, one for each channel. Two AIM ports on the MAX connect a dual-port call to the codec; these ports can be the V.35, RS-499, or X.21 ports on the MAX, and are called the primary port and the secondary port. Because the MAX places the two calls in tandem and clears the calls in tandem, it considers them a single call.

Usage: Specify Yes or No. No is the default.

Example: Delay Dual=Yes

Location: System > Sys Config

Delete Digits

Description: Specifies the number of digits deleted from the beginning of the phone number dialed by the device connected to line #2. Typically, a PBX (Private Branch Exchange) is connected to line #2. A PBX is an internal telephone network in which one incoming number directs calls to various extensions and from one office to another.

Use this parameter when the PBX used to be connected to a switch that supplied a T1 line, and that line is now supplied by the MAX. The PBX has to change the numbers it dials. The Delete Digits parameter converts the number the PBX dials to the number presented to the WAN switch.

Usage: Specify the number of digits to delete from the beginning of the phone number. You should specify the number of digits received from the PBX specific to the T1 switch the MAX is emulating.

Example: Delete Digits=2

Dependencies: This parameter applies only to T1 lines using PBX-T1 conversion.

Location: Net/T1 > Line Config > Line N

See Also: Sig Mode

Dest

Description: In a Route profile, Dest specifies the route's target IP address. This is the destination address that will cause the MAX to bring up this route. In a Route profile, the default null address indicates the default route, used for all destinations that have no explicit route in the routing table.

In an SNMP Traps profile, Dest is the IP address to which the MAX sends traps (the IP address of the station running an SNMP management utility). The default null address means that no traps are sent. If the Comm parameter is also null, traps are turned off altogether.

Usage: Specify the destination IP address. The default value is 0.0.0.0/0.

Example: Dest=10.207.23.1

Dependencies: This parameter does not apply if the MAX does not support IP routing.

Location: Ethernet > Static Rtes, Ethernet > SNMP Traps

See Also: Gateway

Dial

Description: Specifies how a call originates at the port. In addition to dialing through the MAX unit's user interface, you can use one of three dialing protocols to dial from the AIM port. These protocols are RS-366, V.25 bis, and X.21.


Note: The Dial parameter setting does not prevent you from dialing manually.

Usage: Specify one of the following values:

Location: Host/Dual (Host/6) > PortN Menu > Port Config

See Also: RS-366 Esc

Dial #

Description: Specifies the number used to dial out this connection. It can contain up to 24 characters, which may include a dialing prefix that directs the connection to use a trunk group or dial plan; for example: 6-1-212-555-1212.

In Call profiles, if the call type specifies a two-channel call, you can specify two phone numbers to total up to 49 characters. The two numbers must be separated by an exclamation mark, for example: 5551212!5551234


Note: The phone number may contain a subaddress or trunk-group number. If the use of trunk groups is enabled in the System profile, this parameter must specify a trunk group as the first digit.

Usage: Specify a phone number up to 24 characters. The MAX sends only the numeric characters to place a call. You must limit the number to these characters: 1234567890()[]!z-*#|

Example: Dial #=6-1-808-555-1212

Dependencies: This parameter is inapplicable for leased connections or connections using Frame Relay encapsulation.

Location: Host/Dual (Host/6) > PortN Menu > Directory, Ethernet > Connections, Ethernet > Frame Relay, Ethernet > X.25

See Also: B1 Trnk Grp, B2 Trnk Grp, Call Type, Ch N Trnk Grp, Dial Plan, Encaps, Sub-Adr, Use Trunk Grps

Dial N# (N=1-6)

Description: Specifies the phone numbers that reach the destination of the profile.

Usage: Specify a phone number for each Dial N# parameter. You can enter up to 24 characters, and you must limit those characters to the following:

The MAX sends only the numeric characters to place a call. The default value is null.

In a Call profile, when Call Type=2 Chnl, the Dial N# parameter accepts a single telephone number containing up to 49 characters, or two phone numbers containing up to 24 characters each. The two phone numbers must be separated by an exclamation point, as in this specification:

The first digit of Dial N# must match a trunk group defined by Ch N Trnk Grp parameter in a Line profile. For example, suppose the first digit of Dial 1#=4-555-1234 is 4. The MAX places the call over the corresponding trunk group.

If the Dial Plan specifies Trunk Grp, the digits following the first digit constitute an ordinary phone number. If the Dial Plan is Extended, the two digits that point to a Dial Plan profile come next, followed by an ordinary phone number.

Dependencies: This parameter is inapplicable unless trunk groups are enabled in the System profile.

Location: System > Destinations

See Also: B1 Trnk Grp, B2 Trnk Grp, Ch N Trnk/Grp, Use Trunk Grps, Dial Plan

Dial Brdcast

Description: Specifies whether the MAX will dial this connection when it receives Ethernet broadcast packets. By default, the MAX does not dial-on-broadcast; it relies on its internal bridging table to bring up specific bridged connections.

If dial-on-broadcast is enabled in one or more Connection profiles, the MAX brings up all of those profiles whenever it receives Ethernet broadcast packets. It never uses a bridging table entry for those connections, even if one exists.

Usage: Specify Yes or No. No is the default.

Dependencies: This parameter applies only if the Connection profile enables bridging and allows outgoing calls.

Location: Ethernet > Connections

See Also: Connection #, Bridge, AnsOrig

Dial Plan

Description: Specifies whether a module uses trunk groups or the extended dial plan. The extended dial plan is typically used to route calls from a terminating device on a Host BRI line out to the WAN using PRI channels. However, it can also be used to set up the PRI parameters for other outbound calls.

Usage: Specify one of the following values:

Example: Dial Plan=Trunk Grp

Location: Ethernet > Mod Config > WAN Options, Host/BRI > Line Config > Line N, Host/ Dual (Host/6) > PortN Menu > Port Config, BRI/LT > Line Config > Line N

See Also: B1 Trnk Grp, B2 Trnk Grp, Call-by-Call, Ch N Trnk Grp, Data Svc, Dial #, Dial N#, PRI # Type

Dial Query

Description: Specifies whether the MAX places a call to the location indicated in the Connection profile when a workstation on the local IPX network looks for the nearest IPX server. More than one Connection profile can have this parameter set to Yes. As a a result, several connections can occur at the same time.

Usage: Specify Yes or No. No is the default.

Dependencies: If there is an entry in the MAX unit's routing table for the location specified by the Connection profile, Dial Query has no effect.

Location: Ethernet > Connections > IPX Options

Dialout OK

Description: Specifies whether or not the Connection profile can be used to dial out using one of the MAX unit's digital modems.

Usage: Specify Yes or No. The default is No.

Example: Dialout OK=Yes

Dependencies: This parameter is not applicable unless Imm. Modem Access is set to User.

Location: Ethernet > Connections > Telco Options

See Also: Imm. Modem Access

Direct Call Addr

Description: For DTE-initiated calls, this specifies the default host's X.121 address.

Usage: Specify an alphanumeric string. You can enter up to 15 characters. The default is null.

Dependencies: This parameter is always applicable.

Location: Ethernet > Connections > any Connection profile > Encaps options
Ethernet > Answer > T3POS options

Disc on Auth Timeout

Description: Specifies whether the MAX gracefully shuts down the PPP connection on a external authentication server timeout.

Usage: Specify Yes or No. No is the default.

Dependencies: This parameter applies only to PPP connections.

Location: Ethernet > Answer > PPP Options

See Also: PPP

DLCI

Description: Specifies a frame relay DLCI number for a gateway or circuit connection. A DLCI is a number between 16 and 991, which is assigned by the frame relay administrator. A DLCI is not an address, but a local label that identifies a logical link between a device and a frame relay switch. The switch uses the DLCI to route frames through the network, and the DLCI may change as frames are passed through multiple switches.

The MAX receives an incoming PPP call, examines the destination address, and brings up the appropriate Connection profile to that destination, as usual. If the Connection profile specifies frame-relay encapsulation, the Frame Relay profile, and a DLCI, the MAX encapsulates the packets in frame relay (RFC 1490) and forwards the data stream out to the frame relay switch using the specified DLCI. The frame relay switch uses the DLCI to route the frames. This is known as gateway mode.

Usage: Specify a number between 16 and 991. The default is 16. Ask your frame relay network administrator for the value you should enter.

Example: DLCI=17

Dependencies: This parameter applies only to FR and FR_CIR encapsulated calls.

Location: Ethernet > Connections > Encaps Options

See Also: Encaps, FR Direct, FR DLCI

DM

Description: Specifies the subaddress associated with the MAX unit's digital modems. The MAX routes an incoming call whose subaddress matches the value of DM to the first available digital modem; the MAX handles such a call as a terminal server call. If the subaddress matches DM, but no digital modem is available, the MAX clears the call.

Usage: Specify a subaddress. You can specify a number between 0 and 99. The default is 0.

Dependencies: This parameter is ignored if the Sub-Adr parameter is not set to Routing.

Location: System > Sys Config

See Also: Ans N#, Sub-Adr

Domain Name

Description: Specifies the local DNS domain name. The domain name is used for DNS lookups. When the MAX is given a hostname to look up, it tries various combinations including appending the configured domain name. The secondary domain name (Sec Domain Name) can specify another domain name that the MAX can search using DNS.

Usage: Specify the domain name of the MAX. You can enter up to 63 characters.

Location: Ethernet > Mod Config > DNS

See Also: Pri DNS, Sec DNS, Sec Domain Name

Download

Description: Enables or disables permission to download the configuration of the MAX using the Save Cfg parameter. Passwords are not saved to file.


Note: Passwords are not saved when you download the configuration. If you upload a saved configuration, all passwords are wiped out.

Usage: Specify Yes or No. No is the default.

Dependencies: This parameter is not applicable if the Operations permission is disabled.

Location: System > Security

See Also: Chapter 4, MAX Diag Command Reference.

DownMetric

Description: This parameter specifies the metric for a route whose associated WAN connection is down.

Usage: Specify an integer. The higher the metric, the less likely that the MAX will use the route. The default metric for online WAN connections is 1. The default metric for offline WAN connections is 7. The metric you specify is in effect only as long as the WAN connection is down.

See Also: DownPreference

DownPreference

Description: This parameter specifies the preference value for a route whose associated WAN connection is down.

Usage: Specify an integer. A higher preference number represents a less desirable route. The default preference for online WAN connections is 60. The default preference for offline WAN connections is 120. The preference you specify is in effect only as long as the WAN connection is down.

Dependencies: Make sure that routes for offline connections have a higher preference number than routes for online connections. The following table lists the factory default values for route preferences.

Table 3-2. Default route preferences

Route type

Default value

Interface

0

ICMP

30

RIP

100

OSPF ASE

150

OSPF Internal

10

Static

60

Down-Wan

120

Infinite

225

See Also: DownMetric

DS0 Min Rst

Description: Specifies when the MAX should reset accumulated DS0 minutes to 0 (zero); you can also use this parameter to specify that the MAX should disable the timer altogether.

A DS0 minute is the online usage of a single 56-kbps or 64-kbps switched channel for one minute. When the usage exceeds the maximum specified by the Max DS0 Mins parameter, the MAX cannot place any more calls, and takes any existing calls offline.

In a System profile, the accumulated minutes apply to all ports on the MAX and to the Ethernet module. In a Port profile, the accumulated minutes apply only to the associated AIM port.

Usage: Specify one of the following values:

Location: System > Sys Config, Host/Dual (Host/6) > PortN Menu > Port Config

See Also: Max Call Mins, Max DS0 Mins

Dst Adrs

Description: Specifies a destination IP address. After this value has been modified by applying the specified Dst Mask, it is compared to a packet's destination address.

Usage: Specify a destination IP address the MAX should use for comparison when filtering a packet. The zero address 0.0.0.0 is the default. If you accept the default, the MAX does not use the destination address as a filtering criterion.

Example: Dst Adrs=10.62.201.56

Dependencies: This parameter applies only to filters of type IP.

Location: Ethernet > Filters > Input filters > In filter N > IP, Ethernet > Filters > Output filters > Out filter N > IP

See Also: Dst Mask

Dst Mask

Description: Specifies a mask to apply to the Dst Adrs before comparing it to the destination address in a packet. You can use it to mask out the host portion of an address, for example, or the host and subnet portion.

The MAX applies the mask to the address using a logical AND after the mask and address are both translated into binary format. The mask hides the portion of the address that appears behind each binary 0 (zero) in the mask. A mask of all zeros (the default) masks all bits, so all destination addresses are matched. A mask of all ones (255.255.255.255) masks no bits, so the full destination address to a single host is matched.

Usage: Specify the mask in dotted decimal format. The zero address 0.0.0.0 is the default; this setting indicates that the MAX masks all bits. To specify a single destination address, set Dst Mask=255.255.255.255 and set Dst Adrs to the IP address that the MAX uses for comparison.

Example: Dst Mask=255.255.255.0

Dependencies: This parameter applies only to filters of type IP.

Location: Ethernet > Filters > Input filters > In filter N > IP, Ethernet > Filters > Output filters > Out filter N > IP

See Also: Dst Adrs

Dst Port #

Description: Specifies a value to compare with the destination port number in a packet. The default setting (zero) indicates that the MAX disregards the destination port in this filter. Port 25 is reserved for SMTP; that socket is dedicated to receiving mail messages. Port 20 is reserved for FTP data messages, port 21 for FTP control sessions, and port 23 for telnet.


Note: The Dst Port Cmp parameter specifies the type of comparison to be made.

Usage: Specify the number of the destination port the MAX should use for comparison when filtering packets. You can enter a number between 0 and 65535. The default setting is 0 (zero), which means the MAX does not compare destination ports

Example: Dst Port #=25

Dependencies: This parameter applies only to filters of type IP.

Location: Ethernet > Filters > Input filters > In filter N > IP, Ethernet > Filters > Output filters > Out filter N > IP

See Also: Dst Port Cmp, Src Port Cmp, Src Port #

Dst Port Cmp

Description: Specifies the type of comparison the MAX makes when using the Dst Port # parameter.

Usage: Specify one of the following values:

Dependencies: This parameter works only for TCP and UDP packets. You must set it to None if the Protocol parameter is not set to 6 (TCP) or 17 (UDP).

Location: Ethernet > Filters > Input filters > In filter N > IP, Ethernet > Filters > Output filters > Out filter N > IP

See Also: Dst Port #

DTE Addr

Description: Sets the address of the called unit in the EU-UI header of packets that the called unit sends.

Usage: Specify the address. Contact your service provider for the correct address.

Dependencies: This parameter applies only to EU-UI connections.

Location: Ethernet > Connections > Encaps Options

See Also: DCE Addr, Encaps

DTE init. mode

Description: For DTE-initiated calls, this specifies the default data transfer mode. Note that the DTE can override this setting with a opening frame.

Usage: Specify one of the following values:

Dependencies: This parameter is always applicable.

Location: Ethernet > Connections > any Connection profile > Encaps options
Ethernet > Answer > T3POS options

DTE N392

Description: Specifies the number of errors during DTE N393 monitored events which cause the user side to declare the network side procedures inactive.

Usage: Specify a value between 1 and 10 that is less than DTE N393.

Example: DTE N392=3

Dependencies: This parameter is N/A when FR Type is DCE.

Location: Ethernet > Frame Relay

DTE N393

Description: Specifies the DTE monitored event count (between 1 and 10). It is N/A when FR Type is DCE.

Usage: Specify a value between 1 and 10 that is greater than DTE N392.

Example: DTE N393=5

Dependencies: This parameter is N/A when FR Type is DCE.

Location: Ethernet > Frame Relay

Dual Ports

Description: Specifies whether the AIM ports in a module or in the base system are paired for dual-port calls. If you are configuring the interface to an older model codec that does not support AIM, you can use the pair two AIM ports to provide double the bandwidth for the videoconferencing call. A dual-port call requires that the codec has a dual-port interface.

In a dual-port call, the codec performs its own inverse multiplexing on two channels so that a call can achieve twice the bandwidth of a single channel. A pair of AIM ports on the MAX connects to the codec. The pair includes a primary and secondary port. Because the MAX places the two calls in tandem and clears the calls in tandem, it considers them a single call.

Creating a dual-port configuration does not prevent you from dialing any other type of call from the primary host port of the pair, or from using either port for receiving any call type. Pairing ports does not disable RS-366 dialing at the secondary port.

Usage: Specify one of the following values:

Example: Dual Port=No Dual

Location: Host/Dual (Host/6) > Mod Config

Dyn Alg

Description: Specifies an algorithm for calculating average line utilization (ALU) over a certain number of seconds (Sec History).

Usage: Specify one of the following values:

Location: Ethernet > Answer > PPP Options, Host/Dual (Host/6) > PortN Menu > Directory, Ethernet > Connections > Encaps Options

See Also: Add Pers, Dec Ch Count, Dyn Alg, Inc Ch Count, Max Ch Count, Sec History, Sub Pers, Target Util

E

Early CD

Description: Specifies when the MAX raises CD (Carrier Detect) at its AIM port. An AIM port uses pins for controlling the data flow through the port. A device sends a signal through a pin and over the line to another device; the signal being sent determines the control-line state. When a device receives a signal indicating that a sender has data to transmit, it raises CD. The process of sending synchronization signals between devices is called handshaking.

Usage: Specify one of the following values:

Example: Early CD=None

Location: Host/Dual (Host/6) > PortN Menu > Port Config

Edit

Description: Enables you to customize which status windows are displayed in the vt100 interface at system startup. If you are running the simplified menus, it determines which AIM port the MAX displays. If you enter a null value when running the simplified menus, the MAX displays host port #1.

Usage: Specify a slot and port address using the format XY-NNN.

Example: Edit=00-000

Location: System > Sys Config

Edit All Calls

Description: Enables or disables permission to edit all the parameters in all Call profiles and Connection profiles. When the permission is disabled, the operator is restricted to editing only the Dial # and Base Ch Count parameters in the current Call profile. The operator may access the profiles via Telnet, by local management, or by remote management.


Note: To restrict editing entirely, you must also disable the Edit Cur Call permission.

Usage: Specify Yes or No. Yes is the default.

Dependencies: This parameter does not apply if the Operations permission is disabled.

Location: System > Security

See Also: Edit Com Call, Edit Cur Call, Edit Own Call

Edit All Ports

Description: Enables or disables permission to edit all Port profiles. When the permission is disabled, the operator is restricted to editing only the current Port profile. The operator may access the profiles via Telnet, by local management, or by remote management.


Note: To restrict editing Port profiles entirely, you must also disable the Edit Own Port permission.

Usage: Specify Yes or No. Yes is the default.

Dependencies: This parameter does not apply if the Operations permission is disabled.

Location: System > Security

See Also: Edit Own Port

Edit Com Call

Description: Specifies whether an operator can edit Call profiles that are not specific to any AIM port. These profiles are known as common Call profiles. Numbers 201 through 216 denote port-specific Call profiles. Numbers 217 through 232 denote common Call profiles. The operator may access the profiles via Telnet, by local management, or by remote management.


Note: To restrict editing common Call profiles entirely, you must also disable the Edit All Calls permission.

Usage: Specify Yes or No. Yes is the default if Edit All Calls is set to No.

Dependencies: This parameter does not apply if the Operations permission is disabled or the Edit All Calls permission is set to Yes.

Location: System > Security

See Also: Edit All Calls

Edit Cur Call

Description: Specifies whether an operator can edit all the parameters in the current Call profile. When the permission is disabled, the operator is restricted to editing only the Dial # and Base Ch Count parameters in the current Call profile. The operator may access the profiles via Telnet, by local management, or by remote management.


Note: To restrict editing entirely, you must also disable the Edit All Calls permission.

Usage: Specify Yes or No. Yes is the default if Edit All Calls is set to No.

Dependencies: This parameter does not apply if the Operations permission is disabled or the Edit All Calls permission is set to Yes.

Location: System > Security

See Also: Edit All Calls

Edit Line

Description: Specifies whether an operator can edit Line profiles. The operator may access the profiles via Telnet, by local management, or by remote management.

Usage: Specify Yes or No. No is the default.

Dependencies: This parameter does not apply if the Operations permission is disabled.

Location: System > Security

Edit Own Call

Description: Specifies whether an operator can edit the Call profile for the port that has been called. The operator may access the profiles via Telnet, by local management, or by remote management.


Note: To restrict editing entirely, you must also disable the Edit All Calls permission.

Usage: Specify Yes or No. Yes is the default if Edit All Calls is set to No.

Dependencies: This parameter does not apply if the Operations permission is disabled or the Edit All Calls permission is set to Yes.

Location: System > Security

See Also: Edit All Calls

Edit Own Port

Description: Enables or disables permission to edit the Port profile for the port that has been called.


Note: To restrict editing Port profiles entirely, you must also disable Edit All Port.

Usage: Specify Yes or No. Yes is the default if Edit All Ports is set to No.

Dependencies: This parameter does not apply if the Operations permission is disabled or the Edit All Ports permission is set to Yes.

Location: System > Security

See Also: Edit All Ports

Edit Security

Description: Enables or disables permission to edit Security profiles.


Note: Do not set the Edit Security parameter to No in all Security profiles; if you do, you will be unable to edit any of them. This is the most powerful security permission, because it gives the operator the ability to modify his or her own permissions.

Usage: Specify Yes or No. Yes is the default.

Dependencies: This parameter does not apply if the Operations permission is disabled.

Location: System > Security

Edit System

Description: Enables or disables permission to edit the System profile and the Read Comm and R/W Comm parameters in the Ethernet profile.

Usage: Specify Yes or No. Yes is the default.

Dependencies: This parameter does not apply if the Operations permission is disabled.

Location: System > Security

Enable ASBR

Description: Specifies whether the MAX performs ASBR calculations. ASBRs (autonomous system border routers) perform calculations related to external routes. The MAX imports external routes from RIP-for example, when it establishes a WAN link with a caller that does not support OSPF-and the ASBR calculations are always performed. If you must prevent the MAX from performing ASBR calculations, you can disable the calculations by setting this parameter.

Usage: Specify Yes or No. Yes is the default and should be used for most installations.

Example: Enable ASBR=Yes

Dependencies: This parameter does not apply unless OSPF is in use.

Location: Ethernet > Mod Config > OSPF global options

Enabled

Description: Enables or disables an ISDN BRI line.

Usage: Specify Yes or No. Yes is the default.

Location: Net/BRI > Line Config > Line N, BRI/LT > Line Config > Line N, Host/BRI > Line Config > Line N

Enable Local DNS Table

Description: Enables the use of a local DNS table that can provide a list of IP addresses for a specific host when the remote DNS server fails to resolve the host name successfully. The local DNS table provides the list of IP addresses only if the host name for the attempted connection matches a host name in the local DNS table.

Usage: Select Enable Local DNS Table=Yes to enable the local DNS table. No disables the feature. No is the default.

Location: Ethernet Profile: Ethernet > Mod Config > DNS

See Also: The dnstab entry terminal command.

Encaps

Description: Specifies the encapsulation method to use when exchanging data with a remote network. Both sides of the link must use the same encapsulation for the connection to be established.


Note: When you specify an encapsulation method, the Encaps Options submenu displays a group of parameters relevant to your selection; you must set the appropriate Encaps Options parameters.

Usage: Specify one of the following values:

Example: Encaps=MPP

Dependencies: The encapsulation type must be enabled in the Answer profile.

Location: Ethernet > Connections

See Also: MPP, MP, PPP, COMB, FR, X25/PAD, V.120, TCP-CLEAR, ARA, X25/IP

Encaps Type

Description: Specifies which encapsulation to use when calling the remote IP network across X.25. When receiving a call, the MAX will accept any of the three encapsulation types.

Usage: Specify one of the following values:

Example: Encaps Type=RFC877

Dependencies: This parameter applies only to X.25/IP connections.

Location: Ethernet > Connections > Encaps Options

See Also: Encaps

Encoding

Description: Specifies the type of T1 PRI line encoding that the MAX uses. Your carrier can tell you which type of encoding you require.

Usage: Specify one of the following values:

Example: Encoding=AMI

Dependencies: This parameter applies only to T1 lines.

Location: Net/T1 > Line Config > Line N

Enet Adrs

Description: In a Bridge profile, specifies the physical Ethernet address (MAC address) of a device at the remote end of the link. The Bridge profile correlates a remote MAC address with a Connection profile number, enabling the MAX to bring up that Connection when it receives packets destined for the remote device.

Usage: Specify the physical address of the device on the remote network. An Ethernet address is a 12-digit hexadecimal number. The default setting is 000000000000.

Example: Enet Adrs=0180C2000000

Location: Ethernet > Bridge Adrs

See Also: Net Adrs

ENQ handling

Description: Specifies whether the PAD should expect to receive an ENQ from the host when an X.25 virtual call is established. ENQ indicates that the host is ready to receive data.

Usage: Specify one of the following values:

Dependencies: This parameter is always applicable.

Location: Ethernet > Connections > any Connection profile > Encaps options
Ethernet > Answer > T3POS options

EOC Address

Description: Specifies the Embedded Operations Channel (EOC) address from which the MAX rollbacks the signal.

Usage: Specify one of the following values:


Note: The EOC address setting reverts to its default value of 0 whenever you exit the Line Diag submenu.

Location: BRI/LT > Line Diag > line n

EU-RAW

Description: Specifies whether the MAX accepts EU-RAW calls, provided that they meet all other X.75 criteria.

Usage: Specify Yes or No. Yes is the default.

Location: Ethernet > Answer > Encaps

EU-UI

Description: Specifies whether the MAX accepts EU-UI calls, provided that they meet all other X.75 criteria.

Usage: Specify Yes or No. Yes is the default.

Location: Ethernet > Answer > Encaps

Excl Routing

Description: Enables or disables exclusive port routing. Exclusive port routing is a way to prevent the MAX from accepting calls for which it has no explicit routing destination. If Excl Routing is disabled (the default), the call is routed to a digital modem if the bearer service is voice. If the service is V.110, it is routed to the first available V.110 module. If the service is data, it is routed to the first available AIM port; or if no AIM ports are available, it is routed to the MAX unit's bridge/router. To prevent this service-based routing and instead reject the call, turn Excl Routing on.

Usage: Specify Yes or No. No is the default.

Example: Excl Routing=No

Location: System > Sys Config

Exp Callback

Description: Specifies whether the MAX expects outgoing calls to result in a call back from the far-end device. Use this parameter when the remote device requires callback security.

Usage: Specify Yes or No. No is the default.

Example: Exp Callback=No

Location: Ethernet > Connections > Telco Options

See Also: Callback

F

Fail Action

Description: Specifies the action that the MAX takes when it cannot establish the base channels of a codec connection.

Usage: Specify one of the following values:

Example: Fail Action=Retry

Location: Host/Dual (Host/6) > PortN Menu > Directory

FDL

Description: Specifies the FDL (Facilities Data Link) protocol that the MAX uses. FDL is a protocol used by the telephone company to monitor the quality and performance of T1 lines. It provides information at regular intervals to your carrier's maintenance devices.

You continue to accumulate D4 and ESF performance statistics in the FDL Stats windows, even if you do not choose an FDL protocol. Your carrier can tell you which FDL protocol to specify.

Usage: Specify one of the following values:

Dependencies: This parameter does not apply to D4-framed T1 lines.

Location: Net/T1 > Line Config > Line N

See Also: Framing Mode

Field Service

Description: Enables or disables permission to perform Ascend-provided field service operations, such as uploading new system software. Field service operations are special diagnostic routines not available through MAX menus.

Usage: Specify Yes or No. Yes is the default.

Example: Field Service=No

Dependencies: This parameter is not applicable if the Operations permission is disabled.

Location: System > Security

Filter

Description: Specifies the number of a data filter that plugs into the Ethernet profile. The data filter manages data flow on the Ethernet interface. The filter examines each incoming or outgoing packet, and uses the Forward parameter to determine whether to forward or discard it.

Usage: Specify a number between 0 and 199. The number you enter depends on the whether you are applying a filter you created using the vt100 interface, or a firewall you created using Secure Access Manager (SAM).

If you are applying a filter created using the vt100 interface, enter the last 2 digits of the filter number as it appears in the Filters menu.

If you are applying a firewall created with SAM, add 100 to the last 2 digits of the firewall number as it appears in the Firewalls menu. For example, if the number of your firewall is 90-601, specify 101. Refer to your SAM documentation for infomation on downloading firewalls to the MAX. The numbering scheme for filters and firewalls is:

When you set Filter to 0 (zero), the MAX forwards all data packets.

Example: Filter=7

Location: Ethernet > Mod Config > Ether Options

See Also: Call Filter, Data Filter

Filter Persistence

Description: Specifies whether the filter or firewall assigned to a Connection profile should persist after the call has been disconnected.

Before Secure Access was supported, the MAX simply constructed a filter on a WAN interface when the connection was established and destroyed the filter when the connection was brought down, even if the connection just timed out momentarily. This works fine for static packet filters, but does not accommodate Secure Access firewalls. Filter Persistence is needed to allow firewalls to persist across connection state changes, but it is not needed for filters. If you do set it for a static packet filter, the filter persists across connection state changes. See the MAX Security Supplement for details.


Note: Firewalls must have persistence to work correctly, but filters do not.

Usage: Specify Yes or No. No is the default.

Example: Filter Persistence=Yes

Location: Ethernet > Answer > Session options, Ethernet > Connections > Session options

See Also: Call Filter, Data Filter, Name, Version, Length

Finger

Description: Enables or disables the Finger remote user information protocol (RFC 1288). Finger returns information about users currently logged into the MAX. Note that for security reasons the MAX does not forward Finger requests.

Usage: Specify one of the following values:

Location: Ethernet > Mod Config

Flag Idle

Description: Specifies whether a dynamic call to an AIM port looks for a flag pattern (01111110) or a mark pattern (11111111) as the idle indicator.

Usage: Specify Yes or No. Yes is the default.

Example: Flag Idle=Yes

Location: Host/Dual (Host/6) > PortN Menu > Directory

Force56

Description: Specifies whether the MAX uses only the 56-kbps portion of a channel, even when all 64 kbps appear to be available.

Use this feature when you place calls to European or Pacific Rim countries from within North America and the complete path cannot distinguish between the Switched-56 and Switched-64 data services. This feature is not required if you are placing calls only within North America.

Usage: Specify Yes or No. No is the default.

Dependencies: This parameter should not be enabled for calls within North America.

Example: Force56=No

Location: Host/Dual (Host/6) > PortN Menu > Directory, Ethernet > Connections > Telco Options, Ethernet > Answer

Forward

Description: Specifies whether the MAX discards or forwards packets that match the filter specification. When no filters are in use, the MAX forwards all packets by default. When a filter is in use, the default is to discard matching packets (Forward=No).

Usage: Specify Yes or No. No is the default.

Example: Forward=No

Location: Ethernet > Filters > Input filters > In filter N > IP, Ethernet > Filters > Output filters > Out filter N > IP

See Also: Call Filter, Data Filter, Filter, More

Forwarding

Description: Enables multicast forwarding in the MAX.


Note: When you change the Forwarding parameter from No to Yes, the multicast subsystem reads the values in the Ethernet profile and initiates the forwarding function. If you modify a multicast value in the Ethernet profile, you must set this parameter to No and then set it to Yes again to force a read of the new value.

Usage: Specify Yes or No. No is the default.

Example: Forwarding=Yes

Location: Ethernet > Mod Config > Multicast

See Also: Mbone profile, Multicast Client

FR

Description: Specifies whether the MAX accepts incoming frame relay-encapsulated calls.

Usage: Specify Yes or No. Yes is the default.

Location: Ethernet > Answer > Encaps

See Also: Encaps, FR Prof, DLCI

FR Direct

Description: Specifies whether the MAX redirects incoming packets to the frame relay switch without processing. A redirect connection is a dial-in IP routing connection (typically using PPP), for which the MAX simply forwards the packets automatically to the frame-relay switch without examining destination addresses or its routing table. In effect, the MAX passes on the responsibility of routing those packets to a later hop on the frame relay network. This is known as redirect mode, and is not commonly used.


Note: A frame relay redirect connection is not a full-duplex tunnel between the PPP dial-in and the switch. The IP packets coming back from the frame relay switch are handled by the MAX router software, so they must contain the PPP caller's IP address to be routed correctly back across the WAN.

Usage: Specify Yes or No. No is the default.

Example: FR Direct=No

Dependencies: This parameter is not applicable for FR or FR_CIR encapsulated calls.

Location: Ethernet > Connections > Session Options

See Also: FR DLCI, FR Prof

FR DLCI

Description: Specifies a frame relay DLCI number to be used for redirect connections. A redirect connection is a dial-in IP routing connection (typically using PPP), for which the MAX simply forwards the packets automatically to the frame-relay switch without examining destination addresses or its routing table. In effect, the MAX passes on the responsibility of routing those packets to a later hop on the frame relay network. This is known as redirect mode, and is not commonly used.


Note: More than one redirected PPP connection can share a frame relay DLCI.

Usage: Specify the DLCI obtained from the frame relay administrator for redirect links.

Example: FR DLCI=72

Dependencies: This parameter is not applicable if frame relay encapsulation is in use.

Location: Ethernet > Connections > Session Options

See Also: FR Direct

FR Prof

Description: Specifies the name of the Frame Relay profile to use for forwarding this link on the frame relay network.

Usage: Specify the name of a configured Frame Relay profile. This is the string assigned in the Name parameter of the Frame Relay profile, specified exactly including case changes.

Example: FR Prof=pacbell

Location: Ethernet > Connections > Encaps Options, Ethernet > Connections > Session Options

See Also: FR Type, DLCI

FR Type

Description: Specifies the type of interface between the MAX and a frame relay switch or CPE (customer premises equipment) on the frame relay network.


Note: For NNI or UNI-DTE connections, the MAX is able to query the device at the other end of the link about the status of the DLCIs in the connection. If any of the DLCIs become unusable and the DLCIs Connection profile has a specified Backup connection, the MAX dials the Connection profile specified in the Backup parameter in the Session Options submenu.

Usage: Specify one of the following values:

Example: FR Type=NNI

Location: Ethernet > Frame Relay

See Also: LinkUp, FR Prof, DLCI, Circuit

Framed Only

Description: Specifies whether the user is allowed access to all the terminal server commands or to a subset of them.

Usage: Specify one of the following values:

Dependencies: Keep this additional information in mind:

Location: Ethernet > Answer > Session Options
Ethernet > Connections > any Connection profile > Session Options

Frame Length

Description: Specifies the maximum number of bytes allowed in the information field by V.120 or X.75 terminal adapters that call the MAX.

Usage: For a V.120 TA, specify a number between 30 to 260. The default is 256. For an X.75 TA, specify a number between 128 and 2048. The default value is 2048.

Example: Frame Length=256

Location: Ethernet > Answer > V.120 Options, Ethernet > Answer > X.75 Options

See Also: K Window Size, N2 Retransmission Count, T1 Retransmission Timer, X.75

Framed Addr Start

Description: This parameter specifies whether the Ascend unit sends a second accounting Start record to the RADIUS server when the Framed-Address and Framed-Protocol attributes are assigned to a user transferring to a framed protocol (such as PPP or SLIP).

Usage: You can specify one of these settings:

Location: Ethernet profile: Ethernet > Mod Config > Auth

Framing Mode

Description: Specifies the framing mode the T1 or E1 physical layer uses. Your carrier can tell you which framing mode to choose.


Note: If the MAX has internal bantam test jacks, it can support a different framing mode for each line in a Drop-and-Insert application. If you set the second line to drop-and-insert and use Inband signaling, you can set Framing Mode to ESF on one line and D4 on the other.

Usage: Specify one of the following values for a Net/T1 line:

For a Net/E1 line, specify one of the following values:

Location: Net/T1 > Line Config > Line N, Net/E1 > Line Config > Line N

FT1 Caller

Description: Specifies whether the MAX initiates an FT1-AIM, FT1-B&O, or Nailed/MPP call, or whether it waits for the remote end to initiate these types of calls. If the remote end has FT1 Caller set to No, set it to Yes on the local MAX; by the same token, if the remote end has FT1 Caller set to Yes, set it to No on the local MAX.

Usage: Specify Yes or No. No is the default.

Dependencies: This parameter applies only when the call type is FT1-AIM or FT1-B&O (in a Port profile) or Nailed/MPP (in a Connection profile). It should be set to Yes at only one side of the connection.

Location: Host/Dual (Host/6) > PortN Menu > Directory, Ethernet > Connections > Telco Options

See Also: Call Type

G

Gateway

Description: Specifies the IP address of the next-hop router that a packet must go through to reach the route's destination address. A next-hop router is either directly connected (on Ethernet) or is one hop away on a WAN link.

Usage: Specify the IP address of the next-hop router.

Example: Gateway=200.207.23.1

Dependencies: This parameter does not apply if the MAX does not support IP routing.

Location: Ethernet > Static Rtes

See Also: Dest

GK IP Adrs

Description: Specifies the IP address of the MultiVoice Access Manager. When the MAX, acting as a MultiVoice Gateway, receives voice calls, the MultiVoice Access Manager directs the MultiVoice Gateway how to route the call to a destination MultiVoice Gateway.

Usage: Specify the IP address of the MultiVoice Access Manager.

Example: GK IP Adrs=10.10.10.1/24

Dependencies: GK IP Adrs does not apply if the MAX does not support IP routing or does not act as a MultiVoice Gateway.

Location: Ethernet > Mod Config > VOIP Options

See Also: VPN Mode, Pkt Audio Mode

Group

Description: Assigns a group of nailed channels to a connection. For connections whose call type is Nailed/MPP, you can concatenate group numbers by separating them with a comma; for example, Group=1,3,5,7 assigns four groups of nailed channels.


Note: Nailed channels are used for permanent connections, which are typically leased. It is important to keep those channels dedicated to the connection. Do not assign the same group number to more than one profile of any type.

Usage: Specify the group number assigned to nailed channels in a Line profile.

Example: Group=3

Location: Host/Dual (Host/6) > PortN Menu > Directory, Ethernet > Connections > Telco Options

See Also: Call Type, Ch N Prt/Grp, Ch N

H

Handle IPX

Description: Specifies IPX server or IPX client bridging.


Note: If NetWare servers are supported on both sides of the WAN connection, we strongly recommend that you use an IPX routing configuration instead of bridging IPX. If you bridge IPX in that type of environment, client-server logins will be lost when the MAX brings down an inactive WAN connection.

Usage: Specify one of the following values:

Example: Handle IPX=Client

Dependencies: This parameter does not apply if IPX routing is enabled for this connection.

Location: Ethernet > Connections > IPX Options

See Also: Dial Brdcast, NetWare t/o

Handle IPX Type 20

Description: Specifies whether the MAX will propagate IPX type 20 packets over all its interfaces. Some applications (like NETBIOS) use IPX Type 20 packets to broadcast names over a network. By default, these broadcasts are not propagated over routed links, since Novell recommends not forwarding these packets over links that have less than 1 Mbps throughput. However, some applications, like NetBIOS over IPX, require these packets in order to work.

Usage: Specify Yes or No. No is the default.

Dependencies: This parameter does not apply if the MAX does not support IPX routing.

Location: Ethernet > Mod Config > Ether options

HeartBeat Addr

Description: Specifies a multicast address. The MAX listens for packets to and from this group to perform the heartbeat-monitoring feature. When it is running as a multicast forwarder, the MAX is continually receiving multicast traffic. The heartbeat-monitoring feature enables the administrator to monitor possible connectivity problems by continuously polling for this traffic and generating an SNMP alarm trap if there is a traffic breakdown.


Note: Heartbeat monitoring is optional. It is not required for multicast forwarding.

Usage: Specify a multicast address to use for heartbeat monitoring.

Example: HeartBeat Addr=224.1.1.1

Dependencies: To set up heartbeat monitoring, you must configure several parameters that define what packets will be monitored, how often and for how long to poll for multicast packets, and the threshold for generating an alarm. These parameters do not apply if multicast forwarding is not in use.

Location: Ethernet > Mod Config > Multicast

See Also: HeartBeat Udp Port, Source Addr, Source Mask, HeartBeat Slot Time, HeartBeat Slot Count, Alarm Threshold

HeartBeat Udp Port

Description: Specifies a UDP port number. The MAX listens only to packets received on that port to perform the heartbeat-monitoring feature. When it is running as a multicast forwarder, the MAX is continually receiving multicast traffic. The heartbeat-monitoring feature enables the administrator to monitor possible connectivity problems by continuously polling for this traffic and generating an SNMP alarm trap if there is a traffic breakdown.


Note: Heartbeat monitoring is optional. It is not required for multicast forwarding.

Usage: Specify a UDP port to use for heartbeat monitoring.

Example: HeartBeat Udp Port=16387

Dependencies: To set up heartbeat monitoring, you must configure several parameters that define what packets will be monitored, how often and for how long to poll for multicast packets, and the threshold for generating an alarm. These parameters do not apply if multicast forwarding is not in use.

Location: Ethernet > Mod Config > Multicast

See Also: HeartBeat Addr, Source Addr, Source Mask, HeartBeat Slot Time, HeartBeat Slot Count, Alarm Threshold

HeartBeat Slot Count

Description: Specifies how many times to poll for multicast traffic before comparing the number of heartbeat packets received to the Alarm Threshold. The MAX polls for multicast traffic the specified number of times, waits for the interval specified in the HeartBeat Slot Time parameter, and then polls again.


Note: Heartbeat monitoring is optional. It is not required for multicast forwarding.

Usage: Specify a number of seconds.

Example: HeartBeat Slot Count=10

Dependencies: To set up heartbeat monitoring, you must configure several parameters that define what packets will be monitored, how often and for how long to poll for multicast packets, and the threshold for generating an alarm. These parameters do not apply if multicast forwarding is not in use.

Location: Ethernet > Mod Config > Multicast

See Also: HeartBeat Addr, Heartbeat Udp Port, Source Addr, Source Mask, HeartBeat Slot Time, Alarm Threshold

HeartBeat Slot Time

Description: Specifies how often (in seconds) the MAX should poll for multicast traffic. The MAX polls for multicast traffic, waits for this interval, and then polls again.


Note: Heartbeat monitoring is optional. It is not required for multicast forwarding.

Usage: Specify a number of seconds.

Example: HeartBeat Slot Time=10

Dependencies: To set up heartbeat monitoring, you must configure several parameters that define what packets will be monitored, how often and for how long to poll for multicast packets, and the threshold for generating an alarm. These parameters do not apply if multicast forwarding is not in use.

Location: Ethernet > Mod Config > Multicast

See Also: HeartBeat Addr, Heartbeat Udp Port, Source Addr, Source Mask, HeartBeat Slot Count, Alarm Threshold

HelloInterval

Description: Specifies the number of seconds between sending OSPF Hello packets on the interface. OSPF routers use Hello packets to recognize when a router is down.

Usage: Specify a number. In a Connection profile, the default is 40 seconds. In the Ethernet profile, the default is 10 seconds.

Example: HelloInterval=60

Location: Ethernet > Connections > OSPF Options, Ethernet > Mod Config > OSPF Options

See Also: DeadInterval

High BER

Description: Specifies the maximum bit-error rate for any PRI line. The bit-error rate consists of the number of bit errors that occur per second. The number that comes after the double asterisks specifies the power of 10 for the current ratio of error bits to total bits.

Usage: Specify one of the following values:

Location: System > Sys Config

See Also: High BER Alarm

High BER Alarm

Description: Specifies whether the back panel alarm relay closes when the bit-error rate exceeds the value specified by the High BER parameter.

The MAX has an alarm relay whose contacts remain open on the back panel's alarm relay terminal block during normal operation. If you enable them, the alarm relay contacts close during loss of power, hardware failure, or a system reset. The High BER Alarm parameter specifies whether the contacts also close when the bit-error rate exceeds the High BER parameter value.

Usage: Specify Yes or No. No is the default.

Location: System > Sys Config

See Also: High BER

Hop Count

Description: Specifies the number of hops to the destination IPX network. From the MAX, the local IPX network is one hop away. The IPX network at the remote end of the route is two hops away-one hop across the WAN and one hop to the local IPX network.

Usage: Specify a valid hop count from 1 to 15. A hop count of 16 is considered unreachable and is not valid for static routes.

Dependencies: This parameter does not apply if the MAX does not support IPX routing.

Location: Ethernet > IPX Routes

See Also: Route IPX

Host init. mode

Description: For host-initiated calls, this specifies the default data transfer mode. Note that the host can override this setting with a control frame.

Usage: Specify one of the following values:

Dependencies: This parameter is always applicable.

Location: Ethernet > Connections > any Connection profile > Encaps options,
Ethernet > Answer > T3POS options

Host #N Addr (N=1-4)

Description: Specifies the IP address of the first, second, third, and fourth hosts listed in the terminal server menu-mode interface. These are the only hosts to which terminal server users can Telnet or Rlogin to if they are not allowed to enter command mode. Note that you can specify a longer list of hosts using RADIUS.

To specify hosts to which terminal-server users establish raw TCP sessions, enter the identifier rawTcp before the host address (or DNS name).

Usage: Specify the IP address of the host. The default value is 0.0.0.0/0.

To specify that the MAX establish raw TCP sessions instead of Telnet or Rlogin, configure
Host #N Addr using the following format:
rawTcp hostaddress portnumber
where:

Example: Host # Addr=10.207.23.6/24

Dependencies: This parameter is ignored if Remote Conf=Yes. It is not applicable if terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

See Also: Remote Conf

Host #N Text (N=1-4)

Description: Specifies a text description of the first, second, third, and fourth hosts listed in the terminal server menu-mode interface.

Usage: Specify a text description of the host.

Example: Host # Text=Database Server

Dependencies: This parameter is ignored if Remote Conf=Yes. It is not applicable if terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

See Also: Remote Conf

Hunt-n (N=1-3)

Description: These parameters indicate the hunt group numbers associated with the T1 line in a specific Line Profile. An SNMP manager can retrieve these numbers from Ascend devices and store them in a table that includes the devices from which information is retrieved and the hunt group numbers in their WAN Line Profiles.

Usage: Enter the phone number for the hunt group associated with current line in the Hunt-x # parameter.

Example: Hunt-1 #=847-4747

Dependencies: The numbers entered in the Hunt-n # parameters must be the same as the numbers that are assigned to T1 channels, creating the hunt group

Location: Net T1 Line Profile > Line Config

I

ICMP Redirects

Description: Specifies whether the MAX accepts or ignores Internet ICMP Redirect packets. ICMP was designed to dynamically find the most efficient IP route to a destination. ICMP redirect packets are one of the oldest route discovery methods on the Internet and one of the least secure, because it is possible to counterfeit ICMP redirects and change the way a device routes packets.

Usage: Specify one of the following values:

Location: Ethernet > Mod Config

Id Auth

Description: Specifies how CLID (calling line ID) or DNIS (Dial Number Information Service) should be used for authentication.

Usage: Specify one of the following values:

Location: Ethernet > Answer

See Also: AnsOrig, Calling #, Called #

ID Fail Busy (previously CLID Fail Busy)

Description: Specifies whether to return User Busy or Normal Call Clearing as a Cause in IDSN DISCONNECT messages when authentication fails due to a mismatch between the actual number and the expected number.

Usage: Press Enter to toggle between Yes and No. No is the default. If you choose Yes, and the ID authentication fails due to a mismatch between the actual number and the expected number, the DISCONNECT message will have the Cause value User Busy (decimal value 17). If you choose No, the Cause value will be Normal Call Clearing (decimal value 16).

Dependencies: This parameter will be N/A if Auth=None or Auth=TACACS+ in the this profile. The value set in this parameter applies to both Caller ID and Called ID authentication.

This parameter is N/A if ID Auth=Ignore.

Location: Ethernet Profile: Ethernet > Mod Config > Auth

See Also: Timeout Busy

Idle

Description: In the Answer or Connection profile, specifies the number of seconds the MAX waits before clearing a call when a session is inactive. In a Port profile, it specifies the action an AIM port takes when you turn on the power, or if no call is active.

Usage: In the Answer profile or a Connection profile, specify the number of seconds a session can remain idle without being brought down. If you specify 0 (zero), MAX does not enforce a limit; an idle connection stays open indefinitely. The default setting is 120 seconds.

In a Port profile, specify one of the following values:

Dependencies: In a Port profile, this parameter is not applicable when the port's current Call profile is configured for FT1 calls. If the MAX uses a port for FT1-AIM or FT1-B&O calls and Idle is set to Call in the Port profile, you must set Dial to Terminal; if the MAX uses a port for FT1-AIM or FT1-B&O calls, and Idle is set to None in the Port profile, you must set Dial to DTR. Both the local and remote ends must use the same combination of these parameters. Further, if you set Idle to None and Dial to DTR, the hosts at both ends of the connection must make DTR (Data Terminal Ready) active for the MAX to connect the switched channels.

Location: Ethernet > Answer > Session Options, Ethernet > Connections > Session Options, Host/Dual (Host/6) > PortN Menu > Port Config

See Also: Call Type, Dial, Dual Ports, Profile Reqd

Idle Logout

Description: Specifies the number of minutes an administrative login can remain inactive before the MAX logs out and hangs up.

Usage: Specify a number between 0 and 60. The default setting is 0; this setting disables automatic logout.

Location: System > Sys Config

Idle Pct

Description: Specifies a percentage of bandwidth utilization below which the MAX clears an MP+ call. Bandwidth utilization must fall below this percentage on both sides of the connection before the MAX clears the call.

If the device at the remote end of the link enters an Idle Pct setting lower than the value you specify, the MAX does not clear the call until bandwidth utilization falls below the lower percentage. If either end of a connection sets this parameter to 0 (zero), the MAX ignores the parameter on both sides.


Note: When bandwidth utilization falls below the Idle Pct setting on both sides of the connection, the call disconnects regardless of whether the time specified by the Idle parameter has expired.

Usage: Specify a number between 0 and 99. The default value is 0; this setting causes the MAX to ignore bandwidth utilization when determining whether to clear a call.

Dependencies: This parameter applies only to MP+ calls.

Location: Ethernet > Answer > PPP Options, Ethernet > Connections > Encaps Options

See Also: Call Filter, Encaps, Idle

IF Adrs

Description: Specifies a numbered interface IP address for the MAX. Interface-based routing allows the MAX to operate more nearly the way a multi-homed Internet host behaves. In addition to the system-wide IP configuration, the MAX and the far end of the link have link- specific IP addresses. The MAX address for this connection is specified in the IF Adrs parameter. The far-end numbered interface address is specified in the WAN Alias parameter.

Usage: Specify the IP address of the numbered interface.

Example: IF Adr=10.207.23.7/24

Dependencies: This parameter does not apply if the MAX does not route IP.

Parameter Location: Ethernet > Connections > IP options

See Also: WAN Alias, Route IP

Ignore Def Rt

Description: Specifies whether the MAX ignores the default route when updating its routing table via RIP updates. The default route specifies a static route to another IP router, which is often a local router such as a Cisco router or another kind of LAN router. When the MAX is configured to ignore the default route, RIP updates will not modify the default route in the MAX routing table.

Usage: Specify Yes or No. No is the default.

Example: Ignore Def Rt=Yes

Dependencies: This parameter is not applicable if the MAX does not route IP.

Location: Ethernet > Mod Config > Ether Options

Imm. Modem Access

Description: Specifies the type of call restriction in use for the Immediate Modem feature.


Note: Previously, you could set the Imm. Modem Pwd parameter to null to allow unlimited access to the Immediate Modem feature-now you should set Imm. Modem Access to None instead. However, for compatibility reasons, the system still treats the combination of Imm. Modem Access=Global and a null Imm. Modem Pwd parameter as if Imm. Modem Access were set to None.

Usage: Specify one of the following values:

Example: Imm. Modem Access=User

Location: Ethernet > Mod Config > TServ Options

See Also: Dialout OK, Imm. Modem Pwd

Imm. Modem Port

Description: Specifies the port number for Immediate Modem dialout. It tells the MAX that all Telnet sessions initiated with that port number want modem access.

Usage: Specify a port number (5000-65535). The default is 5000.

Location: Ethernet > Mod Config > TServ Options

Dependencies: This parameter is not applicable if terminal services are disabled.

See Also: Immediate Modem

Imm. Modem Pwd

Description: Specifies a password required to dialout using the Immediate Modem service when Imm. Modem Access is set to Global. If this password is non-null, users will be prompted for a password before being allowed access to a modem and modem dialout service will be denied if the user does not enter the proper password.

Usage: Specify a password up to 64 characters.

Location: Ethernet > Mod Config > TServ Options

Dependencies: This parameter is not applicable if terminal services are disabled, if Immediate Modem is disabled, or if Imm. Modem Access is set to None or User.

See Also: Immediate Modem, Imm. Modem Access

Immed Host

Description: Specifies the host to use for terminal server users' immediate service. Immediate service establishes the selected service as soon as the terminal server connection is established.

Usage: If the immediate service is Telnet, Raw-TCP, or Rlogin, specify the IP address or DNS hostname. If the immediate service is X25-PAD, specify the X.121 address (or mnemonic) to call for access to the PAD (Packet Assembler/Disassembler).

Example: Immed Host=host1.abc.com

Dependencies: This parameter is not applicable if terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

See Also: Immed Port, Immed Service

Immed Port

Description: Specifies the TCP port on which immediate Telnet, raw TCP, or Rlogin sessions are established as soon as the terminal server connection is established.

Usage: Specify the port number on the remote device. The default zero indicates port 23.

Dependencies: This parameter is not applicable if Immediate Service is set to X.25/PAD or if terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

See Also: Immed Host, Immed Service

Immed Service

Description: Enables a particular type of service for establishing an immediate host connection for dial-in terminal server connections (immediate mode).

Usage: Specify one of the following values:

Dependencies: This parameter requires a host specification in the Immed Host parameter. It is not applicable if terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

See Also: Immed Host, Immed Port

Immediate Modem

Description: Enables or disables the Immediate Modem service. If Immediate Modem service is enabled, users can Telnet to a MAX to access the MAX unit's modems, so that they can place outgoing calls without going through MAX terminal server interface. The MAXDial software offers the same outgoing call ability, but through a GUI interface.


Note: The MAX provides per-user control and accounting for both the Immediate Modem feature and MAXDial to control access to the modems. See Immediate Modem Access.

Usage: Specify Yes or No. No is the default.

Location: Ethernet > Mod Config > TServ Options

Dependencies: This parameter is not applicable if terminal services are disabled.

See Also: Imm. Modem Port, Imm. Modem Access

Inactivity Timer

Description: The inactivity timer specifies the number of seconds to allow a connection to remain inactive before dropping the virtual circuit.

Usage: Specify a number of seconds. The default zero disables the inactivity timer.

Example: Inactivity Timer=120

Dependencies: This parameter applies only to X.25/IP connections

Location: Ethernet > Connections > Encaps Options

Inc Ch Count

Description: Specifies the number of channels the MAX adds as a bundle when bandwidth changes either manually or automatically during a call.

If the call's data service is 384K/H0 or 384KR, the value you specify should be divisible by 6, because 384 kbps is 6x64 kbps. In this case, specify a value of 6, 12, 18, 24, or 30.

If the call's data service is MultiRate or GloBanD, and the service you select is a multiple of 64 kbps, specify a value that is a multiple of 6.

MP+ calls cannot exceed 32 channels. The sum of Base Ch Count and Inc Ch Count cannot exceed the maximum number of channels available.

Usage: Specify a number of channels. The default is 1.

Example: Inc Ch Count=3

Dependencies: This parameter does not apply if all channels if the call type is Nailed. In a Call profile, this parameter applies only if the call type is AIM, FT1-AIM, FT1-B&O, or BONDING and the Call Mgm parameter is set to Manual, Dynamic, or Mode 2.

Location: Host/Dual (Host/6) > PortN Menu > Directory, Ethernet > Connections > Encaps Options

See Also: Base Ch Count, Dec Ch Count, Max Ch Count

Input Sample Count

Description: Allows the PRI-T1 conversion process to use one or two sets of Goertzel samples to do the DTMF tone detection. By default, the MAX uses only one sample to decode signals from robbed-bit PBXs, because come PBX devices have a tone duration less than 50ms, which does not provide enough time to compute two sets of Goertzel samples. The PRI- T1 conversion process is more accurate when the MAX can use two samples. Using two samples is recommended when the tone duration is longer than 70ms.

Usage: Specify one of the following values:

Example: Input Sample Count=One

Dependencies: This parameter applies only to T1 lines using PBX-T1 conversion.

Location: Net/T1 > Line Config > Line N

See Also: Sig Mode

Initial Scrn

Description: Specifies the type of user interface displayed at the start of a dial-in terminal server connection.

Usage: Specify one of the following values:

Location: Ethernet > Mod Config > TServ Options

Interval

Description: Specifies the number of seconds between the receipt or transmission of Combinet line-integrity packets. If the MAX does not receive a Combinet line-integrity packet within three of these intervals, it disconnects the call.

Usage: Specify a number of seconds between 5 and 50. The default is 10.

Example: Interval=10

Dependencies: This parameter applies only to Combinet connections.

Location: Ethernet > Answer > COMB Options, Ethernet > Connections > Encaps Options

See Also: COMB, Encaps

IP Addr Msg

Description: Specifies a string to be printed in front of the IP address when a terminal server user initiates a PPP session.

Usage: Specify a text string up to 20 characters. The default is IP address is:

Example: IP Addr Msg=Your IP address is:

Dependencies: This parameter is not applicable when terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

IP Adrs

Description: Specifies the LAN interface IP address.

Usage: Specify the IP address of the MAX on the local IP network or subnet.

Example: IP Adrs=10.2.1.1/24

Dependencies: This parameter does not apply if the MAX does not route IP.

Location: Ethernet > Mod Config > Ether Options

See Also: Encaps, Route IP

IP Direct

Description: Specifies the IP address of a local host that all inbound IP packets on this link will be directed. When you specify an address for this parameter, the MAX bypasses all internal routing and bridging tables and sends each packet received from the remote end of the connection to the specified address. This does not affect outbound traffic. Note that the IP direct host must be on the same local network as the MAX.

Usage: Specify an IP address. The default is 0.0.0.0. If you accept the default, the MAX does not redirect traffic coming from the remote end specified by the Connection profile.

Example: IP Direct=10.2.3.4/24

Location: Ethernet > Connections > Session Options

See Also: Bridge, Encaps, FR Direct, RIP, Route IP

IP Gateway Addr Msg

Description: Specifies the text the MAX displays before the MAX IP address field in the SLIP session startup message.

Usage: Specify a a text message. You can enter up to 64 characters. The default is Gateway:.

Dependencies: IP Gateway Addr Msg does not apply unless you set SLIP Info to Advanced.

Location: Ethernet > Mod Config > TServ Options

See Also: Slip Info, IP Netmask Msg

IP Netmask Msg

Description: Specifies the text the MAX displays before the netmask field in the SLIP session startup message.

Usage: Specify a a text message. You can enter up to 64 characters. The default is Netmask:.

Dependencies: IP Netmask Msg does not apply unless you set SLIP Info to Advanced.

Location: Ethernet > Mod Config > TServ Options

See Also: Slip Info, IP Gateway Addr Msg

IPX Alias

Description: Specifies the IPX network number assigned to a point-to-point link. This parameter is used only when the MAX operates with a non-Ascend router that uses a numbered interface. It does not apply if you are routing from one MAX to another, or to a router that does not use a numbered interface.

Usage: Specify an IPX network number. The default value is 00000000. FFFFFFFF is invalid.

Dependencies: This parameter is not applicable if the MAX does not route IPX.

Location: Ethernet > Connections > IPX Options

See Also: Route IPX

IPX Enet#

Description: Specifies the IPX network number for the Ethernet interface of the MAX. The easiest way to ensure that the number is correct is to leave the default null address. This causes the MAX to listen for its network number and acquire it from another router on that interface. If you enter a number other than zero, the MAX becomes a seeding router and other routers can learn their IPX network number from the MAX. For details about seeding routers, see the Novell documentation.

Usage: Specify the IPX network number in use on the Ethernet segment to which the MAX is connected. The default 00000000 causes the MAX to learn its network number from other routers on that interface.

Example: IPX Enet #=DE040600

Dependencies: This parameter is not applicable if the MAX does not route IPX.

Location: Ethernet > Mod Config > Ether Options

IPX Frame

Description: Specifies the packet frame used by the majority of NetWare servers on Ethernet. The MAX routes and spoofs only one IPX frame type (IEEE 802.2 by default), which is specified in the IPX Frame parameter. If some NetWare software transmits IPX in a frame type other than the type specified here, the MAX drops those packets, or if bridging is enabled, it bridges them. If you are not familiar with the concept of packet frames, see the Novell documentation.

Usage: Specify one of the following values:

Dependencies: This parameter is not applicable if the MAX does not route IPX.

Location: Ethernet > Mod Config > Ether Options

IPX Net #

Description: Specifies the network number of the remote-end router. If specified, it creates a static route to that device. It is needed only when the remote-end router requires that the MAX know its network number before connecting.

Usage: Specify the remote device's IPX network number. The default 00000000 is appropriate for most installations. The default causes the MAXnot to advertise the route until it makes a connection to the remote network.

Dependencies: This parameter is not applicable if the MAX does not route IPX.

Location: Ethernet > Connections > IPX Options

See Also: Route IPX

IPX Pool #

Description: Specifies a virtual IPX network to be assigned to dial-in NetWare clients. Dial- in clients do not belong to an IPX network, so they must be assigned an IPX network number to establish a routing connection with the MAX. The MAX advertises the route to this virtual network and assigns it as the network address for dial-in clients.

The dial-in Netware client must accept the network number, although it can provide its own node number or accept a node number provided by the MAX. If the client does not have a unique node address, the MAX assigns the node address as well.

Usage: Specify an IPX network number that is unique in the IPX routing domain. All dial-in clients will be assigned addresses on this virtual network.

Example: IPX Pool #=FF0000037

Dependencies: This parameter is not applicable if the MAX does not route IPX.

Location: Ethernet > Mod Config > Ether Options

IPX RIP

Description: IPX RIP in a Connection profile defines how RIP packets are handled across this WAN connection. IPX RIP is set to Both by default, indicating that RIP broadcasts will be exchanged in both directions. You can disable the exchange of RIP broadcasts across a WAN connection, or specify that the MAX will only send or only receive RIP broadcasts on that connection.

Usage: Specify one of the following values:

Example: IPX RIP=Both

Dependencies: This parameter does not apply if Peer=Dialin or the MAX does not route IPX.

Location: Ethernet > Connection > IPX options...

See Also: IPX SAP, Peer

IPX Routing

Description: This enables IPX routing mode. When you turn on IPX routing in the MAX and close the Ethernet profile, the MAX comes up in IPX routing mode, uses the default frame type 802.2 (which is the suggested frame type for NetWare 3.12 or later), and listens on the Ethernet to acquire its IPX network number from other IPX routers on that segment.

Usage: Specify Yes or No. No is the default.

Example: IPX Routing=Yes

Dependencies: If IPX routing is disabled, the MAX can still bridge IPX packets, provided that Bridging is enabled.

Location: Ethernet > Mod Config

See Also: Active, Connection #, Dial Query, Hop Count, IPX Alias, IPX Enet#, Network, Node, Route IPX, Server Name, Server Type, Socket, Tick Count

IPX SAP

Description: IPX SAP in a Connection profile defines how SAP packets are handled across this WAN connection. IPX SAP is also set to Both by default, indicating that SAP broadcasts will be exchanged in both directions. If SAP is enabled to both send and receive broadcasts on the WAN interface, the MAX broadcasts its entire SAP table to the remote network and listens for SAP table updates from that network. Eventually, both networks have a full table of all services on the WAN. To control which services are advertised and where, you can disable the exchange of SAP broadcasts across a WAN connection, or specify that the MAX will only send or only receive SAP broadcasts on that connection.

Usage: Specify one of the following values:

Example: IPX SAP=Both

Dependencies: This parameter does not apply if Peer=Dialin or the MAX does not route IPX.

Location: Ethernet > Connections > IPX Options

See Also: IPX RIP, Peer

IPX SAP Filter

Description: Applies a SAP filter to the LAN or WAN interface. You can apply an IPX SAP filter to exclude or explicitly include certain remote services from the MAX SAP table. If you apply a SAP filter in a Connection profile, you can exclude or explicitly include services in both directions.

Usage: Specify the unique portion of the number preceding an IPX SAP Filter profile name in the IPX SAP Filters menu. The default zero means no filter is applied.

Example: IPX SAP Filter=4

Dependencies: This parameter does not apply if the MAX does not route IPX.

Location: Ethernet > Answer > Session Options, Ethernet > Connections > Session Options, Ethernet > Mod Config > Ether Options

See Also: IPX Enet #, IPX Routing, Server Name, Server Type, Type, Valid

K

K Window Size

Description: This parameter establishes the maximum number of data packets that can be outstanding in an X.75 connection before acknowledgment is required.

Usage: Specify a number between 2 and 7. The default is 7.

Location: Ethernet > Answer > X.75 Options

See Also: Frame Length, N2 Retransmission Count, T1 Retransmission Timer, X.75

L

L2 End

Description: Specifies CCITT Layer 2, which is used to determine the address to send when two PBX devices are connected back-to-back. In that case, one side must act as a PBX and the other side must act as an ET.

Usage: Specify one of the following values:

Example: L2 End=b-side

Dependencies: This parameter applies only to E1 lines.

Location: Net/E1 > Line Config > Line N

See Also: L3 End, Switch Type

L2TP Mode

Description: Specifies the system-wide type of L2TP functionality the MAX supports.

Usage: Specify one of the following values:

Example: L2TP Enable=LAC

Location: Ethernet > Mod Config > L2 Tunneling Options

See Also: Line n tunnel type, Route n line

L3 End

Description: Specifies CCITT Layer 3, which must be set to its default value when a DPNSS or DASS2 switch type is in use.

Usage: Specify one of the following values:

Example: L3 End=x-side

Location: Net/E1 > Line Config > Line N

See Also: L2 End, Switch Type

LAPB k

Description: Specifies the maximum number of sequentially numbered frames that a given DTE/DCE link may have unacknowledged at any given time. This specification is also called the Level 2 Window Size or the Frame Window Size.

Usage: Specify a number between 1 and 7. The default is 7. A higher value enables faster throughput. The value you specify must be the same for both ends of the link.

Location: Ethernet > X.25

See Also: LAPB N2, LAPB T1, LAPB T2

LAPB N2

Description: This parameter indicates the retry limit-the maximum number of times the MAX can resend a frame when the LAPB (Link Access Protocol-Balanced) T1 timer expires.

Usage: Specify a number between 0 and 255. The default is 20. A higher value increases the probability of a correct transfer of data. A lower value allows for quicker detection of a permanent error condition.

Location: Ethernet > X.25

See Also: LAPB k, LAPB T1, LAPB T2

LAPB T1

Description: Specifies the maximum amount of time in seconds the transmitter should wait for an acknowledgment before initiating a recovery procedure.

On a transmission line between a user and the network, a particular frame or acknowledgment may be incorrectly transmitted or simply discarded. To keep the transmitter from waiting indefinitely for an acknowledgment, you can specify the maximum amount of time the transmitter should wait.

Usage: Specify a number between 1 and 255. The default is 3. When you choose a value for this parameter, you must take into account any frame transmission and processing delays you may encounter. In most cases, you should use the default value suggested by the network.

Location: Ethernet > X.25

See Also: LAPB k, LAPB N2, LAPB T2

LAPB T2

Description: This parameter determines the maximum number of milliseconds LAPB (Link Access Protocol-Balanced) waits for outgoing I-frames (Information frames) before sending a Restart-Request packet to the network. An I-frame is a frame that transports data over an access link.

Usage: Specify a number between 0 and 255. The default is 0 (zero).

Location: Ethernet > X.25

See Also: LAPB k, LAPB N2, LAPB T1

LAN

Description: Specifies the ISDN subaddress associated with the MAX unit's bridge/router module or terminal server. When a call is received that includes this subaddress as part of the dialed number, the call is routed to the LAN. This is one method of routing calls. Another way to route calls to the Ethernet is to set the Ans N# parameter in the Ethernet profile.

Usage: Specify a subaddress number between 0 and 99. The default is 0.

Example: LAN=3

Dependencies: This parameter is not applicable if the Sub-Adr parameter is not set to Routing.

Location: System > Sys Config

See Also: Ans N#, Sub-Adr

LAN Adrs

Description: Specifies the IP address of remote-end host or router.

Usage: Specify the IP address of the remote device.

Example: LAN Adrs=200.207.23.101/24

Dependencies: This parameter does not apply if the MAX does not support IP routing. No two calling Connection profiles should have the same LAN Adrs.

Location: Ethernet > Connections > IP Options

See Also: Encaps, IP Adrs, Route IP, Station

LCN

Description: Specifies the LCN (logical channel number) to use for a PVC (Permanent Virtual Connection) using X.25

At the packet level, a number of logical channels are set up between a DTE and a DCE. Every packet exchange occurs on one of these logical channels. When a connection takes place, X.25 uses a logical channel to establish a PVC. The DCE maintains the correspondence between the logical channel and the PVC while the call takes place, and clears the PVC when the data exchange is over.

Usage: Specify a channel number. You can enter a number between 0 and 4095. The default is 0 (zero). If you accept the default, the X.25 link does not use a logical channel or PVC; the link is an SVC (Switched Virtual Connection).

Dependencies: This parameter applies only to X.25/PAD and X.25/IP connections.

Location: Ethernet > Connections > Encaps Options

Length

Description: In a T1 line profile, specifies the cable length of the line from the CSU (Channel Service Unit) or other network interface unit to the MAX. The setting you indicate should reflect the longest line length you expect to encounter in your installation.

In a Firewall profile, it specifies the length of the firewall uploaded to the MAX from Secure Access Manager (SAM). In Firewall profiles, the parameter is read-only.

In a filter of type Generic, specifies the number of bytes to test in a frame, starting at the specified Offset. The MAX compares the contents of those bytes to the value specified in the filter's Value parameter. For example, with this specification:

and the following packet contents:

The filter applies the mask only to the eight bytes following the two-byte offset.

Usage: In a Filter profile, specify a number between 0 and 8 that defines the number of bytes to use for comparison. The default zero means no bytes are compared.

In a T1 line profile, specify one of the following values

Location: Ethernet > Filters > Input filters > In filter N > Generic, Ethernet > Filters > Output filters > Out filter N > Generic, Ethernet > Firewalls, Net/T1 > Line Config > Line N

See Also: Offset, Mask, Value

Listen X.121 Addr

Description: Specifies a listen pattern for host-initiated calls. This is similar to typing the following command in the X.25 PAD:

* listen addr=pattern
The pattern is in the same format as an X.121 address, or sub address and can contain wild cards.

Usage: Specify an address. You can enter up to 15 characters.

Dependencies: This parameter is always applicable.

Location: Ethernet > Connections > any Connection profile > Encaps options
Ethernet > Answer > T3POS options

Line n tunnel type

Description: Indicates whether the MAX should tunnel all calls received on the specified WAN line.

Usage: Specify one of the following values:

Example: Line 1 tunnel type=None

Dependencies: Line n tunnel type applies only if you set L2TP Mode to LAC or Both.

Location: Ethernet > Mod Config > L2 Tunneling Options

See Also: L2TP Mode, Route n line

Link Access Type

Description: Specifies the type of the DTE connection.

Usage: Specify one of the following values:

Dependencies: This parameter is always applicable.

Location: Ethernet > Connections > any Connection profile > Encaps options
Ethernet > Answer > T3POS options

Link Comp

Description: Specifies the link compression method for a PPP, MP, and MP+ call. Both sides of the connection must set the same type of link compression or it will not be used.

Usage: Specify one of the following values:

Example: Link Comp=Stac

Dependencies: This parameter applies only to PPP and its multilink variants. Both sides of the link must support the same kind of compression or it is not used.

Location: Ethernet > Answer > PPP Options, Ethernet > Connections > Encaps Options

See Also: Compression

Link Mgmt

Description: Specifies the link management protocol to use between the MAX and the frame relay switch. The frame relay administrator or service provider can tell you which value to use.

Usage: Specify one of the following values:

Location: Ethernet > Frame Relay

See Also: DLCI, FR DLCI

Link Type

Description: Specifies whether an ISDN BRI line is operating in point-to-point or multipoint mode. If the MAX uses only one channel of a multipoint ISDN BRI line and another device uses the other channel, you can set one channel to unused by setting B1 Usage or B2 Usage to Unused, and enter only one SPID. The device sharing the line must enter the other assigned SPID.

Usage: Check with your carrier to find out the setting you should specify for this parameter. You can specify one of the following values:

Dependencies: All switch types use multi-point except the AT&T 5ESS switch.

Location: Net/BRI > Line Config > Line N

See Also: Pri SPID, Sec SPID, Switch Type

LinkUp

Description: Specifies whether the Frame Relay link comes up automatically and stays up even when the last DLCI has been removed or does not come up unless a Connection profile (DLCI) brings it up, and it shuts down after the last DLCI has been removed.

Usage: Specify Yes or No. No is the default.

Dependencies: You can start and drop frame relay datalink connections by using the DO Dial and DO Hangup commands. If LinkUp is set to Yes, DO Dial brings the link down, but it will be automatically restarted. A restart will also occur if there is a Connection or Frame Relay profile invoking the datalink.

Location: Ethernet > Frame Relay

See Also: FR Prof, DLCI, Circuit

List Attempt

Description: Enables or disables the DNS List Attempt feature. DNS can return multiple addresses for a hostname in response to a DNS query, but it does not include information about availability of those hosts. Users typically attempt to access the first address in the list. If that host is unavailable, the user must try the next host, and so forth. However, if the access attempt occurs automatically as part of immediate services, the physical connection is torn down when the initial connection fails. To avoid tearing down physical links when a host is unavailable, you can use the List Attempt parameter to enable the MAX to try one entry in the DNS list of hosts, and if that connection fails, to try the next entry, and so on, without losing the WAN session. The List Size parameter specifies the maximum number of hosts listed.

Usage: Specify Yes or No. No is the default.

Dependencies: If List Attempt = No and Enable Local DNS Table = Yes, the local DNS table has only one entry.

Location: Ethernet > Mod Config > DNS

See Also: List Size, Enable Local DNS Table

List Size

Description: Specifies the maximum number of DNS addresses that are made accessible to terminal server sessions in response to a DNS query. List Size also specifies the maximum number of IP address entries in the Local DNS table.

If List Attempt=Yes and the name server returns an IP address list, the list is copied into the entry in the local DNS table that matches the host name, up to the number of entries you specify in List Size. When a list of IP addresses for an entry is automatically updated, any existing list for that entry is discarded.


Note: The number of IP addresses displayed with the dnstab entry terminal command depends upon the value you set in the List Size parameter.

Usage: Specify a number between 1 and 35. The default is 6.

Example: Following are three possible local DNS table situations:

Dependencies: This parameter is applicable only when the parameter List Attempt = Yes. A local DNS table is created only if the parameter Enable Local DNS Table= Yes.

Location: Ethernet > Mod Config > DNS

See Also: List Attempt, Enable Local DNS Table

Local Echo

Description: Allows you to configure local echo mode on a terminal server session. Local echo mode is a line-by-line mode, where the line that appears as it is typed is not actually transmitted until a carriage return is entered. If local echo is enabled, the line transmitted is echoed on the local MAX terminal screen.

Local echo allows MAX terminal server users to connect to non-standard Telnet ports and programs. If the remote server turns local echo on or off in its option negotiation for a Telnet session, this setting will override the setting made locally.

A terminal server user can override the Local Echo setting from the command line for the current session using the -e option of the Telnet command.

Usage: Specify Yes or No. No is the default.

Dependencies: This parameter is not applicable if terminal services are disabled.

Location: Ethernet > Mod Config > TServ options

Local Profiles First

Description: Specifies whether the MAX should attempt local authentication before remote (external) authentication. By default, the MAX first attempts to authenticate the connection using local profiles. If that fails, the MAX tries to authenticate the connection using an external authentication server.

If this parameter set to No, the MAX first tries to authenticate the connection using a remote authentication server. If that fails, the MAX attempts to authenticate the connection using local profiles. In this case, some dynamic password challenges behave differently than when authentication is local. (PAP and CHAP work the same either way.)


Note: Because the remote authentication is tried first if this parameter set to No, the MAX waits for the remote authentication to time out before attempting to authenticate locally. This timeout may take longer than the timeout specified for the connection and could cause all connection attempts to fail. To prevent this, set the authentication timeout value low enough to not cause the line to be dropped, but still high enough to permit the unit to respond if it is able to. The recommended time is 3 seconds.

Usage: Specify Yes or No. Yes is the default.

Example: Local Profiles First=Yes

Dependencies: This parameter is not applicable if Auth is set to None. See the Note above for related dependencies.

Location: Ethernet > Mod Config > Auth

See Also: Auth Timeout

Location

Description: This is an SNMP-readable parameter that specifies the physical location of the MAX. It does not affect the unit's operations.

Usage: Specify a description of the MAX unit's location. You can enter up to 80 characters.

Location: System > Sys Config

See Also: Contact

Loc. DNS Tab Auto Update

Description: Enables.or disables automatic updating. When automatic updating is enabled, the list of IP addresses for each entry is replaced with a list from the remote DNS when the remote DNS successfully resolves a connection to a host named in the table.

Usage: Loc.DNS Tab Auto Update=Yes to enable automatic updating of the IP addresses in the local DNS table. No disables automatic updating. No is the default.

When automatic updating is enabled, the list of IP addresses for each entry is replaced with a list from the remote DNS when the remote DNS successfully resolves a connection to a host named on the table.

Dependencies: The Enable Local DNS Table parameter must be set to Yes.

Location: Ethernet Profile: Ethernet > Mod Config > DNS

Log Facility

Description: Specifies how the Syslog host sorts system logs. The Syslog host is the station to which the MAX sends system logs.

All system logs using the same setting are grouped together in the host's file system. That is, all system logs using the Local0 facility are grouped together, all system logs using the Local1 facility are grouped together, and so on.

Usage: Specify one of the following values:

Dependencies: This parameter applies only when Syslog=Yes.

Location: Ethernet > Mod Config > Log

See Also: Log Host, Syslog

Log Host

Description: Specifies the IP address of the Syslog host-a UNIX station to which the MAX sends system logs.

Usage: Specify the IP address of Syslog host. The default value is 0.0.0.0.

Example: Log Host=10.207.23.1

Dependencies: This parameter applies only when Syslog=Yes.

Location: Ethernet > Mod Config > Yes

See Also: Log Facility, Syslog

Login Host

Description: Specifies the IP address or DNS hostname of the host to which raw TCP connections will be directed.

Usage: Specify the IP address or hostname of the device.

Location: Ethernet > Connections > Encaps Options

See Also: Login Port

Login Port

Description: Specifies the TCP port the raw TCP connection will use to connect to the specified host.

Usage: Specify the TCP port number on the login host. You can specify a value between 1 and 65535. The default is 1.

Location: Ethernet > Connections > Encaps Options

See Also: Login Host

Login Prompt

Description: Specifies the string used to prompt for a user name when authentication is in use and an interactive user initiates a connection. If the Prompt Format parameter is set to Yes, you can include multiple lines in the login prompt by including carriage-return/line-feed (\n) and tab (\t) characters. To include an actual backslash character, you must "escape" it with another backslash. For example, you could enter this string:

to display the following text as a login prompt:

Usage: Specify up to 31 characters. The default value is Login:

Example: Login Prompt=Enter your name:

Dependencies: This parameter does not apply if terminal services are disabled. If the Prompt Format parameter is set to No, this parameter is limited to 15 characters and cannot include newlines or tabs.

Location: Ethernet > Mod Config > TServ Options

Login Timeout

Description: Specifies the number of seconds a terminal-server user can use for logging in. After the specified number of seconds, the login attempt times out. A user has the total number of seconds indicated in the Login Timeout field to attempt a successful login. This means that the timer begins when the login prompt appears on the terminal server screen, and continues (is not reset) when the user makes unsuccessful login attempts.

Usage: Specify between 0 and 300 seconds. The default is 300. A zero value disables the timer.

Example: Login Timeout=300

Dependencies: This parameter does not apply if terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

LoopAvoidance

Description: Specifies the number of transit PBX devices through which a call may be routed.

Usage: Specify a number between 1 and 26. The default value is 7.

Example: LoopAvoidance=7

Dependencies: This parameter applies only to E1 lines.

Location: Net/E1 > Line Config > Line N

See Also: NL Value

LQM

Description: Specifies whether the MAX requests Link Quality Monitoring (LQM) when answering a PPP call. LQM counts the number of packets sent across the link and periodically asks the remote end how many packets it has received. Discrepancies are evidence of packet loss and indicate link quality problems.

Both sides of the link negotiate the interval between periodic link quality reports; however, the interval must fall between the minimum interval (LQM Min) and the maximum interval (LQM Max).

Usage: Specify Yes or No. No is the default.

Location: Ethernet > Answer > PPP Options, Ethernet > Connections > Encaps Options

Dependencies: This parameter applies only to PPP and its multilink variants.

See Also: Encaps, LQM Max, LQM Min

LQM Max

Description: Specifies the maximum duration between link quality reports for PPP connections, measured in 10ths of a second.

Usage: Specify a number between 0 and 600. The default is 600.

Dependencies: This parameter applies only to PPP and its multilink variants. It is not applicable if LQM is set to No.

Location: Ethernet > Answer > PPP Options, Ethernet > Connections > Encaps Options

See Also: LQM, LQM Min

LQM Min

Description: Specifies the minimum duration between link quality reports for PPP connections, measured in 10ths of a second.

Usage: Specify a number between 0 and 600. The default is 600.

Dependencies: This parameter applies only to PPP and its multilink variants. It is not applicable if LQM is set to No.

Location: Ethernet > Answer > PPP Options, Ethernet > Connections > Encaps Options

See Also: LQM, LQM Max

LSA-type

Description: This specifies the OSPF ASE type of this link-state advertisement.

Usage: Specify one of the following values:

Dependencies: Keep this additional information in mind.

Location: Ethernet > Connections > OSPF Options, Ethernet > Mod Config > OSPF Option, Ethernet > Static Rtes

See Also: Ospf-Cost

M

Mask

Description: In a filter of type Generic, specifies a 16-bit mask to apply to the Value before comparing it to the packet contents at the specified offset. You can use it to fine-tune exactly which bits you want to compare.

The MAX applies the mask to the specified value using a logical AND after the mask and value are both translated into binary format. The mask hides the bits that appear behind each binary 0 (zero) in the mask. A mask of all ones (FF FF FF FF FF FF FF FF) masks no bits, so the full Compare To value must match the packet contents. For example, with this filter specification:

and the following packet contents:

The mask is applied as shown below, resulting in a value that matches the Value.

The packet matches this filter. Because the Filter Action is "Discard", the packet will be dropped. The byte comparison works as follows:

Usage: Specify a 16-bit hexadecimal number. The default of all zeroes means the MAX uses the data in the packet as is for comparison purposes.

Example: Mask=0FFFFFFF000000F0

Location: Ethernet > Filters > Input filters > In filter N > Generic, Ethernet > Filters > Output filters > Out filter N > Generic

See Also: Length, Offset, Type, Value

Max ATMP Tunnels

Description: Defines the maximum number of active ATMP sessions for units configured as an ATMP Home agent.

Changes take effect after the Connection Profile is saved, the connection is cleared, then reestablished.

Usage: Press Enter to open the text field. Type the number of simultaneous ATMP sessions you want to allow through this ATMP Gateway. The default, 0 (zero), disables the parameter.

Dependencies: Applies only to units configured as ATMP Home agents.

Location: Ethernet > Connections > any profile > Session Options menu.

See Also: ATMP Mode, ATMP Gateway

Max Baud

Description: Specifies the highest baud rate that V.34 digital modems on the MAX should attempt to negotiate. Typically, the digital modems start with the highest possible baud rate (3360) and negotiate down to the rate accepted by the far end modem. You can adjust the maximum rate to bypass some of the negotiation cycles, provided that no inbound calls will use a baud rate higher than what you specify here.

Usage: Specify the maximum baud rate. The default is 3360 baud (the highest setting).

Dependencies: This parameter is not applicable if terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

See Also: TS Enabled

Max. Block Size

Description: Specifies maximum length of a transmission (including the length of opening frame) in bytes that the PAD must be able to accept and process from the DTE or host. This only applies to processing opening frame and to both local modes of operation.

Usage: Specify one of the following values:

Dependencies: Keep the following information in mind.

Location: Ethernet > Connections > any Connection profile > Encaps options
Ethernet > Answer > T3POS options

Max Call Duration

Description: Specifies the maximum duration in minutes of an established session for an incoming call. The connection is checked once per minute, so the actual time of the call will be slightly longer (usually less than a minute longer) than the actual time you set.

Usage: Specify a value from 1-1440. The default is zero, which disables the timer.

Example: Max Call Duration=0

Location: Ethernet > Answer > Session Options, Ethernet > Connections > Session Options

Max Call Mins

Dependencies: Establishes the maximum number of minutes a call can be online at the port, regardless of bandwidth, before the MAX disconnects it. This maximum limits the usage of switched channels, even if the MAX combines these channels with nailed-up ones. Although the MAX disconnects the switched channels when a call exceeds the value of Max Call Mins, the nailed-up channels remain connected.

Usage: Specify a number between 0 and 2,142,270. The default is 0. Accepting the default disables the parameter.

Location: Port profile: Host/Dual (Host/6) > PortN Menu > Port Config

See Also: Max DS0 Mins

Max Ch Count

Description: Specifies the maximum number of channels that can be allocated to a multilink connection. For optimum performance, both sides of the connection should specify the same maximum channel count.

Usage: Specify a number from 1 to 32. The default setting is 1.

Example: Max Ch Count=5

Dependencies: In a Connection profile or Answer profile, this parameter applies only to MPP calls. In a Call profile, it applies only to dynamic AIM calls.

Location: Ethernet > Answer > PPP Options, Host/Dual (Host/6) > PortN Menu > Directory > Time Period N, Ethernet > Connections > Encaps Options

See Also: Add Pers, Base Ch Count, Call Mgm, Encaps

Max DS0 Mins

Description: Specifies the maximum number of DS0 minutes a call can be online. In a Port profile, it applies to calls from the AIM port within the specified time period. In the System profile, it applies to calls from all ports on the MAX and to the Ethernet module.

A DS0 minute is the online usage of a single 56-kbps or 64-kbps switched channel for one minute. For example, a 5-minute, 6-channel call uses 30 DS0 minutes. When the usage exceeds the maximum specified by the Max DS0 Mins parameter, the MAX cannot place any more calls, and takes any existing calls offline.

The Max DS0 Mins parameter limits usage of switched channels, even if the MAX combines these channels with nailed-up ones; although the MAX disconnects the switched channels when a call exceeds the value of Max DS0 Mins, the nailed-up channels remain connected.

Usage: Specify a number specifying the maximum number of DS0 minutes a call can be online before the MAX disconnects it. A value of 0 (zero) is not valid for this parameter.

Example: Max DS0 Mins=30

Dependencies: This parameter does not apply if DS0 Min Rst=Off.

Location: Host/Dual (Host/6) > PortN Menu > Port Config, System > Sys Config

See Also: DS0 Min Rst

Max. Time (min)

Description: Specifies the maximum connect time in minutes for the ARA dial-in. The MAX initiates an ARA disconnect when the specified time is up. The ARA link goes down cleanly, but remote users are not notified. Users will find out the ARA link is gone only when they try to access a device.


Note: The Max. Time parameter is not associated with the MAX unit's idle timer.

Usage: Specify a number between 1 and the maximum number of minutes the connection should stay up. The default setting is 0 (zero); this setting indicates an unlimited connection time.

Dependencies: This parameter applies only to ARA connections.

Location: Ethernet > Connections > Encaps Options

See Also: Password, ARA, AppleTalk, Encaps

Max Leases

Description: Specifies the number of dynamic addresses to assign to NAT (Network Address Translation) clients using this connection. When NAT is used, an initial dynamic address is automatically assigned via the PPP negotiations. This can be used to perform address translation for a single client on the LAN. When additional clients attempt to route packets through this connection, they must first be assigned their own dynamic address. The Max Leases parameter restricts the number of addresses to be given out through this connection, thus limiting the number of clients on the remote LAN who can access the Internet.

Usage: Specify the maximum number of addresses to assign to clients using this connection. The valid range is from 1 to 254. The default is 4.

Dependencies: This parameter does not apply if Reply Enabled is set to No.

Location: Ethernet > Answer > DHCP options, Ethernet > Connections > DHCP options

See Also: Reply Enabled

Max Unsucc. Calls

Description: Specifies the maximum number of unsuccessful X.25 calls the MAX tries to place before dropping the modem connection.

Usage: Specify a number between 0 and 9999. The default is 10. A value of 0 (zero) indicates that the MAX never drops the modem connection because of unsuccessful X.25 calls.

Dependencies: This parameter applies only to X.25/PAD and X.25/IP connections.

Location: Ethernet > Connections > Encaps Options

Mbone profile

Description: Specifies the name of a resident Connection profile to a multicast router on the WAN. The specified Connection profile must be resident. (It cannot be accessed via a RADIUS or TACACS server.) If the Mbone profile name is null and Multicast Forwarding is turned on, the MAX assumes that its Ethernet is the MBONE interface.

Usage: Specify the name of the Connection profile to a remote multicast router. If no name is specified, the MAX assumes the presence of a multicast router on its Ethernet interface.

Example: Mbone profile=newyork

Location: Ethernet > Mod Config > Multicast

Dependencies: This parameter does not apply if Multicast Forwarding is set to No.

See Also: Multicast Forwarding, Multicast Client

MDM Trn Level

Description: Specifies the default transmit level for a digital modem. When a modem calls the MAX, the unit attempts to connect at the transmit attenuate level you specify. This is the amount of attenuation in decibels the MAX should apply to the line, causing the line to lose power when the received signal is too strong. Generally, you do not need to change the transmit level. However, when the carrier is aware of line problems or irregularities, you may need to alter the modem's transmit level.

Rockwell modem code has been modified to make the transmit level programmable, so users can change the default setting for their specific connection. Transmitting at higher level helps certain modems with near-end-echo problems.

Usage: Specify a value between -13 db and -18 db. The default is -13 db.

Example: MDM Trn Level=-13db

Dependencies: This parameter does not apply if terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

Method of host notif

Description: For DTE-initiated calls, this specifies how the host is notified of the mode of the call.

Usage: Specify one of the following values:

Dependencies: Keep the following information in mind.

Location: Ethernet > Connections > any Connection profile > Encaps options
Ethernet > Answer > T3POS options

Metric

Description: In a Connection or Route profile, specifies a RIP metric (a virtual hop count) associated with the IP route. In the Answer profile, it specifies the RIP metric of the IP link when the MAX validates an incoming call using RADIUS or TACACS and Use Answer as Default is enabled.

The specified metric is a virtual hop count. The actual hop count includes the metric of each switched link in the route.

If two routes have the same preference value, the MAX chooses the route with the lowest metric. If you enable RIP (Routing Information Protocol) across the WAN in a Connection profile or an Answer profile, the hop count for the route can differ from the value of the Metric parameter in the Route profile because the MAX always uses the lower hop count.

Usage: Press Specify a number between 1 and 15. The default setting is 7. The higher the number you specify, the less likely that the MAX will bring the link or route online.

Example: Metric=4

Dependencies: This parameter does not apply if the MAX does not route IP. In the Answer profile, the Use Answer as Default parameter must also be enabled.

Location: Ethernet > Answer > IP Options, Ethernet > Connections > IP Options, Ethernet > Static Rtes

See Also: Private, RIP

Min Ch Count

Description: Specifies the minimum number of channels that can be established for a multilink call. If this number of channels is not available, the multilink session is not established. For optimum performance, both sides of the multilink connection should set this parameter to the same value.

Usage: Specify a number between 1 and the maximum channel count. The default setting is 1.

Example: Min Ch Count=1

Location: Ethernet > Answer > PPP Options, Ethernet > Connections > Encaps Options, Host/Dual (Host/6) > PortN Menu > Directory > Time Period N

See Also: Call Mgm, Max Ch Count

Modem Dialout

Description: Specifies whether an operator can use this MAX unit's V.34 digital modems to dial out from the terminal server interface. Once the connection is established, the user can issue AT commands to the modem as if connected locally to the modem's asynchronous port. If you set this parameter to No while users have active dialout connections, those connections are not affected. However, no new modem dialouts will be allowed.

Usage: Specify Yes or No. No is the default.

Dependencies: This parameter does not apply if terminal services are disabled.

Location: Ethernet > Mod Config > TServ Option

See Also: TS Enabled, Immediate Modem

Modem Ringback

Description: By default, when the MAX answers an analog modem call, it generates a ringback tone that the calling modem hears, and then begins the modem protocol. Most modems ignore the ringback tone. However, some older modems require the MAX to generate a ringback tone.

Usage: Specify one of the following values:

Location: Ethernet > Mod Config

Modem:NumPlanID

Description: Modem:NumPlanID is used for outbound calls made by the MAX on PRI lines so that the switch can properly interpret the phone number dialed. Ask your PRI provider for details on when to use each of the following settings. This parameter specifies NumberPlanID field in the called party's information element.


Note: This parameter applies only to calls placed by the digital modems in the MAX; that is, modem dial-out.

Usage: Specify one of the following values:

Location: Net/T1 > Line Config (Line profile)

See Also: Modem:PRI # Type, NumPlanID (Call and Connection profiles), T1-PRI:NumPlanID (System profile)

Modem:PRI # Type

Description: Modem:PRI # Type is used for outbound calls made by the MAX on PRI lines so that the switch can properly interpret the phone number dialed. Ask your PRI provider for details on when to use each of the following settings. This parameter specifies the TypeOfNumber field in the called party's information element.


Note: This parameter applies only to calls placed by the digital modems in the MAX; that is, modem dial-out.

Usage: Specify one of the following values:

Location: Net/T1 > Line Config (Line profile)

See Also: Modem:NumPlanID, NumPlanID (Call and Connection profiles), T1-PRI:NumPlanID (System profile)

Module Name

Description: In the Ethernet profile, this assigns an optional name to the Ethernet interface. In a Host-Interface profile, it assigns a name to an AIM port module, which is sent to the remote end of the connection.

Usage: Specify a name containing up to 16 characters. For the Ethernet interface, you can leave this parameter blank.

Location: Ethernet > Mod Config, Host/Dual (Host/6) > Mod Config, Serial WAN > Mod Config

More

Description: In a filter of type Generic, specifies whether the MAX includes the next filter condition before determining whether the frame matches the filter. If checked, the current filter condition is linked to the one immediately following it, so the filter can examine multiple non- contiguous bytes within a packet. In effect, this parameter marries the current filter to the next one, so that the next filter is applied before the forwarding decision is made. The match occurs only if both non-contiguous bytes contain the specified values.

Usage: Specify Yes or No. No is the default.

Example: More=Yes

Dependencies: The next filter must be enabled.

Location: Ethernet > Filters > Input filters > In filter N > Generic, Ethernet > Filters > Output filters > Out filter N > Generic

See Also: Forward, Length, Offset, Type, Value, Valid

MP

Description: This enables incoming Multilink PPP (MP) connections, which use the encapsulation defined in RFC 1990. MP enables the MAX to interact with Multilink PPP- compliant equipment from other vendors to use multiple channels for a call. Both sides of the connection must support MP.

Usage: Specify Yes or No. Yes is the default.

Location: Ethernet > Answer > Encaps

See Also: Encaps

MPP

Description: Enables incoming MP+ (Multilink Protocol Plus) connections, which use PPP encapsulation with Ascend extensions. MP+ enables the MAX to connect to another Ascend unit using multiple channels.

Usage: Specify Yes or No. Yes is the default.

Location: Ethernet > Answer > Encaps

See Also: Encaps, MP

MRU

Description: Specifies the maximum number of bytes the MAX can receive in a single packet. Usually the default is the right setting, unless the far end requires a lower number.

Usage: Specify a number lower than the default MRU if the far end requires it.

Example: MRU=1524

Location: Ethernet > Answer > PPP Options, Ethernet > Connections > Encaps Options, Ethernet > Frame Relay

See Also: Encaps

Multicast Client

Description: Enables the MAX to respond to multicast clients on the WAN link. Clients cannot be supported on the MBONE interface, so this means another WAN link or the local Ethernet supports a multicast router.

When this parameter is set to Yes, the MAX begins handling IGMP requests and responses on the interface. It does not begin forwarding multicast traffic until the rate limit is set.

Usage: Specify Yes or No. No is the default.

Example: Multicast Client=Yes

Dependencies: This parameter is not applicable if Multicast Forwarding is disabled or if the Connection profile is the Mbone profile (linking to a remote multicast router). See Multicast Rate Limit for related dependencies.

Location: Ethernet > Connections > IP options

See Also: Multicast Rate Limit

Multicast Rate Limit

Description: Specifies the rate at which the MAX accepts multicast packets from clients on this interface. It does not affect the MBONE interface.


Note: By default, the Rate Limit t parameter is set to 100. This disables multicast forwarding on the interface. The forwarder handles IGMP packets, but does not accept packets from clients or forward multicast packets from the MBONE router.

To begin forwarding multicast traffic on the interface, you must set the rate limit to a number less than 100. For example if you set it to 5, the MAX accepts a packet from multicast clients on the interface every 5 seconds. Any subsequent packets received in that 5-second window are discarded.

Usage: Specify a number lower than the default 100 to begin forwarding multicast traffic on the interface.

Example: Multicast Rate Limit=5

Dependencies: This parameter has no effect when applied to the MBONE interface.

Location: Ethernet > Connections > IP Options

See Also: Multicast Client

N

N2 Retransmission Count

Description: Specifies the retry limit-the maximum number of times the MAX can resend a frame on an X.75 connection when the T1 Retransmission Timer expires.

Usage: Specify a number between 2 and 15. The default value is 10. A higher value increases the probability of a correct transfer of data. A lower value allows for quicker detection of a permanent error condition.

Location: Ethernet > Answer > X.75 Options

See Also: Frame Length, K Window Size, T1 Retransmission Timer, X.75

N391

Description: Specifies the interval at which the MAX requests a Full Status Report on a frame relay link.

Usage: Specify a number from 1 to 255 seconds. The default is 6.

Example: N391=15

Dependencies: This parameter does not apply if FR Type is DCE.

Location: Ethernet > Frame Relay

See Also: Link Mgmt

Nailed Grp

Description: Specifies a number assigned to a group of nailed channels or a serial WAN port. In a Frame Relay or X.25 profile, it assigns those channels to the link represented by the profile. Only one active link can be assigned to use a particular group number.

Usage: In a serial WAN profile, specify a number that will represent this port's bandwidth. It can be a number between 1 and 60 (default 1). In a Frame Relay or X.25 profile, specify the number assigned to nailed T1 or serial WAN bandwidth.

Example: Nailed Grp=5

Location: Ethernet > Frame Relay, Serial WAN > Mod Config, Ethernet > X.25

See Also: Activation, Call Type, Ch N Prt/Grp, Group

Name

Description: Specifies the name of a profile, host, or user.


Note: When the Name parameter specifies an existing host, user, the MAX system itself, or a Firewall profile, the name is case-sensitive. The name you specify must be unique within the list of profiles of the same type. In addition, Ascend strongly recommends that you do not use the same name for a Names / Passwords profile and a Connection profile.

Usage: Specify a name.

Example: Name=PacBell

Location: Host/Dual (Host/6) > PortN Menu > Directory, Host/BRI > Line Config, Net/BRI > Line Config, Net/T1 > Line Config, Net/E1 > Line Config, BRI/LT > Line Config, System > Destinations, System > Dial Plan, Ethernet > Filters, Ethernet > Firewalls, Ethernet > Frame Relay, Ethernet > IPX SAP Filters, Ethernet > Static Rtes, System > Security, Ethernet > SNMP Traps, System > Sys Config, Ethernet > X.25, Ethernet > Names / Passwords,

Net Adrs

Description: In a Bridge profile, specifies the IP address of a device at the remote end of the link. If you are bridging between two segments of the same IP network, you can use the Net Adrs parameter in a Bridge profile to enable the MAX to respond to ARP requests while bringing up the bridged connection. If an ARP packet contains an IP address that matches the Net Adrs parameter of a Bridge profile, the MAX responds to the ARP request with the Ethernet (physical) address specified in the Bridge profile and brings up the specified connection. In effect, the MAX as a proxy for the node that actually has that address.

Usage: Specify the IP address of the device on the remote network.

Example: Net Adrs=10.207.23.101/24

Location: Ethernet > Bridge Adrs

See Also: Enet Adrs

NetWare t/o

Description: Specifies the number of minutes the MAX will enable clients to remain logged in to a NetWare server even though their IPX connection has been torn down.

NetWare servers send out NCP watchdog packets to monitor which logins are active and logout inactive clients. Only clients that respond to watchdog packets remain logged in.

Repeated watchdog packets would cause a WAN connection to stay up, but if the MAX simply filtered those packets, client logins would be dropped by the remote server. To prevent repeated client logouts while allowing WAN connections to be brought down in times of inactivity, the MAX responds to NCP watchdog requests as a proxy for clients on the other side of an offline IPX routing or IPX bridging connection. Responding to these requests is commonly called watchdog spoofing.

To the server, a spoofed connection looks like a normal, active client login session, so it does not log the client out. The timer begins counting down as soon as the link goes down. At the end of the selected time, the MAX stops responding to watchdog packets and the client-server connections may be released by the server. If there is a reconnection of the WAN session before the end of the selected time, the timer is reset.


Note: The MAX filters watchdog packets automatically on all IPX routing connections and all IPX bridging connections that have watchdog spoofing enabled. The MAX applies a call filter implicitly, which prevents the Idle timer from resetting when IPX watchdog packets are sent or received. This filter is applied after the standard data and call filters.

Usage: Specify a number of minutes from 0 to 65535. The default value is 0 (zero); when you accept the default, the MAX responds to server watchdog requests indefinitely.

Example: NetWare t/o=30

Dependencies: This parameter does not apply if the MAX does not support IPX.

Location: Ethernet > Connections > IPX Options

See Also: Handle IPX

Net End

Description: Used in conjunction with Net Start to indicate the end of the zone range that defines the networks available for packets that are to be routed to this static route. If the MAX is an AppleTalk router, it brings up the line when it receives packets addressed to the network number (defined by Net Start and Net End) or zone name specified for the remote connection, and routes packets to the appropriate network or zone.

Usage: Valid entries for this field are in the range from 1 to 65199. If there are other AppleTalk routers on the network, it is necessary to configure the network ranges to coincide with the other routers on the LAN.

Dependencies: The following must be true:

Location: Ethernet > Connections > AppleTalk Options

See Also: Peer (AppleTalk), Net Start, AppleTalk, AppleTalk Router, Route AppleTalk

Net Start

Description: Used in conjunction with Net End to indicate the beginning of the zone range that defines the networks available for packets that are to be routed to this static route. If the MAX is an AppleTalk router, it brings up the line when it receives packets addressed to the network number (defined by Net Start and Net End) or zone name specified for the remote connection, and routes packets to the appropriate network or zone.

Usage: Valid entries for this field are in the range from 1 to 65199. If there are other AppleTalk routers on the network, it is necessary to configure the network ranges to coincide with the other routers on the LAN.

Dependencies: The following must be true:

Location: Ethernet > Connections > AppleTalk Options

See Also: Peer (AppleTalk), Net End, AppleTalk, AppleTalk Router, Route AppleTalk

Network

Description: Specifies the network that can be reached through this static IPX route. If this is an external IPX network number, do not set Server Name or Server Type. If the network number is an internal network number of a server, make sure you specify Server Name and Server Type. If you are not familiar with internal network numbers, see the Novell documentation.

Usage: Specify the NetWare network number. The values 00000000 and ffffffff are not valid.

Example: Network=A00100001

Dependencies: This parameter does not apply if the IPX routing is not enabled.

Location: Ethernet > IPX Routes

See Also: Route IPX

New NASPort ID

Description: Specifies the format the MAX recognizes for the NAS-Port (5) RADIUS attribute.

Usage: Specify one of the following:

Location: System > Sys Config

NFAS ID num

Description: Establishes an interface ID for a line using NFAS (Non-Facility Associated Signaling). You must assign a different interface ID for each NFAS line.

Usage: Specify a number between 0 and 31. The default is 1 for line #1 and 2 for line #2.

Dependencies: This applies only if the signaling mode is ISDN_NFAS.

Location: Net/T1 > Line Config > Line N

See Also: Sig Mode

NL Value

Description: Specifies the number of retransmissions to send on this line. The default value is required when the line connects to a DPNSS or DASS2 switch.

Usage: Specify a number between 1 and 255. The default is 64.

Example: NL Value=64

Dependencies: This parameter applies only to E1 lines. It must be set to its default value when the line connects to a DPNSS or DASS2 switch.

Location: Net/E1 > Line Config > Line N

See Also: Switch Type

Node

Description: Specifies the node address on the internal network number of the server that will be reached through this static IPX route. If you are not familiar with internal network numbers, see the Novell documentation.

Usage: Specify the server's node address on its own internal network. Typically, a server running NetWare 3.11 or later has a node number of 0000000000001.

Dependencies: This parameter does not apply if the IPX routing is not enabled.

Location: Ethernet > IPX Routes

See Also: Route IPX, Network

No Trunk Alarm

Description: Specifies whether the back panel alarm relay closes when all T1 PRI lines (or trunks) go out of service. The MAX has an alarm relay whose contacts remain open on the back panel's alarm relay terminal block during normal operation. If you enable them, the alarm relay contacts close during loss of power, hardware failure, or a system reset. The No Trunk Alarm parameter enables you to specify whether the contacts also close when all T1 PRI lines go out of service.

Usage: Specify Yes or No. No is the default.

Location: System > Sys Config

NSSA-Type

Description: Specifies whether or not area border routers convert this ASE type-7 to an ASE type-5 LSA. It applies only when the MAX is routing within an OSPF NSSA (that is, where AreaType is set to NSSA on all interfaces running OSPF). ASE type-7s can be imported only from static route definitions. NSSAs are described in RFC 1587.

Usage: Specify one of the following values:

Dependencies: Keep this additional information in mind:

Location: Ethernet > Static Rtes > any Static Rtes profile

NUI

Description: Specifies the set of Network User Identification (NUI) related facilities to use in next call request. NUI provides information to the network for purpose of billing, security, network management, or to invoke subscribed facilities.

Usage: Specify the NUI to use in the next call request.You can specify up to six digits. The default is null.

Dependencies: Encaps must be set to X25/PAD for NUI to be applicable.

Location: Ethernet > Connections > any Connection profile > Encaps options
Ethernet > Answer > PAD options
Ethernet > Answer > T3POS options

NumPlanID

Description: NumPlanID is used for outbound calls made by the MAX on PRI lines so that the switch can properly interpret the phone number dialed. Ask your PRI provider for details on when to use each of the following settings. This parameter specifies NumberPlanID field in the called party's information element.

Usage: Specify one of the following values:

Dependencies: The value you specify for NumPlanID in the Dial Plan profile overrides the value of NumPlanID in the Call profile and Connection profile if you have enabled the unit's Dial Plan profiles.

Location: Host/Dual (Host/6) > PortN Menu > Directory (Call profiles), Ethernet > Connections (Connection profiles), System > Dial Plan, Ethernet > Frame Relay, Ethernet > X.25

See Also: PRI # Type, Call-by-Call, T1-PRI:NumPlanID (Line profiles) Modem:NumPlanID (System profile)

O

Offset

Description: In a filter of type Generic, specifies a byte-offset from the start of a frame to the data in the packet to be tested against this filter. For example, with this filter specification:

and the following packet contents:

The first two byes in the packet (2A and 31) are ignored due to the two-byte offset.


Note: If the current filter is linked to the previous one (if More=Yes in the previous filter), the offset starts at the endpoint of the previous segment.

Usage: Specify a number indicating a byte-offset.

Example: Offset=2

Location: Ethernet > Filters > Input filters > In filter N > Generic, Ethernet > Filters > Output filters > Out filter N > Generic

See Also: Length, Mask, More

Operations

Description: Enables or disables permission to view MAX profiles and to change the value of any parameter. When it is disabled, users can view MAX profiles, but cannot change the value of any parameter (read-only security). In addition, when this permission is disabled, users cannot access most DO commands. Only DO Esc, DO Close Telnet, and DO password are available.


Note: If this permission is disabled, all other permissions are disabled as well.

Usage: Specify Yes or No. Yes is the default.

Example: Operations=No

Location: System > Security

Option

Description: Specifies the criteria the MAX uses to select a trunk group when it places a call from a Destination profile. Each Destination profile contains six Call-by-Call N and Dial N# parameters. Therefore, you can configure up to six options for reaching the destination device. The Option parameter helps the MAX select which option to use.

Usage: Specify one of the following values:

Location: System > Destinations

See Also: B1 Trnk Grp, B2 Trnk Grp, Base Ch Count, Call-by-Call N, Ch N Trnk Grp, Dial N#, Fail Action

OSPF ASE Preference

Description: Specifies the OSPF ASE Preference the MAX uses when importing an ASE.

Usage: Specify a value from 0 to 255. A value of 255 means that the MAX never puts any ASEs into the routing table.

Example: The default route preferences are:

Dependencies: Keep this additional information in mind.

Location: Ethernet > Mod Config > Route Pref

OSPF Preference

Description: Specifies the preference value for routes learned from the OSPF protocol.

When choosing which routes to put in the routing table, the router first compares the OSPF Preference values, preferring the lower number. If the OSPF Preference values are equal, the router compares the Metric values, using the route with the lower Metric. These are the default values for other types of routes:

Usage: Specify a number between 0 and 255. The default value is 10. Zero is the default for connected routes (such as the Ethernet). The value of 255 means Do not use this route.

Location: Ethernet > Mod Config > Route Pref

Ospf-Cost

Description: Specifies the cost of an OSPF route. The interpretation of this cost depends on the type of external metrics set in the ASE-type parameter. If the MAX is advertising Type 1 metrics, OSPF can use the specified number as the cost of the route. Type 2 external metrics are an order of magnitude larger. Any Type 2 metric is considered greater than the cost of any path internal to the AS (autonomous system).

Usage: Specify a number greater than zero. The default is 1.

Example: Ospf-Cost=1

Location: Ethernet > Static Rtes

See Also: ASE-type, ASE-tag

Own Port Diag

Description: Enables or disables permission to perform the commands in the Port Diag menu for the AIM port that was called.


Note: To completely disable the operator's ability to perform diagnostics for the called port, you must also disable All Port Diag.

Usage: Specify Yes or No. Yes is the default if All Port Diag is set to No.

Dependencies: This parameter is not applicable if the Operations permission is disabled or if All Port Diag is set to Yes.

Location: System > Security

See Also: All Port Diag

P

Packet Characters

Description: Specifies the minimum number of bytes of received data that should accumulate before the data is passed up the protocol stack for encapsulation.

Usage: Specify an integer between 0 and 500. The default value is 0 (zero).

Dependencies: If your application is so specialized that it demands you use this parameter, be sure to set the Packet Wait Time parameter to an appropriate value. This parameter does not apply if terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

See Also: Packet Wait Time

Packet Wait time

Description: Specifies the maximum amount of time in milliseconds that any received data can wait before being passed up the protocol stack for encapsulation.

Usage: Specify an integer between 0 and 600 milliseconds. The default value is 0 (zero).

Dependencies: If your application is so specialized that it demands you use this parameter, be sure to take into account your modem speeds when calculating its value. This parameter does not apply if terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

See Also: Packet Characters

Palmtop

Description: Specifies whether the MAX enables or disables access to AIM ports through the Palmtop Controller. If it is restricted, the operator cannot use commands specific to an AIM port, cannot access the System menus, Network menus, and Host-interface profiles, and cannot edit parameters specific to an AIM port, unless the operator is doing so through the base system's Palmtop port and the Palmtop Port # parameter enables access to the port.

If you are operating a MAX through a Palmtop port, you can change your access from Full to Restrict, but you cannot change your access from Restrict to Full. Only a terminal connected to the Control port (the back panel's DE-9 connector) can provide full access.

Usage: Specify one of the following values:

Location: Host/Dual (Host/6) > Mod Config

See Also: Palmtop Port #

Palmtop Menus

Description: Specifies whether the user of a Palmtop Controller connected to a Palmtop port has access to the standard set of menus, the command-line interface, or the simplified menus.

Usage: Specify one of the following values:

Location: Host/Dual (Host/6) > Mod Config

Palmtop Port #

Description: Specifies the AIM port to which a Palmtop port has access if Palmtop access is restricted.

Usage: Specify the number of an AIM port. If you enter 0 (zero), the user of the Palmtop port has access to any AIM port.

Location: Host/Dual (Host/6) > Mod Config

See Also: Palmtop

Parallel Dial

Description: Specifies the number of channels that the MAX can dial simultaneously over the T1 PRI line, or that the MAX can disconnect simultaneously. Although you can specify any number of channels, the initial number of channels in a connection never exceeds the value of the Base Ch Count parameter. Similarly, when the MAX adds or subtracts channels, the values for Max Ch Count and Min Ch Count override any setting for Parallel Dial.


Note: If calls from the U.S. to another country have trouble establishing an initial connection at the full bandwidth, reduce the Parallel Dial parameter to a value of 2 or 1.

Usage: Specify a number between 1 and 12. The default is 5.

Location: System profile: System > Sys Config

See Also: Base Ch Count

Passwd

Description: Specifies the terminal-server password (Ethernet profile) or the password required to authenticate a Security profile (Security profile). The first Security profile, Default, has no password.


Note: Passwords are case-sensitive.

Usage: Specify up to 20 characters.

Dependencies: In the Ethernet profile, this parameter does not apply if terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options, System > Security

See Also: Edit Security, TS Enabled

Passwd Prompt

Description: Specifies the prompt the terminal server displays when asking the user for his or her password.

Usage: Specify up to 31 characters. The default value is Password:

Dependencies: This parameter does not apply if terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

Password

Description: Specifies the password that an incoming ARA caller must supply (Connection profile) or the password the foreign agent must specify under ATMP (Ascend Tunnel Management Protocol) in order to access this unit (Ethernet profile).


Note: Passwords are case-sensitive.

Usage: Specify up to 20 characters.

Dependencies: In a Connection profile, this parameter is not applicable unless Encaps is set to ARA. In the Ethernet profile, it is not applicable unless ATMP is enabled and the ATMP Mode is Home.

Location: Ethernet > Connections > Encaps Options, Ethernet > Mod Config > ATMP Options

See Also: AppleTalk, ARA, ATMP Gateway, ATMP Mode, Encaps, Type, UDP Port

Password Reqd

Description: Specifies that a password will be required to authenticate Combinet connections.

Usage: Specify Yes or No. No is the default.

Example: Password Reqd=Yes

Dependencies: This parameter applies only to Combinet connections.

Location: Ethernet > Answer > COMB Options, Ethernet > Connections > Encaps Options

See Also: COMB, Encaps, Recv PW, Send PW, Station

Pbx Type

Description: Specifies the signaling conversion the MAX provides when the signaling mode is PBX T1 for the second T1 line.

Usage: Specify one of the following values:

Dependencies: The setting you specify for PBX Type affects the Ans Service parameter in these ways:

Location: Net/T1 > Line Config > Line N

See Also: Ans Service, Ans #, Sig Mode

Peer

Description: Specifies whether the remote IPX caller is a router or a dialin client. The Answer profile > IPX Options > Peer parameter specifies how the MAX negotiates IPX, with callers that have no configured Connection profile, assuming them to be either IPX routers or IPX clients.

Usage: Specify one of the following values:

Dependencies: This parameter does not apply if IPX routing is not enabled. It requires that a virtual IPX network number be provided in the IPX Pool parameter.

Location: Ethernet > Connections > IPX Options
Ethernet > Answer > IPX Options

See Also: IPX Pool#

Peer (AppleTalk Options)

Description: Indicates whether the connection for this profile is a single-user PPP connection or a router.

Usage: Select Peer=Dialin to indicate that the profile is for a single user PPP connection. All other fields in the AppleTalk options menu are N/A. If you select Peer=Dialin, you have completed the configuration; close the AppleTalk Options menu and save your changes.

Select Peer=Router to indicate that the profile is for a connection with a router (such as an Ascend Pipeline unit).

Dependencies: If you select Peer=Router, you will need to configure the other fields in the AppleTalk options menu. You must select the following:

Location: Ethernet > Connections > AppleTalk Options

See Also: Net Start, Net End, AppleTalk, AppleTalk Router, Route AppleTalk, Zone Name

PID selection

Description: For DTE-initiated calls, this specifies which Protocol Identifier (PID) the PAD includes in the call request packet it sends to the host.

Usage: Specify one of the following values:

Dependencies: This parameter is always applicable.

Location: Ethernet > Connections > any Connection profile > Encaps options
Ethernet > Answer > T3POS options

Pkt Audio Mode

Description: Specifies the type of voice compression and coding used with any MultiVoice call. MultiVoice calls are compressed before the MultiVoice Gateway sends them across an IP network.

Usage: Specify one of the following values:

Example: Pkt Audio Mode=G.729

Dependencies: Pkt Audio Mode only applies if the MAX acts as a MultiVoice Gateway.

Location: Ethernet > Mod Config > VOIP Options

See Also: GK IP Adrs, VPN Mode

Pool

Description: Specifies an IP address pool from which the caller will be assigned an IP address. If the Pool parameter is null but all other configuration settings enable dynamic assignment, the MAX gets IP addresses from the first defined address pool.

You can define up to 10 IP address pools in the vt100 interface. RADIUS supports up to 50 address pools.

Usage: Specify the number of the pool. The default is 1.

Location: Ethernet > Connections > IP Options

See Also: Assign Adrs, Pool # Count, Pool # Start

Pool #N count (N=1-10)

Description: Specifies how many IP addresses are in the numbered pool (up to 254). N represents the number of the pool, which may be 1 through 10.


Note: Addresses in a pool do not accept a netmask modifier, because they are advertised as host routes. If you allocate IP addresses on a separate IP network or subnet, make sure you inform other IP routers about the route to that network or subnet.

Usage: For each pool, specify a number between 0 and 254.

Dependencies: The starting address must be specified in the Pool #N start parameter.

Location: Ethernet > Mod Config > WAN Options

See Also: Pool only, Pool #N start

Pool only

Description: Instructs the MAX to hang up if a caller rejects the dynamic assignment. During PPP negotiation, a caller may reject the IP address offered by the MAX and present its own IP address for consideration. Connection profiles compare IP addresses as part of authentication, so the MAX would automatically reject such a request if the caller has a Connection profile. However, Names/Passwords profiles have no such authentication mechanism, and could potentially allow a caller to spoof a local address.

Usage: Specify Yes or No. No is the default.

Dependencies: At least one address pool must be defined, and addresses must be available.

Location: Ethernet > Mod Config > WAN Options

See Also: Pool # Count, Pool # Start

Pool #N name (N=1-10)

Description: Specifies the name of an IP address pool

Usage: Specify a name. You can enter up to 10 characters. The first character cannot be a number.

Location: Ethernet > Mod Config > WAN Options

Pool #N start (N=1-10)

Description: Specifies the first address in a block of contiguous addresses on the local network or subnet. The Pool#1 count parameter specifies the number of contiguous addresses in that pool

Usage: Specify the first IP address in the pool. The address you specify does not need to be on the same LAN segment as the MAX. The default is 0.0.0.0.

Example: Pool #1 Start=200.207.23.1

Dependencies: The number of addresses in the pool must be specified in the Pool #N count parameter.

Location: Ethernet > Mod Config > WAN Options

See Also: Pool #N count, Pool only

Pool Number

Description: Specifies the IP address pool to use to assign addresses to NAT clients.

Usage: Specify the IP address pool to use to assign IP addresses to clients using this connection. The valid range is from 0 to 150 (RADIUS) or 0 to 10 (pool configuration in the Ethernet profile). The default is 0. A value of 0 means the MAX will assign any address from any available pool.

Dependencies: This parameter does not apply if Reply Enabled is set to No.

Location: Ethernet > Answer > DHCP options, Ethernet > Connections > DHCP options

See Also: Reply Enabled

Pool OSPF Adv Type

Description: Specifies how to import summarized pool addresses into OSPF.

Usage: Specify one of the following values:

Dependencies: Pool OSPF Adv Type applies if you must set Pool Summary=Yes and enable OSPF. For a change in the Pool OSPF Adv Type setting to take effect, you must reset the MAX.

Location: Ethernet > Mod Config > WAN Options

See Also: Active, Pool Summary

Pool Summary

Description: Indicates that network summarization is in use.

Network summarization reduces the size of route advertisements by summarizing a series of host routes into a network advertisement. Packets destined for a valid host address on that network are routed to the host, and packets destined for an invalid host address are rejected with an ICMP "host unreachable" message. To use the pool summary feature, create a network-aligned pool and set the Pool Summary parameter to Yes.

To be network-aligned, the Pool Start address must be the first host address. Pool Start address -1 is used to determine the network address (the zero address on the subnet). To have a power of two size, the Pool Count value must be two less than a power of two; for example, 2, 6, 14, 30, 62, 126. The Pool Count value + 2 is used to create a netmask. For example, with this configuration:

The network alignment address is Pool Start address -1: 10.12.253.0 and the netmask is Pool Count +2 addresses: 255.255.255.128. The resulting address pool network is:

Usage: Specify Yes or No. No is the default.

Example: Pool Summary=Yes

Dependencies: The Pool Count and Pool Start values must be set up as described above.

Location: Ethernet > Mod Config > WAN Options

See Also: Pool #N start, Pool #N count

Port

Description: Specifies whether the MAX traps AIM port state changes and sends traps-PDUs (Protocol Data Units) to the SNMP manager. For details on the events that cause the MAX to send a traps-PDU, see the Ascend Enterprise Traps MIB.

Usage: Specify Yes or No. No is the default.

Example: Port=Yes

Location: Ethernet > SNMP Traps

Port N/N Dual (N/N=1/2, 3/4, 5/6)

Description: Specifies whether the MAX pairs ports for dual-port or FT1-B&O calls on a Host/6 module. In a dual-port call, a codec performs inverse multiplexing on two channels so that a call can achieve twice the bandwidth of a single channel. Inverse multiplexing is a method of combining individually dialed channels into a single, higher-speed data stream.

The codec provides two ports, one for each channel. Two AIM ports on the MAX connect a dual-port call to the codec; these ports can be the V.35, RS-499, or X.21 ports on the MAX, and are called the primary port and the secondary port. Because the MAX places the two calls in tandem and clears the calls in tandem, it considers them a single call.

Usage: Specify Yes or No. No is the default.

Dependencies: For a dual-port call, the call type is 2-channel. For an FT1-B&O call, the call type is FT1-B&O.

Location: Host/Dual (Host/6) > Mod Config

Port Name

Description: Specifies a name for the Port profile. This name replaces PortN Menu as a menu title. For example, if it is set to Ascend for AIM port #1, the menu called 21-000 Port1 Menu becomes 21-100 Ascend.

Usage: Specify the name. You can specify up to 16 alphanumeric characters.

Example: Port Name=Ascend

Location: Host/Dual (Host/6) > PortN Menu > Port Config

Port Password

Description: Specifies the password for incoming AIM or BONDING calls. Authentication is used only if the calling unit has a password defined in the Call profile. If the Call profile in the calling unit does not have a password defined, the units connect without authentication even though the originating unit may have sent parameters. Note that the MAX only authenticates AIM and BONDING calls; dual-port calls are not authenticated.

Usage: Enter a password of nine characters or less.

Example: Port Password=Ascend

Location: Host/Dual (or Host/6 > Port N Menu > Port Config

See Also: Call Password

PPP

Description: In the Answer profile, this enables incoming PPP (Point-to-Point Protocol) connections. PPP sessions are single-channel connections to any remote device running PPP software. In the Ethernet profile, this enables terminal server users to initiate a framed PPP session from the terminal-server command line interface.

Usage: Specify Yes or No. Yes is the default in the Answer profile. No is the default in the Ethernet profile.

Dependencies: In the Ethernet profile, this parameter does not apply if terminal services are disabled.

Location: Ethernet > Answer > Encap, Ethernet > Mod Config > TServ Options

See Also: TS Enabled

PPP Delay

Description: Specifies the number of seconds the MAX waits for PPP packets before transitioning to terminal server mode. Note that this applies to incoming modem, V.110, or V.120 asynchronous calls.

Usage: Specify a number between 1 and 60. The default is 5 seconds.

Dependencies: This parameter does not apply if terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

PPP Direct

Description: Specifies whether to start PPP negotiation immediately after a user enters the PPP command in the terminal server interface, or to wait to receive a PPP packet from an application. (Some applications expect to receive a packet first.)

Usage: Specify Yes or No. No is the default.

Dependencies: This parameter does not apply if terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

See Also: PPP, PPP Delay

PPP Info

Description: Specifies what message is displayed when a terminal server user initiates a framed PPP session from the command line.

Usage: Specify one of the following values:

Dependencies: This parameter does not apply if terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

See Also: TS Enabled

PPTP Enabled

Description: Enables or disables PPTP (Point-to-Point Tunneling Protocol) functionality in the MAX. When PPTP is enabled, the MAX can bring up a PPTP tunnel with a PPTP Network Server (PNS) and respond to a request for a PPTP tunnel from a PNS. You must specify the IP address of the PNS in one or more of the Route Line parameters.

Usage: Specify Yes or No. No is the default.

See Also: Route Line n, Line n tunneling type

Location: Ethernet > Mod Config > L2 Tunneling Options submenu

Preempt

Description: Specifies the number of idle seconds the MAX waits before using one of the channels of an idle link for a new call.

Usage: Specify a number between 0 and 65535. The MAX sets no time limit if you enter 0 (zero). The default setting is 60.

Location: Ethernet > Answer > Session Options, Ethernet > Connections > Session Options

See Also: Call Type

Preference

Description: Specifies the preference value for a route. RIP is a distance-vector protocol, which uses a hop count to select the shortest route to a destination network. OSPF is a link- state protocol, which means that OSPF can take into account a variety of link conditions, such as the reliability or speed of the link, when determining the best path to a destination network. Because these two metrics are incompatible, the MAX supports route preferences.

When choosing which routes should be put in the routing table, the router first compares preference values, preferring the lower number. If the preference values are equal, then the router compares the metric field, using the route with the lower metric.

Usage: Specify a number between 0 and 255. Zero is the default for connected routes (such as the Ethernet). The value of 255 means Do not use this route; this value is meaningful only for Connection profiles.

Location: Ethernet > Connections > IP Options, Ethernet > Static Rtes

PRI # Type

Description: PRI # Type is used for outbound calls made by the MAX on PRI lines so that the switch can properly interpret the phone number dialed. Ask your PRI provider for details on when to use each of the following settings. This parameter specifies the TypeOfNumber field in the called party's information element.

Usage: Specify one of the following values:

Dependencies: The value you specify for PRI # Type in the Dial Plan profile overrides the value of PRI # Type in the Call profile and Connection profile if you have enabled the unit's Dial Plan profiles.

Location: Host/Dual (Host/6) > PortN Menu > Directory (Call profiles), Ethernet > Connections (Connection profiles), System > Dial Plan, Ethernet > Frame Relay, Ethernet > X.25

See Also: NumPlanID, Call-by-Call, T1-PRI:PRI # Type (Line profiles), Modem:PRI# Type (System profile)

Pri DNS

Description: Specifies the IP address of the primary domain name server. You can specify a primary and secondary name server of each type. The secondary server is accessed only if the primary one is inaccessible.

Usage: Specify the IP address of the primary domain name server. The default value is 0.0.0.0. Accept this default if you do not have a domain name server.

Example: Pri DNS=10.207.23.1

Location: Ethernet > Mod Config > DNS

See Also: Domain Name, Sec DNS

Pri Num

Description: Specifies the primary add-on number for the ISDN BRI line. When the MAX receives a multichannel AIM, BONDING, or MP+ call, it reports the primary add-on number (Pri Num) and the secondary add-on number (Sec Num) to the calling party. The calling MAX can then add more channels. If you do not specify an add-on number and the calling MAX needs to add more channels, it redials the phone number it used to make the first connection. For example, suppose that 777-3330 is the primary number for line #1, and 777-3331 is the secondary number for line #1. Set Pri Num=30 and Sec Num=31. (See Ch N # (N=1-24, 1- 32)for more detail on add-on numbers.)

Usage: Specify a phone number with a limit of 24 characters, which can include the following characters: 1234567890()[]!z-*#|. The default is null.

Example: Pri Num=30

Location: Net/BRI > Line Config > Line N

See Also: Sec Num, Sub-Adr

Priority

Description: Specifies the priority of this router with respect to the designated router and backup designated router elections under OSPF. When two routers attached to a network attempt to become the designated router, the one with the highest Priority value takes precedence. A router whose Priority is set to 0 (zero) is ineligible to become the designated router on the attached network.

Usage: Specify a number. The default value is 5.

Location: Ethernet > Connections > OSPF Options, Ethernet > Mod Config > OSPF Options

Pri SPID

Description: Specifies the primary Service profile Identifier (SPID) for the ISDN BRI line. The SPIDs assigned to a BRI line operating in multipoint mode are numbers used at the central switch to identify services provisioned for your ISDN line. A SPID is derived from a telephone number and should be supplied by your carrier.


Note: Not all telephone companies include a suffix on their SPIDs. When receiving SPIDs from your telephone company, ask them to verify whether or not suffixes are included. The SPID formats described in the next sections have been agreed upon by most telephone companies.

For example, for an AT&T switch in multipoint mode, SPIDs have one of these formats:

01nnnnnnn0

01nnnnnnn00

In the AT&T SPID formats, nnnnnn is the 7-digit phone number (not including the area code). For example, if the phone number is 555-1212, the SPID will be 0155512120 or 01555121200.

For a Northern Telecom switch, SPIDs have one of these formats:

aaannnnnnnSS

aaannnnnnnSS00

In the Northern Telecom SPID formats, aaannnnnn is the 10-digit phone number (including the area code). SS is an optional suffix-if specified it is a one or two-digit number differentiating the channels. For example, if the phone numbers are 212-555-1212 and 212-555-1213, the SPIDs may be:

21255512121

21255512132

or:

212555121201

212555121302

or one of the above formats followed by 00 (for example, 21255512130200).

Usage: Specify up to 16 characters; you must limit those characters to numbers, hyphens, and parentheses. The default value is 0 (zero).

Location: Net/BRI > Line Config > Line profile > Line N

See Also: B1 Usage, B2 Usage, Link Type, Pri Num, Sec Num, Sec SPID, Switch Type

Private

Description: Specifies whether the MAX will disclose the existence of this route when queried by RIP or another routing protocol. Private routes are used internally but are not advertised.

Usage: Specify Yes or No. No is the default.

Dependencies: This parameter does not apply if the IP routing is not enabled.

Location: Ethernet > Connections > IP Options, Ethernet > Static Rtes

See Also: LAN Adrs, Metric, RIP, Route IP

Pri WINS

Description: Specifies the IP address of the primary Windows Internet Name Service (WINS) server.

Usage: Specify an IP address in dotted decimal notation. The default is 0.0.0.0.

Dependencies: Pri WINS applies only to Telnet and raw TCP connections running under the MAX unit's terminal server interface.

Location: Ethernet > Mod Config > DNS

See Also: Sec WINS

Profile Reqd

Description: Specifies whether the MAX rejects incoming calls for which it could find no Connection profile and no entry on a remote authentication server. If you do not require a configured profile for all callers, the MAX builds a temporary profile for unknown callers. Many sites consider this a security breach.


Note: Setting Profile Reqd to Yes disables Guest access for ARA connections.

Usage: Specify Yes or No. No is the default.

Dependencies: This parameter does not apply to terminal server calls.

Location: Ethernet > Answer

See Also: AppleTalk, Encaps, Recv Auth, Route IP

Prompt

Description: Specifies the prompt the MAX displays during a terminal server session.

Usage: Specify a string containing up to 15 characters. The default is ascend%.

Dependencies: This parameter is not applicable if terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

See Also: TS Enabled

Prompt Format

Description: Determines whether you are able to use the multi-line format for the terminal server login prompt.

Usage: Specify Yes or No. No is the default.

Example: Prompt Format=No

Dependencies: This parameter is not applicable if terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

See Also: TS Enabled, Login Prompt

Protocol

Description: In a filter of type IP, specifies the protocol number to which the MAX compares a packet's protocol number. f you specify a protocol number, the MAX compares it to the protocol number field in packets to match them to this filter. The default protocol number of zero matches all protocols. Common protocols are listed below, but protocol numbers are not limited to this list. For a complete list, see the section on Well-Known Port Numbers in RFC 1700, Assigned Numbers, by Reynolds, J. and Postel, J., October 1994.

Usage: Specify the number of the protocol. You can enter a number between 0 and 255. The default setting is 0 (zero). When you accept the default, the MAX disregards the Protocol parameter when applying the filter.

Location: Ethernet > Filters > Input filters > In filter N > IP, Ethernet > Filters > Output filters > Out filter N > IP

See Also: Type, Valid

Proxy Mode

Description: Specifies under what conditions the MAX responds to ARP requests for remote devices that have been assigned an address dynamically. It responds to the ARP request with its own MAC address while bringing up the connection to the remote device. This feature is referred to as Proxy ARP.

Description: Specify one of the following values:

Dependencies: This parameter does not apply if IP routing is not enabled.

Location: Ethernet > Mod Config > Ether Options

See Also: Net Adrs, Route IP

Q

Queue Depth

Description: The maximum number of unprocessed SNMP requests which the MAX saves. If SNMP requests arrive at a rate faster than they can be processed, then a backlog builds up. This parameter sets the maximum depth of the queue. If the queue fills, further packets destined for it are discarded.

Usage: Enter an integer value from 0 to 1024. If you enter 0, the MAX saves SNMP requests until it runs out of memory. 0 is the default.


Note: Setting Queue Depth to 0 is not recommended. An unlimited queue depth could result in an out-of-memory error on the MAX if it receives a flood of packets on its SNMP port.

Location: Ethernet > Mod Config > SNMP options...

See Also: Rip Queue Depth

R

R/W Comm Enable

Description: Enables and disables the use of SNMP set commands.

Usage: Press Enter to select Yes or No.

Location: Ethernet > Mod Config > SNMP Options

See Also: R/W Comm, Read Comm

R/W Comm

Description: Specifies a read/write SNMP community name. If an SNMP manager sends this community name, it can access the Get, Get-Next, and Set SNMP agents.

Usage: Specify the community name that the MAX will use for authenticating the SNMP management station for read-write access. You can enter letters and numbers, up to a limit of 16 characters. The default is Write.

Location: Ethernet > Mod Config > SNMP Options

See Also: Read Comm, R/W Comm Enable

Rate Limit

Description: Specifies the rate at which the MAX accepts multicast packets from clients on this interface. It does not affect the MBONE interface.


Note: By default, the Rate Limit parameter is set to 100. This disables multicast forwarding on the interface. If multicast forwarding is enabled on the interface but the Rate Limit parameter is left at the default 100, he forwarder handles IGMP packets, but does not accept packets from clients or forward multicast packets from the MBONE router.

To begin forwarding multicast traffic on the interface, you must set the rate limit to a number less than 100. For example if you set it to 5, the MAX accepts a packet from multicast clients on the interface every 5 seconds. Any subsequent packets received in that 5-second window are discarded.

Usage: Specify a number lower than the default 100 to begin forwarding multicast traffic on the interface.

Example: Multicast Rate Limit=5

Dependencies: This parameter has no effect when applied to the MBONE interface.

Location: Ethernet > Mod Config > Multicast

See Also: Multicast Forwarding, Mbone Profile, Client, Multicast Rate Limit

RD MgrN (N=1-5)

Description: Specifies up to five IP addresses of SNMP managers that have SNMP read permission. The MAX responds to SNMP get and get-next commands from these SNMP managers only.

Usage: Specify the IP address of a host running an SNMP manager. The default is 0.0.0.0.

Dependencies: The Security parameter must be set to Yes for the RD Mgr1-5 parameters to have any effect. If the Security parameter is set to Yes, only SNMP managers at the IP addresses you specify can execute the SNMP get and get-next commands.

Location: Ethernet > Mod Config > SNMP Options

See Also: Security, WR Mgr1-5

Read Comm

Description: Specifies a read-only SNMP community name. If an SNMP manager sends this community name, it can access the Get and Get-Next SNMP agents.

Usage: Specify the community name that the MAX uses for authenticating the SNMP management station for read-only access. You can enter up to 16 alphanumeric characters. The default is Public.

Location: Ethernet > Mod Config > SNMP Options

See Also: R/W Comm, R/W Comm Enable

Recv Auth

Description: Specifies the authentication protocol the MAX uses to receive and verify a password for an incoming PPP connection.

Usage: Specify one of the following values:

Dependencies: If you specify an authentication method, you must also specify a password in the caller's profile. For a nailed connection, you must set Recv Auth and Send Auth to the same value at both ends of the connection.

Location: Ethernet > Answer > PPP Options

See Also: Auth Host, Recv PW, Send Auth, Send PW

Recv PW

Description: Specifies the password that the MAX expects to receive from the far-end while the connection is being authenticated. If this password is not sent by the far-end device, authentication fails. For PPP links, the password can contain up to 20 characters. For X.25/ PAD, it can contain 48 characters.

If the link uses Combinet bridging, and the Answer profile requires a Combinet password, specify a password using all lowercase letters.

Usage: Specify a password. The password is case sensitive. The default is null.

Dependencies: This parameter does not apply if Recv Auth is set to None.

Location: Ethernet > Connections > Encaps Options, Ethernet > Names / Passwords

See Also: Encaps, Password Reqd, Recv Auth, Send Auth, Send PW

Remote Conf

Description: Specifies whether or not a RADIUS server remotely configures the login banner and a list of Telnet hosts for the terminal-server menu mode.

Usage: Specify Yes or No. No is the default.

Location: Ethernet > Mod Config > TServ Options

See Also: Banner, Host # Addr, Host # Text, Upd Rem Cfg

Remote Mgmt

Description: Specifies whether the operator at the far end of an AIM call can manage the MAX remotely using the DO Beg/End Rem Mgm command. In remote management, the MAX uses bandwidth between sites over the management subchannel established by the AIM protocol. If remote management is disabled and the remote operator attempts to invoke that DO command, the message "Remote Management Denied" is displayed.

Usage: Specify Yes or No. Yes is the default.

Dependencies: This parameter applies only when Call Type is set to AIM, FT1-B&O, or FT1- AIM. It does not apply if Call Mgm=Static.

Location: System > Sys Config

See Also: Call Mgm, Call Type

Remote X.121 Addr

Description: Specifies the X.121 address of the remote X.25 host to which this profile connects. The remote host is assumed to also support RFC1356 encapsulation of IP packets.


Note: This field cannot be left empty if Call Mode is set to Both or Outgoing.

Usage: Specify the X.121 address of the remote X.25 host. An X.121 address contains between 1 and 15 decimal digits, such as 031344159782738.

Example: Remote X.121 Addr=031344159782111

Location: Ethernet > Connections > Encaps Options

See Also: Call Mode

Reply Enabled

Description: Specifies whether the MAX processes DHCP packets and acts as a DHCP server on this connection.

Usage: Specify Yes or No. No is the default.

Location: Ethernet > Answer > DHCP options, Ethernet > Connections > DHCP options

Retransmit Interval

Description: Specifies the number of seconds between retransmissions of OSPF packets. OSPF uses this value for LSA transmissions and when retransmitting Database Description and Link State Request Packets.

Usage: Specify a number greater than zero. The default is 5.

Example: Retransmit Interval=15

Location: Ethernet > Connections > OSPF Options, Ethernet > Mod Config > OSPF Options

Retry limit

Description: Specifies the number of times in a row, per connection, that the PAD allows the DTE to send a frame or frame acknowledgment in error before it disconnects the call. For a dial-up connection, the Retry Limit specifies how many times the PAD will allow the DTE to try to establish a call that fails because the X.25 virtual call to the host could not be established. When the DTE exceeds the Retry Limit, the PAD disconnects the call.

Usage: Specify a value between 1 and 15. The default is 3.

Dependencies: This parameter is always applicable.

Location: Ethernet>Connections>any Connection profile>Encaps options
Ethernet > Answer > T3POS options

Reverse Charge

Description: Specifies whether the call packet should include a reverse charge request facility parameter.

Usage: Specify one of the following values:

Dependencies: This parameter is always applicable.

Location: Ethernet > Connections > any Connection profile > Encaps options
Ethernet > Answer > T3POS options

RIP

Description: Specifies how the MAX handles RIP update packets on the interface.


Note: Ascend recommends that all routers and hosts run RIP-v2 instead of RIP-v1. The IETF has voted to move RIP version 1 into the historic category and its use is no longer recommended.

Usage: Specify one of the following values:

Dependencies: This parameter does not apply if the MAX does not route IP.

Location: Ethernet > Answer > Session Options, Ethernet > Connections > IP Options, Ethernet > Mod Config > Ether Options

See Also: Route IP

RipASEType

Description: Specifies how RIP routes are propagated into OSPF.

Usage: Specify one of the following values:

Dependencies: This parameter does not apply if the MAX does not route OSPF.

Location: Ethernet > Mod Config > Route Pref

RIP Policy

Description: Specifies a split horizon or poison reverse policy to handle update packets that include routes that were received on the same interface on which the update is sent. Split- horizon means that the MAX does not propagate routes back to the subnet from which they were received. Poison-reverse means that it propagates routes back to the subnet from which they were received with a metric of 16.

Usage: Specify Split Hrzn or Poison Rvrs. Poison Rvrs is the default.

Example: RIP Policy=Poison Rvrs

Dependencies: This parameter does not apply to RIP-v2. It applies only to RIP-v1 packets.

Location: Ethernet > Mod Config

Rip Preference

Description: Specifies the preference value for routes learned from the RIP protocol.

When choosing which routes to put in the routing table, the router first compares the Rip Preference values, preferring the lower number. If the Rip Preference values are equal, the router compares the Metric values, using the route with the lower Metric.

Usage: Specify a number between 0 and 255. The default value is 100. Zero is the default for connected routes (such as the Ethernet). The value of 255 means Do not use this route.

Dependencies: These are the default values for other types of routes:

Location: Ethernet > Mod Config > Route Pref

Rip Queue Depth

Description: The maximum number of unprocessed RIP requests which the MAX saves. If RIP requests arrive at a rate faster than they can be processed, then a backlog builds up. This parameter sets the maximum depth of the queue. If the queue fills, further packets destined for it are discarded. This limit applies to each RIP socket, so if RIP is running on multiple interfaces, this parameter limits the number of requests stored per interface.

Usage: Enter an integer value from 0 to 1024. If you enter 0, the MAX saves RIP requests until it runs out of memory. 50 is the default.


Note: Setting Queue Depth to 0 is not recommended. An unlimited queue depth could result in an out-of-memory error on the MAX if it receives a flood of packets on its RIP port.

Dependencies: This parameter does not apply if the MAX does not listen to RIP updates.

Location: Ethernet > Mod Config > Route Pref...

See Also: Queue Depth, RIP

RIP Summary

Description: Specifies whether to summarize subnet information when advertising routes. If the MAX summarizes RIP routes, it advertises a route to all the subnets in a network of the same class; for example, the route to 200.5.8.13/28 (a class C address) would be advertised as a route to 200.5.8.0. When the MAX does not summarize information, it advertises each route in its routing table "as-is;" in our example, the MAX advertises a route only to 200.5.8.13.

Usage: Specify Yes or No. Yes is the default.

Dependencies: This parameter does not apply to RIP-v2. It applies only to RIP-v1 packets. In addition, note that RIP Summary does not affect host routes.

Location: Ethernet > Mod Config

Rip Tag

Description: Assigns a specific tag to all routes propagated from RIP into OSPF. A tag is a 32-bit hexadecimal number border routers can use to filter this record.

Usage: Specify a 32-bit hexadecimal number. The default is c0000000.

Dependencies: This parameter does not apply if the MAX does not route OSPF.

Location: Ethernet > Mod Config > Route Pref

Rlogin

Description: Specifies whether an Rlogin session can be invoked from the terminal-server command line.

Usage: Specify Yes or No. No is the default.

Example: Rlogin=Yes

Dependencies: This parameter does not apply if terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

See Also: TS Enabled

Rob Ctl

Description: Specifies the robbed-bit call control mechanism that the MAX uses for inband signaling or a PBX that is not of type Leased 1:1. For inband signaling, the MAX places and answers calls using the call control mechanism you specify.

For PBX T1 conversion, the MAX emulates the WAN switch, and the PBX places and answers calls using the call control mechanism you specify.


Note: The call control mechanisms are based on the AT&T Special Access Connections specification for ACCUNET T1.5 services (AT&T TR 41458). Regardless of the type of call control mechanism you specify, the switch should not forward dialed digits to the MAX; doing so disrupts the handshaking process during multichannel calls.

Usage: Specify one of the following values:

Location: Net/T1 > Line Config > Line N

See Also: PBX Type, Sig Mode

Route AppleTalk

Description: This parameter enables or disables the routing of AppleTalk data packets on the interface. AppleTalk routing must be set on both sides of the connection, and the parameter in the AppleTalk options submenu for the profile.

Usage: Specify Yes or No. No is the default.

Location: Ethernet > Answer > PPP Options, Ethernet > Connections

See Also: Net Start, Net End, AppleTalk, AppleTalk Router, Route AppleTalk, Zone Name

Route IP

Description: Enables or disables the routing of IP data packets on the interface. IP routing must be enabled on both sides of the connection, and the MAX unit must be configured with an IP address in the Ethernet profile. To establish an inbound connection, IP routing must also be enabled in the Answer profile.

Usage: Specify Yes or No. Yes is the default.

Dependencies: If you have a MAX running Multiband Simulation, Route IP is disabled.

Location: Ethernet > Answer > PPP Option, Ethernet > Connections

See Also: Bridge, Encaps, Profile Reqd

Route IPX

Description: This parameter enables or disables the routing of IPX data packets on the interface. IPX routing must be enabled on both sides of the connection, and the MAX unit must be configured with an IPX network address and frame type in the Ethernet profile. Note that the MAX will route and spoof only one IPX frame type. Other frame types will be bridged if bridging is enabled.

Usage: Specify Yes or No. No is the default.

Dependencies: If you have a MAX running Multiband Simulation, Route IPX is disabled.

Location: Ethernet > Answer > PPP Options, Ethernet > Connections

See Also: Bridge, IPX Frame, IPX Net

Route line n

Description: Specifies the IP address of the L2TP Network Server (LNS) if you set Line n tunnel type to L2TP, or the IP address of the PPTP Network Server (PNS) if you set Line n tunnel type to PPTP.

Usage: Specify an IP address. The default is 0.0.0.0. If you accept the default, the MAX does not tunnel any call received on the WAN line specified in Line n tunnel type.

Example: Route Line 1=10.10.10.10

Dependencies: When configuring L2TP, Route line n applies only if you set L2TP Mode to LAC or Both. When configuring PPTP, Route line n applies only if you set PPTP Enabled to Yes. You must also set the corresponding Line n tunnel type parameter to PPTP or L2TP, as applicable.

Location: Ethernet > Mod Config > L2 Tunneling Options

See Also: L2TP Mode, PPTP Enabled, Line n tunnel type

RPOA

Description: Specifies the set of Recognized Private Operating Agency (RPOA) user facilities to use in the next call request. The RPOA facilities provide the data network identification code for the requested initial RPOA transit network and is in the form of four decimal digits.

Usage: Specify the RPOA user facilities to use in the next call request. You can specify up to four digits. The default is null.

Dependencies: Encaps must be set to X25/PAD for RPOA to be applicable.

Location: Ethernet > Connections > any Connection profile > Encaps options
Ethernet > Answer > PAD options
Ethernet > Answer > T3POS options

RS-366 Esc

Description: Specifies the escape character the MAX uses during RS-366 ext2 dialing or during X.21 ext2 dialing.

Usage: Specify an escape character. You can enter one of these characters:

The default is #.

Location: Host/Dual (Host/6) > PortN Menu > Port Config

See Also: Dial

Run OSPF

Description: Enables or disables OSPF on the interface. When OSPF is active, the MAX sends update packets out on the interface. These packets set the correct link state for the interface and make sure that the local link-state database is an exact copy of the database maintained by other OSPF routers.

Usage: Specify Yes No. No is the default.

Dependencies: If you have a MAX running Multiband Simulation, Run OSPF is disabled.

See Also: Ethernet > Connections > OSPF Options, Ethernet > Mod Config > OSPF Options

S

SAP HS Proxy

Description: This parameter specifies whether the MAX performs SAP Home Server Proxy.

Usage: Press Enter to cycle through the choices.

Dependencies: The SAP HS Proxy parameter does not apply (SAP HS Proxy=N/A) if IPX routing is disabled (Route IPX=No).

Location: Ethernet > Connections > Any Connection Profile > IPX Options

SAP HS Proxy Net#n (n=1-6)

Description: Specifies an IPX network to which SAP broadcasts should be directed.

Usage: Press Enter to open a text field. Then, type an IPX network number using an 8-digit (4-byte) hexadecimal value. The default is 00000000.

Dependencies: The SAP HS Proxy Net#n parameter does not apply (SAP HS Proxy Net#n=N/A) if either IPX routing is disabled (Route IPX=No) or if SAP Home Server Proxy is disabled (SAP HS Proxy=No).

Location: Ethernet > Connections > Any Connection Profile > IPX Options

SAP Reply

Description: Enables or disables a home agent's ability to reply to the mobile node's IPX Nearest Server Query if the home agent knows about a server on the home network. It is used only when accessing this unit as a home agent.

Usage: Specify Yes or No. No is the default.

Location: Ethernet > Mod Config > ATMP Options

See Also: ATMP Gateway, ATMP Mode

Sealing Current

Description: Sealing Current allows you to enable sealing on the loop. Sealing refers to the ability of the IDSL card to send some current (40V) on the line when enabled. You typically use this feature to keeps the physical connection from corroding. This could occur if there is no activity on the line such as when there is no device connected on the other end.

Usage: Specify Yes to enable sealing. The default value is Off.

Dependencies: Note that the Sealing Current setting is not saved to the MAX permanent memory. This means that whenever you reboot the MAX, the Sealing Current parameter reverts to its default value of 0.

Location: BRI/LT > Line Diag > line n

Sec DNS

Description: Specifies the IP address of the secondary domain name server. It will be accessed only if the primary DNS server is unavailable.

Usage: Specify the IP address of the secondary domain name server. The default is 0.0.0.0. Accept this default if you do not have a secondary domain name server.

Example: Sec DNS=200.207.23.1

Location: Ethernet > Mod Config > DNS

See Also: Domain Name, Pri DNS

Sec Domain Name

Description: Specifies a secondary domain name that the MAX can search using DNS. The MAX performs DNS lookups in the domain configured in Domain Name first, and then in the domain configured in Sec Domain Name.

Usage: Specify a secondary domain name. You can enter up to 63 characters.

Example: Sec Domain Name=xyz.com

Location: Ethernet > Mod Config > DNS

See Also: Domain Name

Sec History

Description: Specifies a number of seconds to use as the basis for calculating average line utilization (ALU). The ALU is used in calculating when to add or subtract bandwidth from a multi-channel call that supports dynamic bandwidth management.

The number of seconds you choose for the Sec History parameter depends on your device's traffic patterns. For example, if you want to average spikes with normal traffic flow, you may want the MAX to establish a longer historical time period. If, on the other hand, traffic patterns consist of many spikes that are short in duration, you may want to specify a shorter period of time; doing so assigns less weight to the short spikes.

If you specify a small value for the Sec History parameter, and increase the values of the Add Pers parameter and the Sub Pers parameter relative to the value of Sec History, the system becomes less responsive to quick spikes.

The easiest way to determine the proper values for Sec History, Add Pers, and Sub Pers is to observe usage patterns; if the system is not responsive enough, the value of Sec History is too high.

Usage: Specify a number between 1 and 300. The default value for MP+ calls is 15 seconds; the default value for dynamic AIM calls is 30 seconds.

Dependencies: This parameter applies only to multilink calls that support dynamic management.

Location: Ethernet > Answer > PPP Options, Host/Dual (Host/6) > PortN Menu > Directory, Ethernet > Connections > Encaps Options

See Also: Add Pers, Call Mgm, Dec Ch Count, Dyn Alg, Encaps, Inc Ch Count, Sub Pers, Target Util

Sec Num

Description: Specifies the secondary add-on number for the Net BRI line. When the MAX receives a multichannel AIM, BONDING, or MP+ call, it reports the primary add-on number (Pri Num) and the secondary add-on number (Sec Num) to the calling party. The calling MAX can then add more channels. If you do not specify a add-on number and the calling MAX needs to add more channels, it redials the phone number it used to make the first connection. (See Ch N # (N=1-24, 1-32)for more detail on add-on numbers.)

Usage: Specify a phone number with a limit of 24 characters, which can include the following characters: 1234567890()[]!z-*#|. The default is null.

Dependencies: This parameter does not apply when Link Type = P-T-P (point-to-point mode).

Location: Net/BRI > Line Config > Line N

See Also: Pri Num, Sub-Adr

Sec SPID

Description: Specifies the SPID (Service Profile Identifier) associated with the secondary phone number for the Net BRI line. The carrier supplies both the phone number and the associated SPID.

If the MAX uses only one channel of a multipoint ISDN BRI line and another device uses the other channel, you can choose to operate in single-terminal mode. Set one channel to unused, and enter only one SPID. The device sharing the line must enter the other assigned SPID.


Note: The MAX appends the value of the SPID with a TID if you are connected to a Northern Telecom switch running NI-1.

Usage: Specify up to 16 characters; you must limit those characters to numbers, hyphens, and parentheses. The default value is 0 (zero).

Dependencies: This parameter does not apply when the line is serviced by an AT&T switch in point-to-point mode.

Location: Net/BRI > Line Config > Line N

See Also: B1 Usage, B2 Usage, Link Type, Pri Num, Pri SPID, Sec Num, Switch Type

SecurID DES Encryption

Description: Specifies whether the server uses standard DES or the native encryption provided by SecurID.

Usage: Specify Yes or No. No is the default.

Dependencies: This parameter does not apply unless Auth specifies SECURID.

Location: Ethernet > Mod Config > Auth

See Also: Auth, SecurID Host Retries, SecurID NodeSecret

SecurID Host Retries

Description: Specifies the number of times the MAX attempts to contact the SecurID host before timing out.

Usage: Specify an integer. The default value is 3.

Dependencies: This parameter does not apply unless Auth specifies SECURID.

Location: Ethernet > Mod Config > Auth

See Also: Auth, SecurID DES Encryption, SecurID NodeSecret

SecurID NodeSecret

Description: On the first successful authentication attempt, the SecurID host informs the MAX of a secret value, theoretically only known to the MAX, to be used in subsequent interactions between the MAX and the SecurID host. This value appears in the SecurID NodeSecret parameter. The operator must have sufficient permissions in the active Security profile to view the value of this parameter.


Note: After the SecurID server sets the value of this parameter, if you later reset the parameter to null, you must reinitialize the interface to the MAX in the SecurID server by using the Client Edit menu selection in the ACE server's sdadmin utility. Then, the server sends a new NodeSecret at the next successful authentication.

Usage: The initial value must be null (the default). After the first SecurID authentication occurs, the value is set by the server.

Dependencies: This parameter does not apply unless Auth specifies SECURID.

Location: Ethernet > Mod Config > Auth

See Also: Auth, SecurID Host Retries, SecurID NodeSecret

Security

Description: Enables or disables a kind of security, which differs depending on where the parameter appears.

Usage: Specify one of the following values:

For SNMP address security, the default is No.

For SNMP traps, the default is No.

For terminal-server security, the default is None.

Location: Ethernet > Mod Config > TServ Options, Ethernet > Mod Config > SNMP Options, Ethernet > SNMP Traps

See Also: Initial Scrn, Max DS0 Mins, Passwd, RD Mgr1-5, Toggle Scrn, WR Mgr1-5

Sec WINS

Description: Specifies the IP address of the secondary NetBIOS server.

Usage: Specify an IP address. The default is 0.0.0.0.

Example: Sec WINS=10.2.3.4

Location: Ethernet > Mod Config > DNS

See Also: Pri WINS

Send Auth

Description: Specifies the authentication protocol that the MAX uses to send a password to the far-end of a PPP connection.

Usage: Specify one of the following values:

Dependencies: For a nailed connection, you must set Recv Auth and Send Auth to the same value at both ends of the connection. PAP-TOKEN and PAP-TOKEN-CHAP require configuration of a SAFEWORD or ACE entry in the NAS's RADIUS users file with the caller's name. See the MAX Security Supplement for details.

Location: Ethernet > Connections > Encaps Options

See Also: APP Host, APP Port, APP Server, Call Type, Dial Brdcast, Encaps, Recv Auth, Recv PW, Send PW

Send Disc

Description: Specifies the number of seconds the MAX waits from the time a call is presented before it clears the call. The value selected must be less than the T310 timer value used by the switch servicing the MAX.

Usage: Press Enter to open a text field. Then, type the number of seconds the MAX should wait from the time a call is presented to it before it clears the call. The timer is cancelled if the MAX sends a ISDN Alerting message or ISDN Disconnect message or if the network switch sends an ISDN Disconnect message. You can specify a number from 0 to 60. 0 disables this parameter. 0 is the default.

Dependencies: Send Disc does not apply if the MAX does not support ISDN signalling.

Location: Net/T1 > Line Config > Line N

See Also: Timeout Busy

Send PW

Description: Specifies the password that the MAX sends to the far-end while the connection is being authenticated. If this password is not received by the far-end device, authentication fails. If the link uses Combinet bridging and the far-end Answer profile specifies that a password is required (Password Reqd=Yes), you must enter a password using all lowercase letters.

Usage: Specify a password, up to 20 characters. The password is case sensitive. The default is null.

Dependencies: This parameter does not apply if Send Auth is set to None.

Location: Ethernet > Connections > Encaps Options

See Also: Encaps, Password Reqd, Recv Auth, Recv PW, Send Auth

Serial

Description: Specifies an ISDN subaddress associated with the MAX unit's AIM ports. ISDN subaddressing is used for routing inbound calls to the appropriate destination in the MAX unit.

Usage: Specify a number between 0 and 99. The default is 0.

Location: System > Sys Config

See Also: Ans N#

Server

Description: Enables or disables the on-board RADIUS server, or specifies the IP address of a BOOTP server, depending on where the parameter appears.

In the RADIUS Server submenu of the Ethernet profile, it enables or disables the on-board RADIUS server, which enables the MAX to appear as a server to some client requests.

In the BOOTP Relay submenu of the Ethernet profile, it specifies the IP address of a BOOTP server for handling BOOTP requests. If a server is on the same local-area network as the MAX, BOOTP requests from other networks are relayed to the server. If a server is on another network, BOOTP requests from clients on the same local-area network as the MAX are relayed to the remote server. If you specify two BOOTP servers, the MAX that relays the BOOTP request determines when each server is used. The order of the BOOTP servers in the BOOTP Relay menu does not necessarily determine which server is tried first.

Usage: To enable the on-board RADIUS server, specify Yes. The default setting is No.

To enable the MAX to communicate with a BOOTP server, specify the server's IP address. The default is 0.0.0.0.

Location: Ethernet > Mod Config > RADIUS Server, Ethernet > Mod Config > BOOTP Relay

See Also: Client #, Server Key, Server Port BOOTP Relay Enable

Server Key #N (N=1-9)

Description: Specifies up to nine RADIUS server keys, shared with the RADIUS clients. It is used to validate the authenticator field on requests and generate the authenticator on responses. You should specify a key for each client address. For example:

Usage: Specify a string containing the shared secret. You can enter up to 20 characters. For security purposes, the string is hidden when the parameter is displayed. The default is null.

Dependencies: This parameter does not apply if the on-board RADIUS server is disabled.

Location: Ethernet > Mod Config > RADIUS Server

See Also: Client #N, Server, Server Port, MAX RADIUS Configuration Guide

Server Name

Description: Specifies the name of a NetWare server. In an IPX Route profile, it is the server that will be reached via the specified route.

In an IPX SAP Filters profile, it is the name of a local or remote NetWare server. If the server is on the local network and this is an Output filter, Server Name specifies whether to include or exclude advertisements for this server in SAP response packets. If the server is on the remote IPX network and this is an Input filter, the Server Name parameter specifies whether to include or exclude this server in the MAX service table.

Usage: Specify a NetWare server name. In an IPX SAP filter, you can use the wildcard characters * and ? for partial name matches.

Dependencies: These parameters do not apply if IPX routing is not in use.

Location: Ethernet > IPX Routes, Ethernet > IPX SAP Filters > Input SAP Filters > In filter N, Ethernet > IPX SAP Filters > Output SAP Filters > Out filter N

See Also: Route IPX, Server Type

Server Port

Description: This parameter indicates the UDP port number to use for the on-board RADIUS server.

Usage: Specify a number between 1 and 65535. The default is 1700. Although the value can match the port setting for RADIUS authentication or accounting, we recommend that you specify a different port.

Dependencies: This parameter does not apply if the on-board RADIUS server is disabled.

Location: Ethernet > Mod Config > RADIUS Server

See Also: Client #, Server, Server Key

Server Type

Description: Specifies an SAP service type. SAP advertises services by a type number. For example, NetWare file servers are SAP Service type 0004. For complete information on SAP service types, refer to your Novell NetWare documentation.

In an IPX Route profile, specifies the type of service advertised by the server that will be reached via the specified route.

In an IPX SAP Filters profile, the Server Type parameter specifies whether to include or exclude advertisements for the specified service type in SAP response packets. In an Input filter, it specifies whether to include or exclude remote services of this type in the MAX service table.

Usage: Specify a a hexadecimal number that represents a valid SAP service type.

Location: Ethernet > IPX RoutesEthernet > IPX SAP Filters > Input SAP Filters > In filter N, Ethernet > IPX SAP Filters > Output SAP Filters > Out filter N,

See Also: Server Name, Type, Valid

Sess Timer

Description: When set for RADIUS accounting, this parameter sets the amount of time the MAX waits for a response to a RADIUS accounting request. You can set this parameter globally and for each connection. If it does not receive a response within that time, the MAX sends the accounting request to the next server's address (for example, server #2). If all RADIUS accounting servers are busy, the MAX stores the accounting request and tries again at a later time. It can queue up to 154 requests.

When set for RADIUS/LOGOUT authentication, Sess Timer specifies the interval at which session reports will be sent to the RADIUS/LOGOUT authentication server. For example, if you wish the MAX to send Session Events at one-minute (60-second) intervals, set Auth to RADIUS/LOGOUT and Sess Timer to 60.

Usage: When setting the timer for RADIUS accounting, specify a number from 1 to 10. The default value in the Ethernet profile is 0. The default in a Connection profile is 1.

When setting the timer for RADIUS/LOGOUT authentication, specify a number between 0 and 655353. The default is 0, which means that no Session Events will be sent.

Example: Sess Timer=10

Dependencies: For accounting, this parameter applies only to RADIUS-because TACACS+ uses TCP, it has its own timeout method. For authentication, it applies only to RADIUS/ LOGOUT.

Location: Ethernet > Mod Config > Accounting, Ethernet > Mod Config > Auth

See Also: Acct, Auth

Session Key

Description: Specifies whether or not all new session entries are assigned a session key in RADIUS.

Usage: Specify Yes or No. No is the default.

Example: Session Key=Yes

Dependencies: This parameter is not applicable if Server is set to No. See the Attributes parameter for information about specifying which attributes will be required for identification of a session.

Location: Ethernet > Mod Config > RADIUS Server

See Also: Attributes

Shared Prof

Description: The MAX can force terminal server users to connect using unique profiles.The Shared Prof parameter in the Ethernet > Mod Config profile or in a Connection profile specifies:

This parameter enables multiple incoming calls to share a local Connection profile or a RADIUS users file with Connection profile parameters. Sharing a profile cannot result in two IP addresses sharing the same interface, so this parameter is typically used to share profiles when the caller is assigned an IP address dynamically, which ensures that each caller is assigned a unique address.

Usage: Specify Yes or No. No is the default.


Note: If Shared Prof is set to No and a user attempts to log in to the MAX terminal server with the same username and password as an already active session, the following message is displayed and the MAX disconnects the user: ***Account Already In Use

Dependencies: This parameter does not apply to Combinet links or connections that have hard-coded IP addresses. For the Ascend-Shared-Profile-Enable attribute to apply, you must disable shared profiles for the MAX as a whole with Ethernet > Mod Config > Shared Prof = No.

Location: Ethernet > Mod Config, Ethernet > Connections > any profile

See Also: Encaps, Name, Pool # Count, Pool # Start, Recv PW

Sig Mode

Description: Specifies the type of signaling used on the T1 or E1 line.

Usage: In a Net/T1 profile, specify one of the following values:

Specify one of the following values on an E1 line:

Location: Net/T1 > Line Config > Line N, Net/E1 > Line Config > Line N

See Also: PBX Type, Rob Ctl, Switch Type

Silent

Description: Suppresses status messages when interactive users establish a terminal-server connection.

Usage: Specify Yes or No. No is the default.

Example: Silent=Yes

Dependencies: This parameter is not applicable when terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

Single Answer

Description: Specifies whether the MAX completes the answering and routing of one call before answering and routing the next call.

Usage: Specify Yes or No. Yes is the default.

Example: Single Answer=Yes

Location: System > Sys Config

See Also: Ans #, B1 Prt/Grp, B2 Prt/Grp, Ch N Prt/Grp

SLIP

Description: Specifies whether an SLIP (Serial Line IP) session can be invoked from the terminal-server command line.

Usage: Specify Yes or No. No is the default.

Dependencies: This parameter does not apply if terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

See Also: TS Enabled

SLIP BOOTP

Description: Specifies whether or not the MAX responds to BOOTP within SLIP sessions. If a unit dials into the MAX unit's terminal server and runs SLIP, it can get an IP address through a BOOTP request. This IP address is taken from the MAX unit's IP address pool or by the Ascend-IP-Pool-Definition attribute in the RADIUS database.

Usage: Specify Yes or No. No is the default.

Dependencies: This parameter does not apply if terminal services are disabled or if SLIP is set to No.

Location: Ethernet > Mod Config > TServ Options

See Also: Pool # Count, Pool # Start, TS Enabled

SLIP Info

Description: Specifies the type of information the MAX reports to SLIP users.

Usage: Specify one of the following values:

Example: The MAX now reports the following information whenever a user connects:

The Netmask label identifies the subnet mask the MAX is using. The Gateway label identifies the MAX unit's IP address.

Location: Ethernet > Mod Config > TServ Options

See Also: IP Gateway Addr Msg, IP Netmask Msg

SNTP Enabled

Description: Enables or disables the MAX to use SNTP (Simple Network Time Protocol- RFC 1305) to set and maintain its system time by communicating with an SNTP server. SNTP must be enabled for the MAX to communicate using that protocol.

Usage: Specify Yes or No. No is the default.

Dependencies: If enable SNTP, you must specify at least one SNTP server address.

Location: Ethernet > Mod Config > SNTP Server

See Also: SNTP Host #N, Time Zone

SNTP Host #N (N=1-3)

Description: Specifies the IP address of up to three SNTP servers. If the server specified by SNTP Host #1 is not active, the MAX sends its requests to SNTP Host #2. If that server is not active, the MAX sends its requests to SNTP Host #3.

Usage: Specify an IP address. The default is 0.0.0.0.

Dependencies: This parameter does not apply if SNTP is not enabled.

Location: Ethernet > Mod Config > SNTP Server

See Also: SNTP Enabled, Time Zone

Socket

Description: Specifies a well-known socket number.

Usage: Specify the socket number for the server.

Example: Socket=0000

Dependencies: This parameter does not apply if the MAX does not route IPX.

Location: Ethernet > IPX Routes

See Also: Route IPX

Source Addr

Description: Specifies an IP address. If specified, the MAX ignores packets from that source for monitoring purposes. If a Source Mask is also specified, the MAX uses the combined address and mask to ignore packets from the specified source.


Note: Heartbeat monitoring is optional. It is not required for multicast forwarding.

Usage: Specify an IP address.

Example: Source Addr=10.2.3.4

Dependencies: To set up heartbeat monitoring, you must configure several parameters that define what packets will be monitored, how often and for how long to poll for multicast packets, and the threshold for generating an alarm. These parameters do not apply if multicast forwarding is not in use.

Location: Ethernet > Mod Config > Multicast

See Also: HeartBeat Addr, Heartbeat Udp Port, Source Mask, HeartBeat Slot Time, HeartBeat Slot Count, Alarm Threshold

Source Mask

Description: Specifies an IP netmask. If specified, the MAX uses the combined address and mask to ignore packets from the specified source for heartbeat monitoring purposes.


Note: Heartbeat monitoring is optional. It is not required for multicast forwarding.

Usage: Specify a netmask.

Example: Source Mask=255.255.255.248

Dependencies: To set up heartbeat monitoring, you must configure several parameters that define what packets will be monitored, how often and for how long to poll for multicast packets, and the threshold for generating an alarm. These parameters do not apply if multicast forwarding is not in use.

Location: Ethernet > Mod Config > Multicast

See Also: HeartBeat Addr, Heartbeat Udp Port, Source Addr, HeartBeat Slot Time, HeartBeat Slot Count, Alarm Threshold

Src Adrs

Description: Specifies a source IP address. After this value has been modified by applying the specified Src Mask, it is compared to a packet's source address.

Usage: Specify a source IP address the MAX should use for comparison when filtering a packet. The zero address 0.0.0.0 is the default. If you accept the default, the MAX does not use the source address as a filtering criterion.

Example: Src Adrs=10.62.201.56

Dependencies: This parameter applies only to filters of type IP.

Location: Ethernet > Filters > Input filters > In filter N > IP, Ethernet > Filters > Output filters > Out filter N > IP

See Also: Src Mask

Src Mask

Description: Specifies a mask to apply to the Src Adrs before comparing it to the source address in a packet. You can use it to mask out the host portion of an address, for example, or the host and subnet portion.

The MAX applies the mask to the address using a logical AND after the mask and address are both translated into binary format. The mask hides the portion of the address that appears behind each binary 0 (zero) in the mask. A mask of all zeros (the default) masks all bits, so all source addresses are matched. A mask of all ones (255.255.255.255) masks no bits, so the full source address to a single host is matched.

Usage: Specify the mask in dotted decimal format. The zero mask 0.0.0.0 is the default; this setting indicates that the MAX masks all bits. To specify a single source address, set Src Mask=255.255.255.255 and set Src Adrs to the IP address that the MAX uses for comparison.

Example: Src Mask=255.255.255.0

Dependencies: This parameter applies only to filters of type IP.

Location: Ethernet > Filters > Input filters > In filter N > IP, Ethernet > Filters > Output filters > Out filter N > IP

See Also: Src Adrs

Src Port #

Description: Specifies a value to compare with the source port number in a packet. The default setting (zero) indicates that the MAX disregards the source port in this filter. Port 25 is reserved for SMTP; that socket is dedicated to receiving mail messages. Port 20 is reserved for FTP data messages, port 21 for FTP control sessions, and port 23 for telnet.


Note: The Src Port Cmp parameter specifies the type of comparison to be made.

Usage: Specify a number between 0 and 65535.

Example: Src Port #=25

Dependencies: This parameter applies only to filters of type IP.

Location: Ethernet > Filters > Input filters > In filter N > IP, Ethernet > Filters > Output filters > Out filter N > IP

See Also: Dst Port #, Dst Port Cmp, Src Port Cmp

Src Port Cmp

Description: Specifies the type of comparison the MAX makes when filtering for source port numbers using the Src Port # parameter.

Usage: Specify one of the following values:

Location: Ethernet > Filters > Input filters > In filter N > IP, Ethernet > Filters > Output filters > Out filter N > IP

See Also: Src Port #

Stacking Enabled

Description: Enables the MAX to communicate with other members of the same stack. A MAX can belong to only one stack. All members of the stack use the same stack name and UDP port. A MAX can support up to 40 stacked channels. That is, channels that originate on another MAX but are bundled with channels on the current MAX. The total number of channels in a stack is limited by the performance considerations of the network because stacking MAX units causes extra traffic on the Ethernet.

If the local network supports more than one MAX, you can stack them to enable inbound multilink PPP connections to distribute bandwidth across the multiple MAX units. The stacked units must all have access to the same authentication information, typically on a RADIUS server. Every member of a stack must reside on the same physical LAN. A MAX unit can only belong to a single stack, but does not have to belong to any stack. Multiple stacks may exist on the same LAN by simply having different stack names.

Usage: Specify Yes or No. No is the default.

Location: Ethernet > Mod Config > Stack Options

See Also: Stack Name, UDP Port

Stack Name

Description: Specifies a stack name. Add a MAX to an existing stack by specifying that name. The stack name must be unique among all MAX stacks that may communicate with each other. You can create a new stack by specifying an new stack name.

Usage: Specify the name of the Stack to which this MAX belongs. A stack name must 16 characters or less.

Example: Stack Name=Stack-1

Dependencies: This parameter does not apply if stacks are not enabled.

Location: Ethernet > Mod Config > Stack Options

See Also: Stacking Enabled, UDP Port

Static Preference

Description: Specifies the default preference value for statically configured routes.

Usage: Specify a number between 0 and 255. The default value is 100. Zero is the default for connected routes (such as the Ethernet). The value of 255 means Don't use this route.

Example: Static Preference=100

Dependencies: These are the default route preference values:

Location: Ethernet > Mod Config > Route Pref

Station

Description: Specifies the name of the far-end device in this Connection profile. If the connection uses Combinet encapsulation, it is the MAC address of the far-end Combinet bridge.


Note: If this Connection profile specifies a nailed link to the home network for a MAX acting as an ATMP home agent in gateway mode, the Station name must match the Ascend-Home- Network-Name attribute in the foreign agent's RADIUS configuration.

Usage: Specify the name of the far-end device. You can enter up to 31 characters. Make sure you specify the name exactly, including case changes.

For a Combinet link, specify the 12-digit hexadecimal MAC address of the far-end device.

Example: Station=NewYork

Location: Ethernet > Connections

See Also: ATMP Mode, Type

Status N (N=1-8)

Description: Enables you to customize the status windows in the vt100 interface so that particular screens appear at startup. The numbers 1 through 8 indicate the position of the status window, starting with the upper left. You can also use Ctrl-D-M to automatically configure the Status parameter.

Usage: Specify a window number in the format XY-NNN.

Example: Status 1=20-100

Location: System > Sys Config

Sub-Adr

Description: Specifies how the MAX treats incoming calls based on whether they convey an ISDN subaddress.

Usage: Specify one of the following values:

Location: System > Sys Config

See Also: Ans #, DM, LAN, Serial, V.110

Sub Pers

Description: Specifies a number of seconds for which the ALU (average link utilization) must persist below the Target Util threshold before the MAX subtracts bandwidth.

When utilization falls below the threshold for a period of time greater than the value of the Sub Pers parameter, the MAX attempts to remove the number of channels specified by the Dec Ch Count parameter. However, the MAX never subtracts enough bandwidth the clear the call or cause the channel count to fall below the specified minimum. Setting the Add Pers and Sub Pers parameters prevents the system from continually adding and subtracting bandwidth, and can slow down the process of allocating or removing bandwidth.

Add Pers and Sub Pers have little or no effect on a system with a high Sec History value. However, if the value of Sec History is low, the Add Pers and Sub Pers parameters provide an alternative way to ensure that spikes persist for a certain period of time before the system responds.

Usage: Specify a number between 1 and 300. When the MAX is using MP+, the default value is 10. When the MAX is using dynamic AIM, the default value is 20.

Example: Sub Pers=15

Location: Ethernet > Answer > PPP Options, Host/Dual (Host/6) > PortN Menu > Directory, Ethernet > Connections > Encaps Options

See Also: Add Pers, Dec Ch Count, Dyn Alg, Min Ch Count, Sec History, Target Util

Switch Type

Description: Specifies the carrier switch type that services the T1 or BRI line.

Usage: In a Net/T1 profile, specify one of the following values:

In a Net/BRI Line profile, these North American switch types are supported:

In a Net/E1 profile, specify one of the following values:

These international BRI switch types are supported:


Note: All international switch types except German operate in multipoint mode.

Example: Switch Type=AT& T

Location: Net/T1 > Line Config > Line N, Net/BRI > Line Config > Line N

Sys Diag

Description: Enables or disables permission to perform all system diagnostics.

Usage: Specify Yes or No. Yes is the default.

Location: System > Security

See Also: Chapter 4, MAX Diag Command Reference.

Syslog

Description: Specifies whether the MAX sends warning, notice, and CDR (Call Detail Reporting) records from the system logs to the Syslog host.

Usage: Specify Yes or No. No is the default.

Dependencies: If you enable Syslog, you must enter the IP address of the Syslog host in the Log Host parameter.

Location: Ethernet > Mod Config

See Also: Log Facility, Log Host

T

T-Online

Description: This parameter specifies whether the MAX performs T-Online routing.

Usage: You can specify either Yes or No.

Dependencies: If T-Online=Yes, you can not use lines 3 and 4 on the MAX for any purpose other than PRI-PRI switching.

Location: System Profile: System > Sys Config

See Also: T302 Timer

T1-PRI:PRI # Type

Description: T1-PRI:PRI # Type is used for outbound calls made by the MAX on PRI lines so that the switch can properly interpret the phone number dialed. Ask your PRI provider for details on when to use each of the following settings. This parameter specifies the TypeOfNumber field in the called party's information element.


Note: This parameter applies only to calls placed by devices terminating the inband T1 lines provided by the MAX in a T1-PRI conversion configuration.

Usage: Specify one of the following values:

Dependencies: The value you specify for PRI # Type in the Dial Plan profile overrides the value of T1-PRI:PRI # Type in the Line profile if you have enabled the unit's Dial Plan profiles.

Location: Net/T1 > Line Config (Line profile)

See Also: T1-PRI:NumPlanID, NumPlanID (Call and Connection profiles), Modem:NumPlanID (System profile)

T1-PRI:NumPlanID

Description: T1-PRI:NumPlanID is used for outbound calls made by the MAX on PRI lines so that the switch can properly interpret the phone number dialed. Ask your PRI provider for details on when to use each of the following settings. This parameter specifies NumberPlanID field in the called party's information element.


Note: This parameter applies only to calls placed by devices terminating the inband T1 lines provided by the MAX in a T1-PRI conversion configuration.

Usage: Specify one of the following values:

Dependencies: The value you specify for NumPlanID in the Dial Plan profile overrides the value of T1-PRI:NumPlanID in the Line profile if you have enabled the unit's Dial Plan profiles.

Location: Net/T1 > Line Config (Line profile)

See Also: T1-PRI:PRI # Type, NumPlanID (Call and Connection profiles), Modem:NumPlanID (System profile)

T1 Retransmission Timer

Description: Specifies the maximum amount of time in ticks the transmitter should wait for an acknowledgment before initiating a recovery procedure.

Usage: Specify a number between 500 and 2000. The default value is 1000 (1 second).

Location: Ethernet > Answer > X.75 Options

See Also: Frame Length, K Window Size, N2 Retransmission Count, X.75

T302 Timer

Description: This parameter specifies the duration of the ISDN Q.931 layer 3 SETUP_ACK timer.

When the MAX receives the layer 3 SETUP message, the SETUP message consists of many IEs (Information Elements), such as Bearer Capability IE, Channel Identifier IE, Caller Number IE, Called Number IE, Sending Complete IE, and so on. The MAX checks for the Sending Complete IE upon receiving the SETUP message from the switch. If the Sending Complete IE is not in the SETUP message, the MAX starts the T302 timer and waits for an INFO message from switch. If the INFO message consists of Sending Complete IE, MAX stops the T302 timer. If no Sending Complete IE appears, the MAX restarts the T302 timer.

Usage: You can specify a value between 100 and 30000 one-hundredths of a second (1 to 30 seconds). The default value is 1800 (18 seconds).

Dependencies: T302 Timer does not apply if T-Online=No.

Location: System Profile: System>Sys Config

See Also: T-Online

T391

Description: Specifies the number of seconds between Status Enquiry messages.

Usage: Specify a number between 5 and 30. The default is 10.

Dependencies: This parameter applies only if Link Mgmt=T1.617D and T392 is set to a nonzero value.

Location: Ethernet > Frame Relay

See Also: Link Mgmt

T392

Description: Specifies the number of seconds the MAX waits for a Status Enquiry message before recording an error. If you specify zero, the MAX does not process WAN-side Status Enquiry messages. If you specify a nonzero value, the MAX uses T1.617D (a link management protocol defined in ANSI T1.617 Annex D) to monitor another MAX over a nailed-up connection.

Usage: Specify 0 (zero), or a number between 5 and 30. The default is 15.

Dependencies: The T392 parameter applies only if Link Mgmt=T1.617D.

Location: Ethernet > Frame Relay

See Also: Link Mgmt

T3POS T1

Description: Specifies the Char-to-Char timer. This timer indicates the maximum amount of time permitted between characters sent from the DTE to the PAD.

Usage: Specify a value between 1 and 20 (tenths of seconds). The default is 5.

Dependencies: This parameter is always applicable.

Location: Ethernet > Connections > any Connection profile > Encaps options
Ethernet > Answer > T3POS options

T3POS T2

Description: Specifies the SYN-to-SYN timer. This timer applies to opening frames in Local or Bin-Local mode. Normally, the PAD sends SYN signals to the DTE at the interval specified by the T2 timer to indicate that an idle link is still alive. However, if the DTE sends a SYN signal to the PAD before the PAD sends one to the DTE, the T2 timer specifies the period of time the PAD expects SYN signals from the DTE. If the PAD does not receive two SYN signals with the interval specified by the T2 timer, it tries to restore the link.

Usage: Specify a value between 10 and 100 (tenths of seconds). The default is 40.

Dependencies: Keep the following information in mind.

Location: Ethernet > Connections > any Connection profile > Encaps options
Ethernet > Answer > T3POS options

T3POS T3

Description: Specifies the ENQ handling timer. This timer indicates the amount of time the PAD waits for an ENQ from the host.

Usage: Specify a value between 5 and 50 (tenths of seconds). The default is 15.

Dependencies: Keep the following information in mind.

Location: Ethernet > Connections > any Connection profile > Encaps options
Ethernet > Answer > T3POS options

T3POS T4

Description: Specifies the Response Timer. This timer indicates the amount of time the PAD waits for a SYN from the DTE while the PAS is waiting for a response from the DTE. The SYN signal indicates that the response from the DTE is being delayed and also indicates that the link is still alive.

Usage: Specify a value between 10 and 100 (tenths of seconds). The default is 40.

Dependencies: This parameter is always applicable.

Location: Ethernet > Connections > any Connection profile > Encaps options
Ethernet > Answer > T3POS options

T3POS T5

Description: Specifies the DLE, EOT timer. This timer indicates the maximum idle-time the PAD allows for a T3POS call (this is similar to the VC inactivity timer in the X25/PAD). The T5 timer applies only to transparent and blind mode only; it is disabled in both Local mode and Bin-Local mode.

Usage: Specify a value between 50 and 3000 (tenths of seconds). The default is 2400 (four minutes).

Dependencies: Keep this additional information in mind.

Location: Ethernet > Connections > any Connection profile > Encaps options
Ethernet > Answer > T3POS options

T3POS T6

Description: .Specifies the Frame Arrival timeout. This timers indicates the maximum amount of time allowed between the time a dial-up connection is established and the first character of an opening frame is received.

Usage: Specify a value between 50 and 3000 (tenths of seconds). The default is 300 (30 seconds).

Dependencies: This parameter is always applicable.

Location: Ethernet > Connections > any Connection profile > Encaps options
Ethernet > Answer > T3POS options

Target Util

Description: Specifies a percentage of line utilization to use as a threshold for determining when to add or subtract bandwidth. When the value is 70%, the device adds bandwidth when it exceeds a 70 percent utilization rate, and subtracts bandwidth when it falls below that number.

Usage: Specify a number between 0 and 100. The default is 70 (70% utilization).

Example: Target Util=70

Dependencies: In a Call profile, this parameter applies only to dynamic AIM calls. It specifies the target percentage of bandwidth utilization for a dynamic time period.

Location: Ethernet > Answer > PPP Options, Host/Dual (Host/6) > PortN Menu > Directory > Time Period N, Ethernet > Connections > Encaps Options

See Also: Add Pers, Call Mgm, Call Type, Dec Ch Count, Dyn Alg, Inc Ch Count, Sec History, Sub Pers

TCP-Clear

Description: Specifies whether the MAX can answer calls that use a proprietary encapsulation method and rely on raw TCP sessions to a local host for processing that encapsulation.

Usage: Specify Yes or No. Yes is the default.

Location: Ethernet > Answer > Encaps

See Also: Encaps

TCP Estab

Description: In a filter of type IP, specifies whether the filter should match only established TCP connections. You can use it to restrict the filter to packets in an established TCP session. You can only use it if the Protocol number has been set to 6 (TCP); otherwise, it does not apply.

Usage: Specify Yes or No. No is the default.

Dependencies: This parameter does not apply if the Protocol field is set to a value other than 6 (TCP).

Location: Ethernet > Filters > Input filters > In filter N > IP, Ethernet > Filters > Output filters > Out filter N > IP

TCP Modem Enabled

Description: Specifies whether the MAX allows TCP modem access.

Usage: Specify one of the following values:

Location: Ethernet > Mod Config > TCP Modem Options

TCP Modem Port

Description: Specifies the port for TCP modem access.

Usage: Specify a TCP port. The default is 6150.

Location: Ethernet > Mod Config > TCP Modem Options

TCP timeout

Description: Specifies the length of time the MAX attempts to connect to an IP host in the list provided by the DNS server.

Since the first host on the list may not be available, the timeout should be short enough to allow the MAX to go on to the next address on the list before the client software times out.

This feature applies to all TCP connections initiated from the MAX, including telnet, rlogin, tcp-clear, and the TCP portion of DNS queries.

Usage: Enter a value from 0 to 200. The value specifies the number of seconds after which the MAX will stop attempting to connect to an IP address and will proceed to the next address on the list.

When the MAX has sent the maximum number of messages to an address on the DNS list it will stop attempting to make a connection to that address, even if the maximum time set in DNS Timeout has not yet elapsed.

The default for DNS Timeout is 0. If you set TCP timeout to 0, the MAX retries connecting to the address at increasingly larger intervals until it sends the maximum number of start-connection messages. This takes approximately 170 seconds, but can take longer if the MAX is running large number of other tasks. If the client software times out before the MAX makes a connection or proceeds to the next address on the DNS list, the physical connection is dropped.

Dependencies: The List Attempt parameter in the DNS submenu of the Mod Config menu in the Ethernet Profile must be enabled. This permits the MAX to attempt the IP addresses. On a list, if the DNS server provides such a list. The List Attempt parameter does not apply if Telnet and Immediate Telnet are both disabled.

Location: Ethernet > Mod Config

TEI

Description: Specifies the Terminal Endpoint Identifier (TEI). Your service provider should provide you with the appropriate value.

Usage: Specify a TEI value from 0 to 63. The default value is 23. If you set TEI to 0, the Ascend unit requests a TEI assignment from the network.

Location: Ethernet > X.25 > any X.25 profile

Telnet

Description: Enables or disables the Telnet command from the terminal server interface.

Usage: Specify Yes or No. No is the default.

Example: Telnet=Yes

Dependencies: This parameter is not applicable when terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

See Also: TS Enabled

Telnet Host Auth

Description: Specifies whether immediate Telnet sessions require local authentication in the terminal server or if authentication is the responsibility of the telnet host.

Usage: Specify Yes or No. No is the default.

Example: Telnet Host Auth=Yes

Dependencies: This parameter is not applicable when terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

See Also: Immed Service

Telnet Mode

Description: Specifies the default Telnet mode for terminal-server Telnet users.

Usage: Specify one of the following values:

Example: Telnet mode=ASCII

Dependencies: This parameter is not applicable when terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

See Also: TS Enabled

Telnet PW

Description: Specifies the password users must enter to access the MAX unit via telnet. If you specify a password, users are allowed three tries of 60 seconds each to enter the correct password.

Usage: Specify a password containing up to 20 characters. The default is null. If you leave this parameter blank, the MAX does not prompt users for a password.

Example: Telnet PW=Ascend

Location: Ethernet > Mod Config

Template Connection #

Description: Specifies a Connection profile to use a template Connection profile rather than the Answer profile settings to build the session for this Name-password profile, specify the unique portion of the profile's number here. The default zero instructs the MAX to use the Answer profile settings. Note that the specified Connection profile must be active.

Template connections may be used to enable or disable group logins. For example, you can specify a Connection profile for the Sales group to use when dialing in, then configure a Name-password profile for each individual salesperson. You can prevent a single salesperson from dialing in by setting Active to No in the Name-password profile, or you can prevent the entire group from logging in by setting Active to No in the Connection profile.

Usage: Specify the unique part of the Connection profile's number in the Connections menu.

Example: Template Connection #=99

Dependencies: The specified Connection profile must be active.

Location: Ethernet > Names / Passwords

Term Rate

Description: Specifies the bit rate of a MAX serial port. When you modify the bit rate of a serial port, you may also need to change the data rate setting of the terminal accessing that port.

Usage: Specify one of the following values:

Example: Term Rate=9600

Location: System > Sys Config

Term Timing

Description: Specifies whether the MAX uses the Terminal Timing signal from the codec to clock data it receives from the codec. Terminal Timing is a clock signal specified in the V.35, X.21, and RS-449 serial interfaces that compensates for the phase difference between Send Data and Send Timing.

For the MAX to use the Terminal Timing signal from the codec, the AIM port module must support Terminal Timing and the codec must use Terminal Timing if the distance between the MAX and the host is greater than the distances described next.

Usage: Specify Yes or No. No is the default.

Example: Term Timing=No

Location: Host/Dual (Host/6) > PortN Menu > Port Config

Term Type

Description: Specifies the default terminal type for Telnet and Rlogin sessions.

Usage: Specify the a terminal type. You can enter up to 15 characters. The default is vt100.

Example: Term Type=vt100

Dependencies: This parameter is not applicable when terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

See Also: TS Enabled

Third-Party

Description: This enables OSPF third-party routing for a static route. When enabled, the gateway address is used as the third-party router for this route. Third-party routing enables an OSPF router to advertise a route to a destination network through a remote router (Router-A advertises a route to Network-B via Router-C). This is accomplished by specifying the address of the remote router (Router-C) in the next-hop field of an LSA.


Note: In some cases, third-party routing results in more efficient routes, because other OSPF routers (such as Router-D and Router-E) might be able to trim one hop off of the packet's path and send it to the specified address (Router-C) directly. In practice, it requires that the third- party router is on an Ethernet that is running OSPF, and that its designated router is advertising that network into the OSPF cloud.

Usage: Specify Yes or No. No is the default.

Example: Third-Party=Yes

Dependencies: Third-Party does not apply to NSSAs.

Location: Ethernet > Static Rtes

See Also: Gateway

Tick Count

Description: Specifies the distance to the destination network in IBM PC clock ticks (18 Hz). This value is for round-trip timer calculation and for determining the nearest server of a given type.

Usage: Specify an appropriate value. In most cases, the default value (12) is appropriate.

Dependencies: This parameter is not applicable if the MAX does not route IPX >

Location: Ethernet > IPX Routes

See Also: Route IPX

Time

Description: Specifies the time of day.

Usage: Specify the time of day in the format <hour > :<minutes > :<seconds > . The default is 00:00:00.

Example: Time=13:24:24

Location: System > Sys Config

Timeout Busy (previously CLID Timeout Busy)

Description: Specifies whether to return User Busy or Normal Call Clearing as a Cause in IDSN DISCONNECT messages when ID authentication fails due to a RADIUS timeout.

Usage: Press Enter to toggle between Yes and No. No is the default. If you choose Yes, and the ID authentication fails due to a RADIUS timeout, the DISCONNECT message will have the Cause value User Busy (decimal value 17). If you choose No, the Cause value will be Normal Call Clearing (decimal value 16).

Dependencies: This parameter will be N/A if Auth=None or Auth=TACACS+ in the this profile. The value set in this parameter applies to both Caller ID and Called ID authentication.

This parameter is N/A if ID Auth=Ignore.

Location: Ethernet Profile: Ethernet > Mod Config > Auth

See Also: IDFail Busy,

Time Period N (N=1-4)

Description: This subprofile contains up to four dynamic time periods, each of which may be configured with different bandwidth management settings.

Dependencies: The Time Period subprofile apply only to dynamic AIM calls.

Location: Host/Dual (Host/6) > PortN Menu > Directory

See Also: Activ, Call Mgm, Max Ch Count, Min Ch Count, Target Util

Time zone

Description: Specifies your time zone as an offset from the UTC (Universal Time Configuration) to enable the MAX to update its system time from an SNTP server. UTC is in the same time zone as Greenwich Mean Time (GMT), and the offset is specified in hours using a 24-hour clock. Because some time zones, such as Newfoundland, cannot use an even hour boundary, the offset includes four digits and is stated in half-hour increments. For example, in Newfoundland the time is 1.5 hours ahead of UTC, which is represented as follows:

For San Francisco, which is 8 hours ahead of UTC:

For Frankfurt, which is 1 hour behind UTC:

Usage: Specify one of the following values to represent your time zone:

Example: Time zone=UTC -0700

Dependencies: This parameter is not applicable unless SNTP Enabled is Yes.

Location: Ethernet > Mod Config > SNTP Server

See Also: SNTP Enabled, SNTP Host #

Toggle Scrn

Description: Specifies whether an interactive user is allowed to switch between menu mode and the terminal server command line. Users switch to menu mode by using the terminal server Menu command, and switch from menu mode to the command line by pressing the zero key. If this parameter is set to No, the menu command and 0 command are disabled.

Usage: Specify Yes or No. Yes is the default.

Example: Toggle Scrn=No

Dependencies: This parameter is not applicable when terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

See Also: Initial Scrn

Transit #

Description: Specifies a string for use in the transit network IE for PRI calling when going through an Interexchange Carrier (IEC). The default (null) causes the MAX to use any available IEC for long-distance calls.

Usage: Specify one of the following dialing prefixes:

Example: Transit #=222

Dependencies: The Transit # value in the Dial Plan profile overrides the Transit # value in the Call profile or the Connection profile. This parameter does not apply to nailed connections.

Location: Host/Dual (Host/6) > PortN Menu > Directory, Ethernet > Connections > Telco Options, Ethernet > Frame Relay, System > Dial Plan, Ethernet > X.25

See Also: B1 Trnk Grp, B2 Trnk Grp, Ch N Trnk Grp

TransitDelay

Description: Specifies the estimated number of seconds it takes to transmit a Link State Update (LSU) Packet over this interface. Before transmission, LSAs (link state advertisements) contained in the LSU packet have their ages incremented by the amount you specify.

Usage: Specify a number greater than 0 (zero). This value should take into account transmission and propagation delays. The default is 1.

Example: TransitDelay=1

Location: Ethernet > Connections > OSPF Options, Ethernet > Mod Config > OSPF Options

TS Enabled

Description: This enables or disables terminal services.

Usage: Specify Yes or No. No is the default.

Example: TS Enabled=Yes

Location: Ethernet > Mod Config > TServ Options

TS Idle

Description: Specifies the number of seconds that a terminal server connection must be idle before the MAX disconnects the session.

Usage: Specify a value between 0 and 65535. The default is 120. A setting of 0 (zero) means that the line can be idle indefinitely.

Example: TS Idle=60

Dependencies: This parameter applies only to terminal server sessions.

Location: Ethernet > Answer > Session Options, Ethernet > Connections > Session Options

See Also: Encaps, TS Idle Mode

TS Idle Mode

Description: Specifies whether the MAX uses the terminal server idle timer and, if so, whether both the user and host must be idle before the MAX disconnects the session.

Usage: Specify one of the following values:

Example: TS Idle Mode=Input/Output

Dependencies: This parameter applies only to terminal server sessions.

Location: Ethernet > Answer > Session Options, Ethernet > Connections > Session Options

See Also: Encaps, TS Idle

Type

Description: Specifies the type of ATMP functionality supported in the MAX, or if it appears in a filter, the action performed by the filter.

Usage: Specify one of the following values:

In an Ethernet profile:

In a Filter profile:

In an IPX SAP Filter profile:

Location: Ethernet > Mod Config > ATMP Options, Ethernet > Filters > Input filters > In filter N, Ethernet > Filters > Output filters > Out filter N, Ethernet > IPX SAP Filters > Input SAP Filters > In filter N, Ethernet > IPX SAP Filters > Output SAP Filters > Out filter N

See Also: ATMP Gateway, ATMP Mode, Password, Server Name, Server Type, Station, UDP Port, Valid

U

UDP Cksum

Description: This enables or disables the use of UDP checksums on this interface. If enabled, the MAX generates a checksum whenever it sends out a UDP packet. It sends out UDP packets for queries and responses related to the following protocols:


Note: You may want to enable this parameter if data integrity is of the highest concern for your environment, and having redundant checks is important; this setting is also appropriate if your UDP-based servers are located on the remote side of a WAN link that is prone to errors.

Usage: Specify Yes or No. No is the default.

Example: UDP Cksum=Yes

Location: Ethernet > Mod Config

UDP Port

Description: Specifies a UDP port number assigned to a particular function. Depending on where it is located, it may specify the UDP port on which the MAX listens when using ATMP, or the UDP port the MAX uses to communicate with members of a stack.


Note: Units that use UDP to communicate for a particular purpose must all agree on the assigned port number. For ATMP, both agents must specify the same UDP port number. For MAX stacks, all members of a stack must specify the same UDP port number.

Usage: Specify a valid UDP port number (0-65535). For ATMP, the default port number is 5150. For MAX stacks, the default is 5151.

Example: UDP Port=5150

Dependencies: This parameter must match the UDP port configured in other units that communicate with the MAX for the specified function.

Location: Ethernet > Mod Config > ATMP Options, Ethernet > Mod Config > Stack Options

See Also: ATMP Gateway, ATMP Mode, Password, Type, Stack Enabled, Stack Name

Upload

Description: Enables or disables permission to upload the MAX configuration from another device.

Usage: Specify Yes or No. Yes is the default.

Example: Upload=Yes

Dependencies: This parameter is not applicable if the Operations permission is disabled.

Location: System > Security

See Also: Restore Cfg

Use Answer as Default

Description: Indicates whether the Answer profile should override the factory default Internet profile when the MAX validates an incoming call using RADIUS or TACACS.

Usage: Specify Yes or No. No is the default.

Example: Use Answer as Default=Yes

Location: Ethernet > Answer

Use Trunk Grps

Description: Specifies the use of trunk groups for all network lines. When trunk groups are in use, channels must be assigned trunk group numbers to be available for outbound calls.

Usage: Specify Yes or No. No is the default.

Example: Use Trunk Grps=Yes

Dependencies: When this parameter is set to Yes, channel configurations must specify trunk- group assignments.

Location: System > Sys Config

See Also: B1 Trnk Grp, B2 Trnk Grp, Call Type, Ch N Trnk Grp, Dial #, Dial Plan

V

V.110

Description: Specifies the subaddress associated with the MAX unit's V.110 modems. The MAX routes an incoming call whose subaddress matches the value of V.110 to the first available V.110 modem; the MAX handles such a call as a terminal server call.

Usage: Specify a subaddress. You can specify a number between 0 and 99. The default is 0.

Dependencies: This parameter is ignored if the Sub-Adr parameter is not set to Routing.

Location: System > Sys Config

See Also: DM, LAN, Serial, Sub-Adr

V.120

Description: Specifies whether or not the MAX accepts incoming calls using V.120 encapsulation, provided they meet all other criteria.

Usage: Specify Yes or No. Yes is the default.

Example: V.120=Yes

Location: Ethernet > Answer > Encaps

V42/MNP

Description: The digital modems negotiate LAPM/MNP error control with the analog modem at the other end of the connection according to how this parameter is set. The MAX can request LAPM/MNP and accept the call anyway if it is not provided, request it and drop the call if it is not provided, or not use LAPM/MNP error control at all.

Usage: Specify one of the following values:

Example: V42/MNP=Will

Dependencies: This parameter is not applicable when terminal services are disabled.

Location: Ethernet > Mod Config > TServ Options

Valid

Description: Enables or disables the current input or output filter. When it is set to No, that input or output filter is skipped when filtering the data stream. You must set this parameter to Yes to configure the filter specification.

Usage: Specify Yes or No. No is the default.

Location: Ethernet > Filters > Input filters > In filter N, Ethernet > Filters > Output filters > Out filter N, Ethernet > IPX SAP Filters > Input SAP Filters > In filter N, Ethernet > IPX SAP Filters > Output SAP Filters > Out filter N

See Also: Server Name, Server Type, Type

Value

Description: Specifies a hexadecimal number to be compared to specific bits contained in packets after the Offset, Length, and Mask calculations have been performed. The MAX compares only the unmasked portion of a packet to the Value parameter. The length of the Value parameter must contain the number of bytes specified by the Length parameter.

Usage: Specify a hexadecimal number up to 12 bytes.

Example: Value=e0e0030000000000

Location: Ethernet > Filters > Input filters > In filter N > Generic, Ethernet > Filters > Output filters > Out filter N > Generic

See Also: Length, Mask, Offset

VC Timer enable

Description: This enables or disables the Virtual Call Establishment (VCE) timer on a per- user basis. The VCE timer specifies the number of seconds to maintain a connection to a character-oriented device (such as the terminal server) that has not established a virtual call.

Usage: Specify Enable (to activate the VC timer for this connection) or Disable. Disable is the default.

Dependencies: This parameter applies only to X.25/PAD connections. If the X.25 profile disables the VC timer, this parameter has no effect.

Location: Ethernet > Connections > Encaps Options

See Also: Max Unsucc.Calls, VC Timer Val

VCE Timer Val

Description: This sets the Virtual Call Establishment (VCE) timer by specifying the number of seconds to maintain a connection to a character-oriented device (such as a terminal server) that has not established a virtual call. This timer value is link-wide. Each X.25 PAD connection has a parameter to enable or disable this timer on a per-connection basis.

Usage: Specify a number of seconds between 0 and 9999. A value of 0 disables this timer system-wide regardless of the value of the VC timer enable flag per connection. The default is 300 seconds.

Location: Ethernet > X.25

See Also: VC Timer

Version

Description: Specifies the version number of a Secure Access Firewall. Each firewall contains a version number to ensure that any firewall that is uploaded to the router will be compatible with the firewall software on the MAX. Secure Access Manager (SAM) checks the version number before uploading a firewall. In the event that an MAX with a stored firewall profile receives a code update that makes the existing firewall incompatible, a default firewall is enabled, permitting only Telnet access to the MAX.

Usage: This parameter cannot be edited.

Location: Ethernet > Firewalls

VJ Comp

Description: Specifies whether Van Jacobson IP header compression should be negotiated on incoming calls using encapsulation protocols that support this feature. VJ Comp applies only to packets in TCP applications, such as Telnet. Turning on header compression is most effective in reducing overhead when the data portion of the packet is small.

Usage: Specify Yes or No.

Location: Ethernet > Answer > PPP Options, Ethernet > Connections > Encaps Options

VPN Mode

Description: Specifies whether or not the MultiVoice Access Manager (specified by the IP address in the GK IP Adrs parameter) requires callers to authenticate by means of a PIN number.

Usage: Specify Yes or No.

Dependencies: VPN Mode applies only if the MAX acts as a MultiVoice Gateway.

Location: Ethernet > Mod Config > VOIP Options

See Also: GK IP Adrs, Pkt Audio Mode

W

WAN Alias

Description: Specifies the IP address of the link's remote interface to the WAN. It is used to identify a numbered interface at the remote end of the link. If an address is specified for WAN alias, the following events occur:

If you want to create static routes to hosts at the remote end, you can use the WAN Alias address as the "next hop" (gateway) field. (The Lan Adrs address will also work, as would be used for system-based routing.)

Usage: Specify the IP address of the remote interface. The default is 0.0.0.0/0.

Example: WAN Alias=10.207.23.7/24

Dependencies: This parameter does not apply if the connection does not route IP.

Location: Ethernet > Connections > IP Options

See Also: Route IP, IF Adrs

WR MgrN (N=1-5)

Description: Specify up to five IP addresses of SNMP managers that have SNMP write permission. The MAX responds to SNMP SET, GET, and GET-NEXT commands from these SNMP managers only, provided that the Security parameter is set to Yes.

Usage: Specify the IP address of a host running an SNMP manager. The default setting is 0.0.0.0; this setting indicates no host.

Example: WR Mgr1= 10.5.6.7/29

Dependencies: The Security parameter must be set to Yes for these parameters to restrict read-write access to the MAX.

Location: Ethernet > Mod Config > SNMP Options

See Also: Security, RD Mgr1-5

X

X.121 src addr

Description: Specifies the X.121 source address is the MAX unit's source address for logical links using this X.25 profile. An X.121 address contains between 1 and 15 decimal digits, such as 031344159782738.

Usage: Specify an X.121 address.

Example: X.121 src addr=031344159782738

Location: Ethernet > X.25

X.25 Clear/Diag

Description: Specifies whether Clear-Request packets include the diagnostic field.

The DTE sends a Clear-Request packet to initiate clearing procedures for a call. The DCE accomplishes the same task by using a Clear-Indication packet. The DTE can send a Clear-Request packet to refuse an incoming call, or to clear a call once the data exchange is complete. Once the DTE or DCE receives a Clear-Confirmation packet, the call is cleared and the logical channel is available for other calls.

A Clear-Request packet has a required Cause field and an optional Diagnostic field. If the Cause field indicates that the remote DTE did not request the reset, the diagnostic field has standard values. If the Cause field indicates that the remote DTE requested the reset, the diagnostic field contains information specified in the Cause field by the remote DTE.

Usage: Specify Yes or No. No is the default.

Location: Ethernet > X.25

See Also: X.25 Reset/Diag, X.25 Restart/Diag

X.25 highest PVC

Description: Specifies the highest Permanent Virtual Connection (PVC) number in a range defined by the X.25 lowest and X.25 highest PVC parameters. The range of PVCs can be between 1 and 4096. If the lowest PVC number is zero, no PVCs are supported.

Usage: Specify the high number in the range of PVCs available for this X.25 profile. The default is zero. The number you specify must be greater than or equal to the value specified by the X.25 lowest PVC parameter.

Example: X.25 highest PVC=128

Dependencies: If X.25 lowest PVC is zero, no PVCs are supported regardless of this setting.

Location: Ethernet > X.25

See Also: X.25 lowest PVC

X.25 highest SVC

Description: Specifies the highest Switched Virtual Connection (SVC) number in a range defined by the X.25 lowest and X.25 highest SVC parameters. The range of SVCs can be between 1 and 4096. If the lowest SVC number is zero, no SVCs are supported.

Usage: Specify a number between 0 and 4095. The default is 8. The number you specify must be greater than or equal to the value specified by the X.25 Lowest SVC parameter.

Example: X.25 highest SVC=8

Dependencies: If X.25 lowest SVC is zero, no SVCs are supported regardless of this setting.

Location: Ethernet > X.25

See Also: X.25 lowest SVC

X.25 Link Setup Mode

Description: Specifies whether the X.25 link comes up in active or passive disconnect mode. In ACTIVE disconnect mode (the default) the link layer comes up sending a DISC, and the packet layer sends a Restart-Request packet at initialization. In PASSIVE disconnect mode the link layer comes up sending SABM(E), and issues a restart to the network only upon receipt of a request restart token. It will not issue a Restart-Request packet upon initialization, but responds to restart packets it receives.

Usage: Specify one of the following values:

Example: X.25 Link Setup Mode=ACTIVE

Location: Ethernet > X.25

X.25 lowest PVC

Description: Specifies the lowest Permanent Virtual Connection (PVC) number in a range defined by the X.25 lowest and X.25 highest PVC parameters. The range of PVCs can be between 1 and 4096. If the lowest PVC number is zero, no PVCs are supported.

Usage: Specify a number between 0 and 4095. The default is 0 (zero), which means that no PVCs are available.

Example: X.25 lowest PVC=1

Dependencies: The upper limit of the range is defined by the X.25 highest PVC parameter.

Location: Ethernet > X.25

See Also: X.25 highest PVC

X.25 lowest SVC

Description: Specifies the lowest Switched Virtual Connection (SVC) number in a range defined by the X.25 lowest and X.25 highest SVC parameters. The range of SVCs can be between 1 and 4096. If the lowest SVC number is zero, no SVCs are supported.

Usage: Specify a number between 0 and 4095. The default is 0 (zero), which means that no SVCs are available.

Example: X.25 lowest SVC=1

Dependencies: The upper limit of the range is defined by the X.25 highest SVC parameter.

Location: Ethernet > X.25

See Also: X.25 highest SVC

X.25 Max pkt size

Description: Specifies the maximum number of bytes in the data field of a data packet when negotiating the packet size with a remote X.25 switch. Note that a large packet size improves throughput by reducing the overhead associated with header transmission. However, a large packet size also increases the probability of transmission errors, causes increased transmission delays on the network, and is associated with processing delays at the host.

Usage: Specify one of the following values:

Location: Ethernet > X.25

See Also: X.25 pkt size, X.25 Min pkt size, X.25 window size

X.25 Min pkt size

Description: Specifies the minimum number of bytes in the data field of a data packet when negotiating the packet size with a remote X.25 switch.

Usage: Specify one of the following values:

Location: Ethernet > X.25

See Also: X.25 pkt size, X.25 Max pkt size, X.25 window size

X.25 Network Type

Description: Specifies the type of network used by the link. At present, only the CCITT network type is supported.

Usage: CCITT specifies that the link uses a CCITT network. This is the only network type currently supported.

Example: X.25 Network Type=CCITT

Location: Ethernet > X.25

X.25 Node Type

Description: Specifies whether the MAX interacts with the remote end of the connection as a DTE (the default) or DCE. A DTE is a device that an operator uses, such as a computer or a terminal. A DCE is a device that connects the DTE to a communications channel.

Usage: Specify one of the following values:

Example: X.25 Node Type=DTE

Dependencies: For proper X.25 operation, the two ends of a link must be of opposite types.

Location: Ethernet > X.25

X.25 options

Description: Specifies X.25 packet-level options.

Usage: Specify one of the following values:

Example: X.25 options=None

Location: Ethernet > X.25

See Also: X.25 pkt size, X.25 Max pkt size, X.25 Min pkt size, X.25 window size

X.25 pkt size

Description: Specifies the default number of bytes in the data field of a data packet.

Usage: Specify one of the following values:

Location: Ethernet > X.25

See Also: X.25 Max pkt size, X.25 Min pkt size, X.25 window size

X.25 Prof

Description: Specifies the name of an X.25 profile to use for this connection. To guard against misconfiguration, the MAX does not allow you to save an active Connection profile specifying X.25 encapsulation unless the named X.25 profile is defined and active.

Usage: Specify the name of an X.25 profile, which can contain up to 15 characters.

Dependencies: This parameter applies only to X.25/PAD and X.25/IP connections.

Location: Ethernet > Connections > Encaps Options

X.25 R20

Description: Determines the limit for Restart Retries-that is, the number of times the MAX transmits a Restart-Request packet before waiting indefinitely for a response. At the packet layer, a Restart-Request packet clears all virtual circuits. When the sending device receives a Restart-Confirmation packet, it can again issue a call to establish a virtual circuit.

Usage: Specify a number between 0 and 255. The default is 0 (zero). This default indicates that the MAX always waits indefinitely for a response.

Dependencies: The value you specify is not meaningful if X.25 T20=0.

Location: Ethernet > X.25

See Also: X.25 R22, X.25 R23, X.25 T20

X.25 R22

Description: Determines the limit for Reset Retries-that is, the number of times the MAX retransmits a Reset-Request packet before clearing a call. At the packet layer, a Reset-Request packet resets the packet sequence number for the logical channel to 0 (zero), and removes any outstanding data and Interrupt packets from the virtual circuit. Once the sending device receives a Reset-Confirmation packet, it can send data on the logical channel.

Usage: Specify a number between 0 and 255. The default is 0 (zero).

Dependencies: The value you specify is not meaningful if X.25 T22=0.

Location: Ethernet > X.25

See Also: X.25 R20, X.25 R23, X.25 T22

X.25 R23

Description: Determines the limit for Clear-Request Retries-that is, the number of times the MAX sends a Clear-Request before waiting indefinitely for a response.

The DTE can send a Clear-Request packet to refuse an incoming call, or to clear a call once the data exchange is complete. The DCE accomplishes the same task by using a Clear-Indication packet. Once the DTE or DCE receives a Clear-Confirmation packet, the call is cleared and the logical channel is available for other calls.

Usage: Specify a number between 0 and 255. The default is 0 (zero).

Dependencies: The value you specify is not meaningful if X.25 T23=0.

Location: Ethernet > X.25

See Also: X.25 R20, X.25 R22, X.25 T23

X.25 Reset/Diag

Description: Specifies whether Reset-Request packets include the diagnostic field. At the packet layer, a Reset-Request packet resets the packet sequence number for the logical channel to 0 (zero), and removes any outstanding data and Interrupt packets from the virtual circuit. Once the sending device receives a Reset-Confirmation packet, it can send data on the logical channel.

A Reset-Request packet has a required Cause field and an optional Diagnostic field. If the Cause field indicates that the remote DTE did not request the reset, the diagnostic field has standard values. If the Cause field indicates that the remote DTE requested the reset, the diagnostic field contains information specified in the Cause field by the remote DTE.

Usage: Specify Yes or No. No is the default.

Location: Ethernet > X.25

See Also: X.25 Clear/Diag, X.25 Restart/Diag

X.25 Restart/Diag

Description: Specifies whether Restart-Request packets include the diagnostic field. At the packet layer, a Restart-Request packet clears all virtual circuits. When the sending device receives a Restart-Confirmation packet, it can again issue a call to establish a virtual circuit.

A Restart-Request packet has a required Cause field and an optional Diagnostic field. If the Cause field indicates that the remote DTE did not request the restart, the diagnostic field has standard values. If the Cause field indicates that the remote DTE requested the restart, the diagnostic field contains information specified in the Cause field by the remote DTE.

Usage: Specify Yes or No. No is the default.

Location: Ethernet > X.25

See Also: X.25 Clear/Diag, X.25 Reset/Diag

X.25 Seq Number Mode

Description: Specifies whether the MAX uses modulo 8 or modulo 128 sequence number mode. At the frame level, X.25 allows a sender to transmit a certain number of frames before requiring an acknowledgment of the first frame. The protocol increments a sequence number in the frame header, and places the value into the next outgoing frame. The sequence number identifies each frame that has not yet been acknowledged.

Usage: Specify one of the following values:

Example: X.25 Seq Number Mode=NORMAL

Location: Ethernet > X.25

X.25 T20

Description: Determines the duration of the Restart timer-that is, the number of ten-second ticks the MAX waits before retransmitting a Restart-Request packet. At the packet layer, a Restart-Request packet clears all virtual circuits. When the sending device receives a Restart- Confirmation packet, it can again issue a call to establish a virtual circuit.

Usage: Specify a number between 0 and 255. The default is 0 (zero). This default setting disables the timer.

Location: Ethernet > X.25

See Also: X.25 R20, X.25 T21, X.25 T22, X.25 T23

X.25 T21

Description: Determines the duration of the Call-Request timer-that is, the number of ten- second ticks the MAX waits before clearing an outgoing call that has not been accepted. When a device makes an outgoing call, it sends a Call-Request packet. If the remote DTE accepts the call, it sends back a Call-Connected Packet; if the DTE refuses the call, it sends back a Clear- Request packet.

Usage: Specify a number between 0 and 255. The default is 0 (zero). This default setting disables the timer.

Location: Ethernet > X.25

See Also: X.25R21, X.25 T20, X.25 T22, X.25 T23

X.25 T22

Description: Determines the duration of the Reset-Request timer-that is, the number of ten- second ticks the MAX waits before retransmitting a Reset-Request packet. At the packet layer, a Reset-Request packet resets the packet sequence number for the logical channel to 0 (zero), and removes any outstanding data and Interrupt packets from the virtual circuit. Once the sending device receives a Reset-Confirmation packet, it can send data on the logical channel.

Usage: Specify a number between 0 and 255. The default is 0 (zero). This default setting disables the timer.

Location: Ethernet > X.25

See Also: X.25 R22, X.25 T20, X.25 T21, X.25 T23

X.25 T23

Description: Determines the duration of the Clear-Request timer-that is, the number of ten- second the MAX waits before retransmitting a Clear-Request packet. When a device makes an outgoing call, it sends a Call-Request packet. If the remote DTE accepts the call, it sends back a Call-Connected Packet; if the DTE refuses the call, it sends back a Clear-Request packet.

Usage: Specify a number between 0 and 255. The default is 0 (zero). This default setting disables the timer.

Location: Ethernet > X.25

See Also: X.25 R23, X.25 T20, X.25 T21, X.25 T22

X.25 window size

Description: Specifies the maximum number of data packets that can be outstanding between a DTE and a DCE before acknowledgment is required.

Usage: Specify a number between 1 and 7. The default is 7.

Dependencies: The value you specify applies to all of the user's virtual circuits. However, the user can use the FACILITIES command at the PAD prompt to alter the window size on a per- call basis.

Location: Ethernet > X.25

See Also: X.25 Default Packet Size, X.25 Max Packet Size, X.25 Min Packet Size

X25/PAD

Description: Specifies whether the MAX accepts incoming X.25/PAD calls.

Usage: Specify Yes or No. Yes is the default.

Location: Ethernet > Answer > Encaps

See Also: Encaps

X.3 Custom

Description: This parameter specifies a string containing X.3 profile parameters. The Ascend unit parses this string into X.3 profile parameters when an operator uses the PAD.

Usage: Specify a string using this format:

X.3 Custom=[ref:]val,[ref:]val, ... ,[ref:]val
where:

ref is the number of an X.3 parameter as defined in the ITU X.3 specification. You can specify a value between 1 and 22. By default, ref starts at 1 and is incremented by 1 after each comma. Unless you wish to specify fewer X.3 parameters than the maximum, you do not need to enter a value for ref.

val is the value associated with the X.3 parameter.

The Ascend unit silently ignores invalid parameters.

You can enter up to 64 characters for the entire X.3 Custom specification. By default, the X.3 Custom parameter contains the X.3 parameter values set in the CRT profile.

Dependencies: The X.3 Custom parameter does not apply if X.3 Param Prof is not set to CUSTOM.

Location: Answer profile: Ethernet > Answer > X.25 Options
Connection profile: Ethernet > Connections > Any Connection profile > Encaps Options

See Also: X.3 Param Prof

X.3 Param Prof

Description: Specifies the default X.3 profile for setting up the PAD for this connection. Note that a user can specify a profile using a PAD command. In this case the profile specified on the command line overrides this default for the length of the current session.

Usage: Specify one of the following values:

Dependencies: This parameter applies only to X.25/PAD connections.

Location: Ethernet > Connections > Encaps Options

X.75

Description: Specifies whether the MAX accepts incoming calls that use X.75 encapsulation.

Usage: Specify Yes or No. Yes is the default.

Location: Ethernet > Answer > Encaps

See Also: Frame Length, K Window Size, N2 Retransmission Count, T1 Retransmission Timer

Z

Zone Name #n

Description: Specifies the name of the AppleTalk zone to which the MAX is connected. If the local Ethernet network supports an AppleTalk router with configured zones, you can place the MAX in one of those zones.

A zone is a multicast address containing an arbitrary subset of the AppleTalk nodes in an internet. Each node belongs to only one zone, but a particular extended network can contain nodes belonging to any number of zones. Zones provide departmental or other groupings of network entities that a user can easily understand. If the MAX is an AppleTalk router, it brings up the line when it receives packets addressed to the network number (defined by Net Start and Net End) or zone name specified for the remote connection, and routes packets to the appropriate network or zone.

Usage: Specify the name of a zone that has been configured on the local Ethernet network. Enter up to 33 alphanumeric characters.

If you do not specify a name and AppleTalk=Yes, the MAX acquires its zone(s) from the seed router on the network, including the default zone.

In an Ascend AppleTalk router, zone names are not case sensitive. However, some routers regard zone names as case sensitive, and you should be consistent in spelling zone names when you configure multiple connections or routers. Although AppleTalk permits the use of spaces in zone names, it does not consider an underscore to be the same as a space. Since some routers do equate the underscore and the space, or do not recognize a space as a valid character, it is advisable to use only the underscore in a network with routers other than Ascend routers.

Example: Default Zone=SALES
Zone Name #1=MKTG
Zone Name #2=ENGINEERING
Zone Name #3=ADMIN
Zone Name #4=BRANCH

Dependencies: If AppleTalk is disabled, the Zone Name parameter does not apply.

Location: Ethernet > Mod Config > AppleTalk

See Also: Default Zone, AppleTalk, Route AppleTalk, Net Start, Net End, AppleTalk Router



[Top][Contents][Prev][Next][Last]Search

techpubs@eng.ascend.com

Copyright © 1998, Ascend Communications, Inc. All rights reserved.
